SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.57 | 318.12 | 73.53 | 226.80 | -16.55 | 249.90 | 39.88 | 238.82 | 0.7185 | -144.5 | -78.6 | |
|
previous
or next observation for the same group /

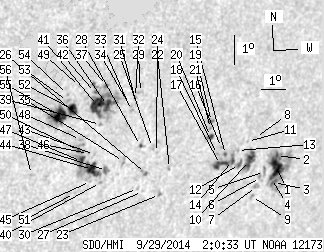

back to the solar disc SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.20 | 62.81 | 11.11 | 49.21 | -17.70 | 254.94 | 44.92 | 240.40 | 0.7760 | 686.1 | 160.5 | |
| 0.97 | -1.00 | 0.75 | -1.00 | -17.30 | 254.82 | 44.80 | 240.81 | 0.7729 | 772.6 | 999999 | |
| 3.00 | -1.00 | 2.36 | -1.00 | -18.20 | 254.97 | 44.95 | 239.84 | 0.7785 | 442.4 | 999999 | |
| 0.26 | -1.00 | 0.21 | -1.00 | -18.05 | 254.83 | 44.81 | 239.94 | 0.7765 | 682.0 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.98 | -17.79 | 254.43 | 44.42 | 240.04 | 0.7715 | 703.0 | 590.2 | |
| 0.00 | 3.18 | 0.00 | 2.46 | -17.98 | 254.32 | 44.30 | 239.76 | 0.7713 | 560.0 | 537.8 | |
| 0.00 | 3.00 | 0.00 | 2.33 | -18.26 | 254.23 | 44.21 | 239.37 | 0.7718 | 556.0 | 491.5 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -16.62 | 253.69 | 43.67 | 241.03 | 0.7586 | 507.0 | 440.1 | |
| 0.00 | 2.03 | 0.00 | 1.58 | -18.58 | 254.11 | 44.10 | 238.94 | 0.7723 | 553.0 | 458.6 | |
| 9.62 | 17.11 | 7.32 | 13.03 | -17.36 | 253.64 | 43.63 | 240.12 | 0.7618 | 773.4 | 525.8 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -16.72 | 253.37 | 43.35 | 240.74 | 0.7559 | 519.0 | 504.1 | |
| 1.68 | 4.41 | 1.27 | 3.34 | -17.46 | 253.24 | 43.22 | 239.78 | 0.7583 | 653.6 | 559.5 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -16.98 | 253.01 | 42.99 | 240.23 | 0.7537 | 459.0 | 550.4 | |
| 1.76 | 16.23 | 1.33 | 12.13 | -17.30 | 252.89 | 42.87 | 239.78 | 0.7540 | 761.9 | 632.9 | |
| 0.71 | 1.68 | 0.53 | 1.25 | -17.07 | 252.52 | 42.50 | 239.85 | 0.7493 | 866.2 | 763.1 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -16.82 | 252.28 | 42.26 | 240.01 | 0.7456 | 771.0 | 658.2 | |
| 6.70 | -14.00 | 5.00 | -14.00 | -17.38 | 252.40 | 42.38 | 239.40 | 0.7496 | 780.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.98 | -17.04 | 252.17 | 42.15 | 239.69 | 0.7456 | 729.0 | 647.1 | |
| 0.88 | 2.38 | 0.64 | 1.73 | -15.92 | 251.62 | 41.60 | 240.73 | 0.7343 | 758.7 | 637.0 | |
| 2.21 | 3.88 | 1.61 | 2.84 | -16.41 | 251.71 | 41.69 | 240.18 | 0.7377 | 748.4 | 635.3 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -16.15 | 251.64 | 41.62 | 240.46 | 0.7356 | 753.0 | 632.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -17.33 | 250.24 | 40.22 | 238.18 | 0.7277 | -423.0 | -274.6 | |
| 0.00 | 1.68 | 0.00 | 1.21 | -18.17 | 250.05 | 40.03 | 237.05 | 0.7306 | -400.0 | -364.6 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -16.76 | 249.56 | 39.54 | 238.47 | 0.7175 | -163.0 | -156.8 | |
| 0.00 | 2.56 | 0.00 | 1.80 | -16.58 | 249.35 | 39.33 | 238.56 | 0.7143 | -311.0 | -188.7 | |
| 0.53 | 2.73 | 0.38 | 1.94 | -17.42 | 249.27 | 39.26 | 237.47 | 0.7184 | -557.7 | -526.6 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -18.01 | 249.31 | 39.29 | 236.77 | 0.7222 | -404.0 | -323.3 | |
| 0.53 | 1.68 | 0.37 | 1.17 | -16.47 | 248.84 | 38.82 | 238.37 | 0.7084 | -490.2 | -433.6 | |
| 0.00 | 2.47 | 0.00 | 1.69 | -14.73 | 248.45 | 38.43 | 240.33 | 0.6942 | -354.0 | -312.5 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -17.90 | 249.07 | 39.05 | 236.76 | 0.7192 | -278.0 | -296.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -15.08 | 248.36 | 38.35 | 239.83 | 0.6952 | -264.0 | -181.0 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -14.88 | 248.28 | 38.26 | 240.03 | 0.6932 | -379.0 | -276.8 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -15.29 | 248.21 | 38.19 | 239.46 | 0.6948 | -519.0 | -432.7 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -15.16 | 248.14 | 38.12 | 239.58 | 0.6933 | -589.0 | -480.9 | |
| 0.00 | 2.56 | 0.00 | 1.78 | -16.95 | 248.27 | 38.25 | 237.40 | 0.7053 | -493.0 | -412.2 | |
| 5.82 | 67.93 | 3.94 | 45.78 | -15.05 | 247.21 | 37.20 | 239.11 | 0.6826 | -620.1 | -197.7 | |
| 0.53 | -36.00 | 0.36 | -36.00 | -14.40 | 247.04 | 37.03 | 239.85 | 0.6768 | -553.2 | 999999 | |
| 0.00 | 4.06 | 0.00 | 2.81 | -17.19 | 247.65 | 37.63 | 236.68 | 0.7003 | -616.0 | -510.6 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -15.65 | 247.06 | 37.05 | 238.23 | 0.6847 | -476.0 | -388.6 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -17.57 | 247.50 | 37.48 | 236.11 | 0.7012 | -394.0 | -338.8 | |
| 15.70 | -36.00 | 10.56 | -36.00 | -15.02 | 246.82 | 36.80 | 238.88 | 0.6781 | -717.2 | 999999 | |
| 0.53 | -36.00 | 0.35 | -36.00 | -14.59 | 246.65 | 36.64 | 239.33 | 0.6737 | -627.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -16.63 | 247.04 | 37.02 | 236.98 | 0.6904 | -469.0 | -387.1 | |
| 10.41 | 46.32 | 7.14 | 31.57 | -17.12 | 247.07 | 37.06 | 236.38 | 0.6939 | -769.2 | -524.4 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -17.51 | 247.09 | 37.07 | 235.90 | 0.6965 | -509.0 | -434.0 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -16.57 | 246.79 | 36.78 | 236.87 | 0.6875 | -684.0 | -560.8 | |
| 4.23 | -44.00 | 2.88 | -44.00 | -16.82 | 246.57 | 36.56 | 236.41 | 0.6867 | -821.0 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.25 | -16.09 | 246.37 | 36.36 | 237.20 | 0.6800 | -863.0 | -709.6 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -14.35 | 245.99 | 35.97 | 239.20 | 0.6648 | -527.0 | -390.8 | |
| 1.06 | -44.00 | 0.72 | -44.00 | -16.44 | 246.37 | 36.36 | 236.74 | 0.6822 | -855.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -17.86 | 246.54 | 36.52 | 235.08 | 0.6932 | -433.0 | -348.1 | |
| 7.15 | 40.05 | 4.74 | 26.47 | -15.08 | 245.86 | 35.84 | 238.14 | 0.6680 | -761.3 | -564.9 | |
| 0.00 | 2.65 | 0.00 | 1.75 | -14.80 | 245.61 | 35.60 | 238.33 | 0.6635 | -736.0 | -513.9 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -14.58 | 245.57 | 35.55 | 238.60 | 0.6616 | -554.0 | -485.9 | |
| 15.09 | -52.00 | 9.96 | -52.00 | -15.24 | 245.39 | 35.37 | 237.60 | 0.6639 | -942.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -17.10 | 244.70 | 34.68 | 234.68 | 0.6689 | -639.0 | -538.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
