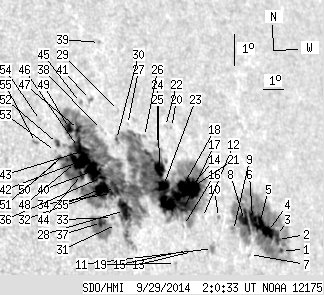

SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.66 | 1131.33 | 193.43 | 889.47 | 15.26 | 261.08 | 51.07 | 284.23 | 0.7755 | 1.0 | -117.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.50 | 231.40 | 1.33 | 201.44 | 12.89 | 266.73 | 56.71 | 280.97 | 0.8322 | -519.8 | -251.9 | |
| 2.21 | -1.00 | 1.95 | -1.00 | 13.24 | 266.63 | 56.61 | 281.39 | 0.8313 | -436.2 | 999999 | |
| 0.26 | -1.00 | 0.23 | -1.00 | 13.35 | 266.67 | 56.66 | 281.53 | 0.8317 | -409.0 | 999999 | |
| 11.29 | -1.00 | 9.90 | -1.00 | 13.53 | 266.17 | 56.16 | 281.75 | 0.8270 | -713.6 | 999999 | |
| 10.15 | -1.00 | 8.81 | -1.00 | 13.81 | 265.83 | 55.81 | 282.09 | 0.8237 | -668.0 | 999999 | |
| 7.59 | -1.00 | 6.55 | -1.00 | 14.02 | 265.52 | 55.50 | 282.36 | 0.8208 | -766.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 12.94 | 264.98 | 54.96 | 281.05 | 0.8153 | -459.0 | -410.6 | |
| 13.06 | -1.00 | 11.14 | -1.00 | 13.97 | 265.07 | 55.05 | 282.32 | 0.8163 | -871.8 | 999999 | |
| 0.00 | 3.97 | 0.00 | 3.33 | 13.73 | 264.39 | 54.37 | 282.04 | 0.8096 | -589.0 | -536.6 | |
| 0.00 | 1.24 | 0.00 | 1.02 | 14.19 | 263.75 | 53.73 | 282.64 | 0.8033 | -741.0 | -648.8 | |
| 0.00 | 6.26 | 0.00 | 5.11 | 13.30 | 263.14 | 53.12 | 281.54 | 0.7968 | -600.0 | -316.0 | |
| 0.00 | 1.06 | 0.00 | 0.86 | 14.27 | 262.94 | 52.92 | 282.77 | 0.7951 | -546.0 | -534.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 13.30 | 262.12 | 52.10 | 281.58 | 0.7862 | 306.0 | 293.2 | |
| 30.44 | 820.11 | 24.57 | 627.45 | 15.20 | 262.54 | 52.53 | 283.97 | 0.7915 | -927.8 | -110.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 13.35 | 261.88 | 51.86 | 281.66 | 0.7837 | 439.0 | 346.0 | |
| 0.00 | 1.24 | 0.00 | 0.98 | 14.12 | 261.92 | 51.90 | 282.63 | 0.7844 | 208.0 | 151.4 | |
| 1.15 | -14.00 | 0.91 | -14.00 | 14.57 | 262.02 | 52.00 | 283.20 | 0.7857 | -23.9 | 999999 | |
| 6.79 | -14.00 | 5.40 | -14.00 | 15.04 | 261.93 | 51.91 | 283.81 | 0.7850 | -1234.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.76 | 13.02 | 261.18 | 51.17 | 281.26 | 0.7761 | 494.0 | 426.6 | |
| 0.00 | 0.53 | 0.00 | 0.43 | 17.09 | 262.39 | 52.37 | 286.38 | 0.7913 | -530.0 | -451.8 | |
| 16.59 | -14.00 | 13.04 | -14.00 | 14.84 | 261.36 | 51.34 | 283.60 | 0.7788 | 190.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.13 | 17.15 | 262.10 | 52.09 | 286.48 | 0.7884 | -447.0 | -407.2 | |
| 9.79 | -14.00 | 7.71 | -14.00 | 15.40 | 261.35 | 51.33 | 284.31 | 0.7791 | -1061.8 | 999999 | |
| 11.91 | -14.00 | 9.37 | -14.00 | 15.92 | 261.33 | 51.31 | 284.99 | 0.7793 | -884.8 | 999999 | |
| 0.44 | 2.47 | 0.35 | 1.95 | 16.65 | 261.50 | 51.48 | 285.90 | 0.7817 | -533.0 | -492.0 | |
| 0.00 | 1.32 | 0.00 | 1.04 | 16.95 | 260.96 | 50.94 | 286.34 | 0.7763 | -409.0 | -392.0 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 17.38 | 260.27 | 50.26 | 286.98 | 0.7696 | -414.0 | -404.7 | |
| 17.82 | -14.00 | 13.44 | -14.00 | 14.82 | 259.25 | 49.23 | 283.73 | 0.7560 | 670.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 17.84 | 260.01 | 49.99 | 287.61 | 0.7672 | 393.0 | 308.0 | |
| 0.79 | -14.00 | 0.60 | -14.00 | 16.98 | 259.58 | 49.57 | 286.54 | 0.7617 | 90.0 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.78 | 14.43 | 258.75 | 48.73 | 283.26 | 0.7502 | 223.0 | 245.4 | |
| 6.18 | -14.00 | 4.64 | -14.00 | 15.54 | 259.05 | 49.03 | 284.71 | 0.7544 | 313.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.25 | 14.66 | 258.63 | 48.61 | 283.58 | 0.7490 | 686.0 | 552.7 | |
| 0.79 | -14.00 | 0.59 | -14.00 | 15.38 | 258.80 | 48.79 | 284.52 | 0.7515 | 681.7 | 999999 | |
| 13.59 | -14.00 | 10.09 | -14.00 | 15.57 | 258.39 | 48.37 | 284.82 | 0.7471 | 898.4 | 999999 | |
| 3.00 | -14.00 | 2.23 | -14.00 | 15.90 | 258.50 | 48.48 | 285.25 | 0.7486 | 588.7 | 999999 | |
| 5.21 | 35.99 | 3.84 | 26.49 | 14.55 | 258.08 | 48.06 | 283.48 | 0.7427 | 953.8 | 502.5 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 17.34 | 258.99 | 48.97 | 287.09 | 0.7557 | 300.0 | 182.6 | |
| 0.00 | 1.24 | 0.00 | 0.95 | 19.97 | 259.94 | 49.92 | 290.38 | 0.7695 | 578.0 | 462.1 | |
| 21.17 | -14.00 | 15.67 | -14.00 | 16.14 | 258.20 | 48.18 | 285.61 | 0.7456 | 794.2 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.73 | 18.29 | 258.81 | 48.79 | 288.37 | 0.7550 | 454.0 | 356.9 | |
| 13.59 | -14.00 | 10.01 | -14.00 | 16.51 | 257.89 | 47.88 | 286.13 | 0.7426 | 846.2 | 999999 | |
| 4.15 | -14.00 | 3.06 | -14.00 | 16.78 | 257.98 | 47.97 | 286.48 | 0.7439 | 377.4 | 999999 | |
| 3.97 | -14.00 | 2.91 | -14.00 | 16.07 | 257.61 | 47.59 | 285.58 | 0.7389 | 989.1 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.38 | 18.24 | 258.31 | 48.30 | 288.38 | 0.7495 | 562.0 | 451.0 | |
| 8.91 | -14.00 | 6.55 | -14.00 | 16.89 | 257.74 | 47.72 | 286.67 | 0.7414 | 755.9 | 999999 | |
| 4.59 | -14.00 | 3.39 | -14.00 | 17.43 | 257.93 | 47.91 | 287.37 | 0.7441 | 611.7 | 999999 | |
| 10.32 | -14.00 | 7.55 | -14.00 | 16.45 | 257.45 | 47.44 | 286.12 | 0.7376 | 1091.8 | 999999 | |
| 6.88 | -14.00 | 5.05 | -14.00 | 17.50 | 257.53 | 47.51 | 287.52 | 0.7398 | 829.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 16.77 | 257.05 | 47.03 | 286.60 | 0.7334 | 632.0 | 604.3 | |
| 1.41 | -14.00 | 1.02 | -14.00 | 16.63 | 256.82 | 46.80 | 286.45 | 0.7306 | 878.0 | 999999 | |
| 2.12 | 3.97 | 1.53 | 2.87 | 17.09 | 256.83 | 46.81 | 287.08 | 0.7314 | 803.7 | 616.0 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 16.86 | 256.66 | 46.65 | 286.79 | 0.7292 | 747.0 | 689.5 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 17.85 | 256.30 | 46.29 | 288.20 | 0.7265 | 601.0 | 510.1 | |
| 0.00 | 2.38 | 0.00 | 1.70 | 17.21 | 255.86 | 45.84 | 287.39 | 0.7205 | 766.0 | 662.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
