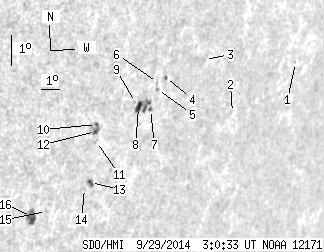

SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.29 | 49.50 | 6.95 | 41.25 | -12.33 | 259.66 | 50.19 | 249.06 | 0.8054 | 17.1 | -93.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.65 | -10.79 | 269.32 | 59.85 | 253.95 | 0.8858 | 277.0 | 228.3 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -12.01 | 266.02 | 56.55 | 251.66 | 0.8619 | 382.0 | 369.8 | |
| 0.00 | 1.06 | 0.00 | 0.96 | -10.14 | 263.96 | 54.49 | 253.15 | 0.8394 | -320.0 | -329.4 | |
| 0.00 | 1.50 | 0.00 | 1.30 | -10.51 | 262.04 | 52.57 | 252.10 | 0.8226 | 323.0 | 306.2 | |
| 0.00 | 1.15 | 0.00 | 0.99 | -10.86 | 261.72 | 52.25 | 251.59 | 0.8206 | 510.0 | 437.0 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -10.63 | 261.66 | 52.19 | 251.84 | 0.8194 | 502.0 | 403.0 | |
| 0.79 | 1.94 | 0.68 | 1.67 | -11.46 | 261.52 | 52.05 | 250.82 | 0.8205 | 321.9 | 232.7 | |
| 3.88 | 13.32 | 3.30 | 11.36 | -11.34 | 260.89 | 51.42 | 250.74 | 0.8142 | 716.9 | 590.5 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -11.16 | 260.70 | 51.23 | 250.88 | 0.8118 | 711.0 | 557.6 | |
| 0.53 | 8.38 | 0.43 | 6.83 | -11.69 | 258.94 | 49.48 | 249.61 | 0.7964 | -578.5 | -427.1 | |
| 0.00 | 1.59 | 0.00 | 1.30 | -12.23 | 259.08 | 49.61 | 249.01 | 0.7995 | -319.0 | -282.2 | |
| 1.41 | -10.00 | 1.15 | -10.00 | -11.91 | 258.95 | 49.48 | 249.35 | 0.7972 | -617.4 | 999999 | |
| 1.68 | 3.44 | 1.39 | 2.86 | -13.54 | 259.14 | 49.68 | 247.49 | 0.8046 | -629.8 | -500.9 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -13.71 | 258.90 | 49.44 | 247.20 | 0.8029 | -708.0 | -572.6 | |
| 0.00 | 1.50 | 0.00 | 1.20 | -14.29 | 257.28 | 47.81 | 245.82 | 0.7893 | -451.0 | -410.2 | |
| 0.00 | 11.38 | 0.00 | 9.03 | -14.39 | 256.62 | 47.15 | 245.41 | 0.7832 | -755.0 | -597.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
