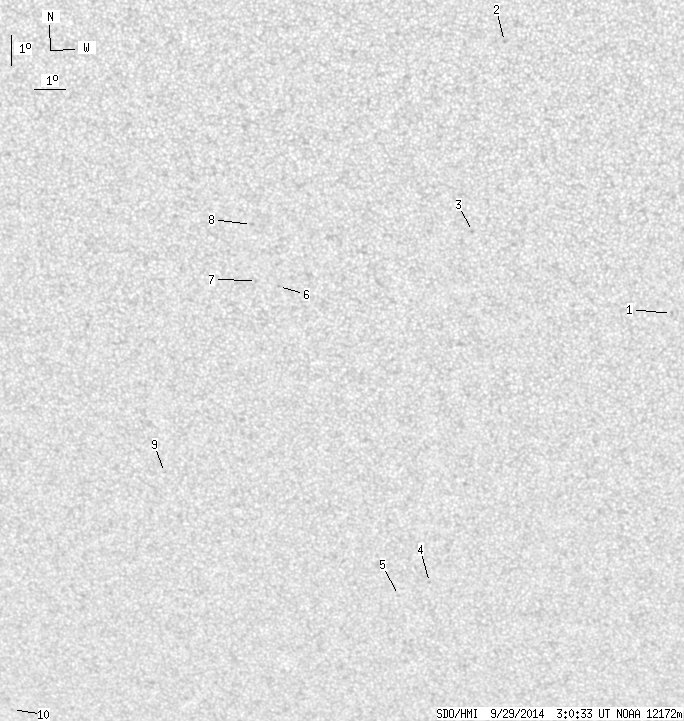

SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.64 | 0.00 | 6.52 | -19.48 | 204.71 | -4.76 | 171.19 | 0.4567 | -152.7 | -103.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.01 | -17.63 | 214.79 | 5.32 | 192.06 | 0.4245 | 654.0 | 587.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.88 | 209.52 | 0.06 | 180.21 | 0.2718 | -936.0 | -738.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.91 | 208.52 | -0.94 | 177.54 | 0.3722 | 748.0 | 595.4 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -26.86 | 206.98 | -2.49 | 176.01 | 0.5580 | 645.0 | 473.4 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -27.34 | 205.92 | -3.55 | 174.41 | 0.5661 | 624.0 | 517.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.75 | 202.41 | -7.06 | 163.57 | 0.4177 | -811.0 | -621.3 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -16.56 | 201.72 | -7.75 | 161.92 | 0.4181 | -505.0 | -478.3 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -14.74 | 201.64 | -7.83 | 160.22 | 0.3911 | -823.0 | -636.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -23.09 | 198.34 | -11.13 | 160.32 | 0.5294 | -605.0 | -525.6 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -31.92 | 191.80 | -17.67 | 157.47 | 0.6747 | -518.0 | -437.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
