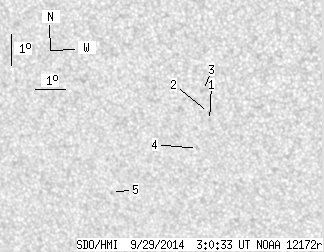

SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.06 | 0.00 | 4.04 | -13.06 | 187.02 | -22.45 | 131.69 | 0.4999 | 323.4 | 239.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.65 | -12.95 | 187.70 | -21.77 | 132.40 | 0.4914 | 733.0 | 580.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.70 | 187.69 | -21.78 | 132.00 | 0.4890 | 719.0 | 530.2 | |
| 0.00 | 2.91 | 0.00 | 1.65 | -12.00 | 187.59 | -21.88 | 130.77 | 0.4833 | 243.0 | 252.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -13.87 | 187.21 | -22.26 | 133.15 | 0.5061 | 603.0 | 442.2 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -15.44 | 184.10 | -25.37 | 131.69 | 0.5551 | -681.0 | -574.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
