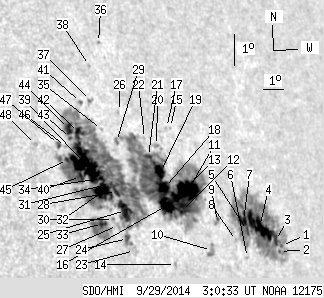

SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 255.32 | 1110.41 | 201.47 | 882.34 | 15.26 | 261.01 | 51.54 | 284.20 | 0.7805 | 16.2 | -134.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 223.31 | 0.64 | 196.87 | 13.07 | 266.88 | 57.41 | 281.18 | 0.8387 | -318.0 | -271.5 | |
| 0.79 | -1.00 | 0.71 | -1.00 | 12.90 | 266.70 | 57.23 | 280.98 | 0.8371 | -512.7 | 999999 | |
| 3.88 | -1.00 | 3.49 | -1.00 | 13.25 | 266.60 | 57.13 | 281.40 | 0.8361 | -399.7 | 999999 | |
| 30.79 | -1.00 | 27.17 | -1.00 | 13.75 | 265.88 | 56.41 | 282.01 | 0.8294 | -705.1 | 999999 | |
| 2.56 | -1.00 | 2.22 | -1.00 | 13.69 | 265.19 | 55.72 | 281.96 | 0.8228 | -864.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.06 | 12.89 | 264.91 | 55.44 | 280.99 | 0.8199 | -527.0 | -388.9 | |
| 7.94 | -1.00 | 6.86 | -1.00 | 14.01 | 265.08 | 55.61 | 282.35 | 0.8218 | -901.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.28 | 13.45 | 264.50 | 55.03 | 281.68 | 0.8160 | -387.0 | -335.0 | |
| 0.00 | 3.18 | 0.00 | 2.66 | 14.11 | 263.71 | 54.24 | 282.52 | 0.8084 | -703.0 | -582.3 | |
| 0.00 | 7.15 | 0.00 | 5.90 | 13.28 | 263.11 | 53.64 | 281.51 | 0.8021 | -409.0 | -282.0 | |
| 29.20 | 809.78 | 23.85 | 626.17 | 15.18 | 262.51 | 53.04 | 283.91 | 0.7967 | -959.2 | -132.0 | |
| 1.50 | -11.00 | 1.21 | -11.00 | 14.58 | 261.99 | 52.52 | 283.19 | 0.7911 | -115.2 | 999999 | |
| 7.32 | -11.00 | 5.89 | -11.00 | 15.02 | 261.88 | 52.42 | 283.76 | 0.7902 | -1224.4 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.61 | 13.03 | 261.19 | 51.72 | 281.25 | 0.7820 | 456.0 | 352.6 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 17.14 | 262.38 | 52.91 | 286.38 | 0.7968 | -447.0 | -406.8 | |
| 14.03 | -11.00 | 11.15 | -11.00 | 14.83 | 261.31 | 51.84 | 283.55 | 0.7841 | 292.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 17.16 | 262.18 | 52.71 | 286.43 | 0.7948 | -506.0 | -457.1 | |
| 9.62 | -11.00 | 7.66 | -11.00 | 15.37 | 261.40 | 51.93 | 284.24 | 0.7854 | -1137.8 | 999999 | |
| 11.29 | -11.00 | 8.99 | -11.00 | 15.87 | 261.37 | 51.90 | 284.87 | 0.7855 | -884.7 | 999999 | |
| 0.00 | 2.65 | 0.00 | 2.11 | 16.66 | 261.47 | 52.00 | 285.87 | 0.7871 | -599.0 | -529.1 | |
| 2.91 | -11.00 | 2.30 | -11.00 | 16.37 | 260.95 | 51.48 | 285.55 | 0.7815 | -742.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 16.93 | 260.96 | 51.49 | 286.26 | 0.7820 | -453.0 | -380.6 | |
| 0.00 | 4.15 | 0.00 | 3.16 | 13.63 | 259.35 | 49.88 | 282.12 | 0.7624 | 384.0 | 361.6 | |
| 2.29 | -11.00 | 1.74 | -11.00 | 14.01 | 259.13 | 49.66 | 282.64 | 0.7602 | 618.3 | 999999 | |
| 16.59 | -11.00 | 12.65 | -11.00 | 14.86 | 259.29 | 49.82 | 283.74 | 0.7625 | 656.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.55 | 17.85 | 260.06 | 50.59 | 287.55 | 0.7736 | 300.0 | 329.5 | |
| 0.00 | 3.71 | 0.00 | 2.80 | 14.44 | 258.78 | 49.31 | 283.23 | 0.7566 | 187.0 | 247.5 | |
| 4.50 | -11.00 | 3.42 | -11.00 | 15.46 | 259.05 | 49.58 | 284.56 | 0.7604 | 314.5 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.97 | 16.96 | 259.57 | 50.10 | 286.46 | 0.7675 | 270.0 | 193.8 | |
| 0.00 | 1.24 | 0.00 | 0.93 | 14.64 | 258.64 | 49.18 | 283.50 | 0.7553 | 736.0 | 623.6 | |
| 1.32 | -11.00 | 1.00 | -11.00 | 15.73 | 258.85 | 49.38 | 284.92 | 0.7584 | 204.9 | 999999 | |
| 21.44 | -11.00 | 16.09 | -11.00 | 15.52 | 258.40 | 48.93 | 284.70 | 0.7533 | 859.8 | 999999 | |
| 4.59 | 31.76 | 3.42 | 23.60 | 14.57 | 258.10 | 48.63 | 283.45 | 0.7491 | 940.3 | 576.2 | |
| 3.53 | -11.00 | 2.65 | -11.00 | 15.92 | 258.48 | 49.01 | 285.21 | 0.7545 | 537.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.74 | 17.38 | 258.99 | 49.52 | 287.08 | 0.7617 | 216.0 | 183.5 | |
| 0.00 | 1.06 | 0.00 | 0.83 | 20.01 | 259.92 | 50.45 | 290.35 | 0.7750 | 492.0 | 415.6 | |
| 0.00 | 1.76 | 0.00 | 1.34 | 18.30 | 258.80 | 49.34 | 288.31 | 0.7609 | 367.0 | 233.0 | |
| 0.00 | 1.15 | 0.00 | 0.88 | 19.36 | 259.18 | 49.71 | 289.63 | 0.7664 | 462.0 | 353.8 | |
| 54.44 | -11.00 | 40.51 | -11.00 | 16.43 | 257.89 | 48.42 | 285.96 | 0.7485 | 829.8 | 999999 | |
| 4.06 | -11.00 | 3.00 | -11.00 | 16.06 | 257.53 | 48.06 | 285.51 | 0.7442 | 998.4 | 999999 | |
| 0.53 | 1.68 | 0.40 | 1.26 | 18.28 | 258.31 | 48.84 | 288.36 | 0.7556 | 501.2 | 423.7 | |
| 7.85 | -11.00 | 5.86 | -11.00 | 17.39 | 257.89 | 48.42 | 287.24 | 0.7497 | 555.2 | 999999 | |
| 0.97 | -11.00 | 0.72 | -11.00 | 17.24 | 257.45 | 47.99 | 287.10 | 0.7447 | 792.1 | 999999 | |
| 7.32 | -11.00 | 5.42 | -11.00 | 17.55 | 257.47 | 48.00 | 287.51 | 0.7453 | 844.0 | 999999 | |
| 1.76 | -11.00 | 1.29 | -11.00 | 16.62 | 257.10 | 47.63 | 286.32 | 0.7400 | 848.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 17.02 | 257.14 | 47.67 | 286.85 | 0.7410 | 726.0 | 627.4 | |
| 1.59 | 3.35 | 1.16 | 2.45 | 17.11 | 256.84 | 47.38 | 287.01 | 0.7378 | 787.9 | 666.7 | |
| 0.00 | 1.76 | 0.00 | 1.27 | 17.20 | 255.81 | 46.34 | 287.30 | 0.7262 | 739.0 | 621.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
