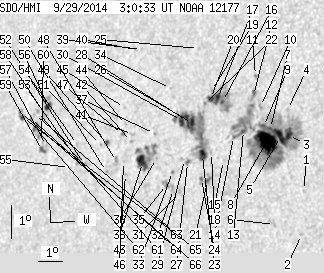

SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.55 | 474.57 | 72.59 | 311.10 | 12.10 | 168.36 | -41.10 | 79.31 | 0.6556 | -0.4 | 81.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | 10.76 | 172.39 | -37.08 | 81.14 | 0.6017 | -635.0 | -520.2 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 9.44 | 172.49 | -36.98 | 83.34 | 0.5997 | -659.0 | -483.3 | |
| 6.09 | 223.13 | 3.81 | 141.20 | 12.37 | 171.55 | -37.91 | 78.58 | 0.6146 | -1101.9 | -304.8 | |
| 0.00 | 1.32 | 0.00 | 0.83 | 13.15 | 171.38 | -38.09 | 77.35 | 0.6179 | -300.0 | -267.4 | |
| 9.35 | -3.00 | 5.88 | -3.00 | 12.32 | 171.25 | -38.22 | 78.71 | 0.6186 | -979.8 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.88 | 9.67 | 171.42 | -38.05 | 83.01 | 0.6144 | -492.0 | -332.8 | |
| 0.26 | -3.00 | 0.17 | -3.00 | 12.53 | 170.82 | -38.65 | 78.42 | 0.6246 | -679.7 | 999999 | |
| 32.56 | -3.00 | 20.62 | -3.00 | 12.13 | 170.73 | -38.74 | 79.07 | 0.6253 | -983.1 | 999999 | |
| 1.68 | -3.00 | 1.07 | -3.00 | 12.57 | 170.53 | -38.93 | 78.39 | 0.6284 | -295.2 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.18 | 13.16 | 170.31 | -39.16 | 77.49 | 0.6322 | -677.0 | -555.0 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 14.08 | 169.92 | -39.54 | 76.11 | 0.6384 | -520.0 | -465.8 | |
| 0.00 | 4.76 | 0.00 | 3.05 | 13.47 | 169.97 | -39.50 | 77.05 | 0.6370 | 1.0 | 74.6 | |
| 1.94 | -3.00 | 1.25 | -3.00 | 12.40 | 169.77 | -39.70 | 78.77 | 0.6383 | -629.6 | 999999 | |
| 0.35 | -3.00 | 0.23 | -3.00 | 12.19 | 169.41 | -40.06 | 79.14 | 0.6429 | -578.2 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 11.44 | 169.13 | -40.33 | 80.32 | 0.6458 | -764.0 | -645.1 | |
| 1.41 | 35.03 | 0.92 | 22.85 | 13.20 | 168.77 | -40.70 | 77.64 | 0.6523 | 1004.9 | 575.4 | |
| 5.12 | -16.00 | 3.35 | -16.00 | 13.28 | 168.55 | -40.92 | 77.55 | 0.6552 | 925.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 11.64 | 168.61 | -40.86 | 80.05 | 0.6528 | -246.0 | -253.6 | |
| 0.00 | 1.59 | 0.00 | 1.04 | 13.50 | 168.25 | -41.21 | 77.26 | 0.6592 | 38.0 | 75.2 | |
| 3.00 | -16.00 | 1.97 | -16.00 | 13.26 | 168.26 | -41.21 | 77.62 | 0.6588 | 825.0 | 999999 | |
| 1.06 | 7.15 | 0.69 | 4.67 | 10.79 | 168.59 | -40.87 | 81.36 | 0.6525 | 847.2 | 649.6 | |
| 0.00 | 1.85 | 0.00 | 1.22 | 13.09 | 168.05 | -41.42 | 77.90 | 0.6613 | 772.0 | 645.4 | |
| 6.26 | 78.26 | 4.11 | 51.67 | 11.55 | 168.26 | -41.21 | 80.21 | 0.6573 | -617.5 | 491.7 | |
| 0.71 | -21.00 | 0.46 | -21.00 | 10.83 | 168.34 | -41.12 | 81.31 | 0.6558 | 705.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 14.72 | 167.44 | -42.03 | 75.54 | 0.6710 | -461.0 | -317.9 | |
| 7.15 | -23.00 | 4.73 | -23.00 | 12.45 | 167.68 | -41.79 | 78.90 | 0.6654 | 1001.1 | 999999 | |
| 0.79 | 2.74 | 0.52 | 1.81 | 11.27 | 167.70 | -41.77 | 80.69 | 0.6644 | -501.2 | -381.1 | |
| 5.21 | -23.00 | 3.46 | -23.00 | 12.52 | 167.42 | -42.05 | 78.82 | 0.6688 | 891.3 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.23 | 11.35 | 167.56 | -41.91 | 80.57 | 0.6662 | 50.0 | -81.0 | |
| 4.85 | -23.00 | 3.23 | -23.00 | 12.51 | 167.21 | -42.25 | 78.87 | 0.6714 | 738.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.88 | 10.35 | 167.52 | -41.95 | 82.09 | 0.6662 | 560.0 | 539.4 | |
| 0.00 | 3.79 | 0.00 | 2.52 | 10.42 | 167.26 | -42.20 | 81.99 | 0.6695 | 559.0 | 521.4 | |
| 0.00 | 1.24 | 0.00 | 0.82 | 10.95 | 167.13 | -42.34 | 81.19 | 0.6714 | 884.0 | 731.5 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 13.43 | 166.56 | -42.91 | 77.57 | 0.6805 | -557.0 | -455.3 | |
| 0.62 | 3.88 | 0.41 | 2.60 | 10.54 | 166.95 | -42.52 | 81.81 | 0.6736 | 665.3 | 542.3 | |
| 0.00 | 0.62 | 0.00 | 0.42 | 11.29 | 166.40 | -43.07 | 80.73 | 0.6808 | 919.0 | 780.9 | |
| 0.00 | 1.50 | 0.00 | 1.02 | 12.03 | 166.17 | -43.29 | 79.66 | 0.6841 | 834.0 | 673.4 | |
| 10.59 | 34.94 | 7.21 | 23.73 | 11.12 | 165.84 | -43.63 | 81.00 | 0.6878 | 881.3 | 680.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 14.50 | 165.06 | -44.41 | 76.19 | 0.7000 | 458.0 | 433.3 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 14.48 | 164.80 | -44.67 | 76.25 | 0.7030 | 691.0 | 635.1 | |
| 0.00 | 1.76 | 0.00 | 1.21 | 11.93 | 165.26 | -44.21 | 79.87 | 0.6954 | 698.0 | 491.5 | |
| 0.00 | 1.41 | 0.00 | 0.97 | 11.71 | 165.26 | -44.21 | 80.18 | 0.6953 | 677.0 | 496.4 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 10.71 | 165.19 | -44.28 | 81.63 | 0.6957 | 611.0 | 529.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 12.20 | 164.90 | -44.57 | 79.50 | 0.7000 | 446.0 | 376.0 | |
| 0.00 | 1.24 | 0.00 | 0.86 | 12.71 | 164.74 | -44.72 | 78.79 | 0.7021 | 470.0 | 348.0 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 11.09 | 165.04 | -44.43 | 81.09 | 0.6977 | 516.0 | 449.7 | |
| 0.00 | 1.50 | 0.00 | 1.04 | 11.89 | 164.83 | -44.64 | 79.95 | 0.7006 | 624.0 | 462.9 | |
| 0.00 | 3.53 | 0.00 | 2.45 | 11.06 | 164.74 | -44.73 | 81.13 | 0.7014 | 358.0 | 111.2 | |
| 1.41 | 2.47 | 0.99 | 1.73 | 11.60 | 164.20 | -45.27 | 80.40 | 0.7082 | -678.1 | -561.9 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 10.73 | 164.37 | -45.10 | 81.62 | 0.7058 | -720.0 | -578.2 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 11.52 | 163.95 | -45.52 | 80.53 | 0.7111 | -529.0 | -408.1 | |
| 0.00 | 1.94 | 0.00 | 1.38 | 10.86 | 163.38 | -46.09 | 81.46 | 0.7178 | -637.0 | -422.0 | |
| 0.00 | 4.59 | 0.00 | 3.27 | 10.98 | 163.04 | -46.43 | 81.30 | 0.7218 | -573.0 | -565.6 | |
| 0.00 | 1.41 | 0.00 | 1.01 | 11.43 | 162.95 | -46.52 | 80.68 | 0.7231 | -113.0 | -196.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 10.72 | 162.74 | -46.73 | 81.68 | 0.7254 | -386.0 | -251.8 | |
| 3.53 | 8.82 | 2.60 | 6.50 | 12.46 | 161.40 | -48.07 | 79.35 | 0.7415 | 838.0 | 606.5 | |
| 0.00 | 1.32 | 0.00 | 0.97 | 11.28 | 161.58 | -47.89 | 80.93 | 0.7391 | 744.0 | 638.3 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 12.21 | 161.32 | -48.15 | 79.69 | 0.7423 | 721.0 | 677.9 | |
| 2.03 | 3.97 | 1.49 | 2.92 | 11.12 | 161.43 | -48.04 | 81.15 | 0.7408 | 696.6 | 546.8 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 11.35 | 161.33 | -48.14 | 80.84 | 0.7419 | 601.0 | 612.4 | |
| 0.00 | 1.41 | 0.00 | 1.05 | 12.26 | 160.93 | -48.54 | 79.63 | 0.7468 | 665.0 | 592.1 | |
| 1.85 | 9.00 | 1.37 | 6.66 | 11.78 | 160.96 | -48.51 | 80.28 | 0.7463 | 736.7 | 618.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 12.16 | 160.82 | -48.65 | 79.77 | 0.7480 | 542.0 | 514.3 | |
| 0.35 | 1.50 | 0.26 | 1.12 | 12.03 | 160.66 | -48.81 | 79.95 | 0.7497 | 512.2 | 398.4 | |
| 1.94 | 5.38 | 1.46 | 4.05 | 12.02 | 160.29 | -49.18 | 79.97 | 0.7540 | 570.7 | 398.3 | |
| 0.44 | -65.00 | 0.33 | -65.00 | 12.17 | 160.16 | -49.31 | 79.79 | 0.7555 | 468.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
