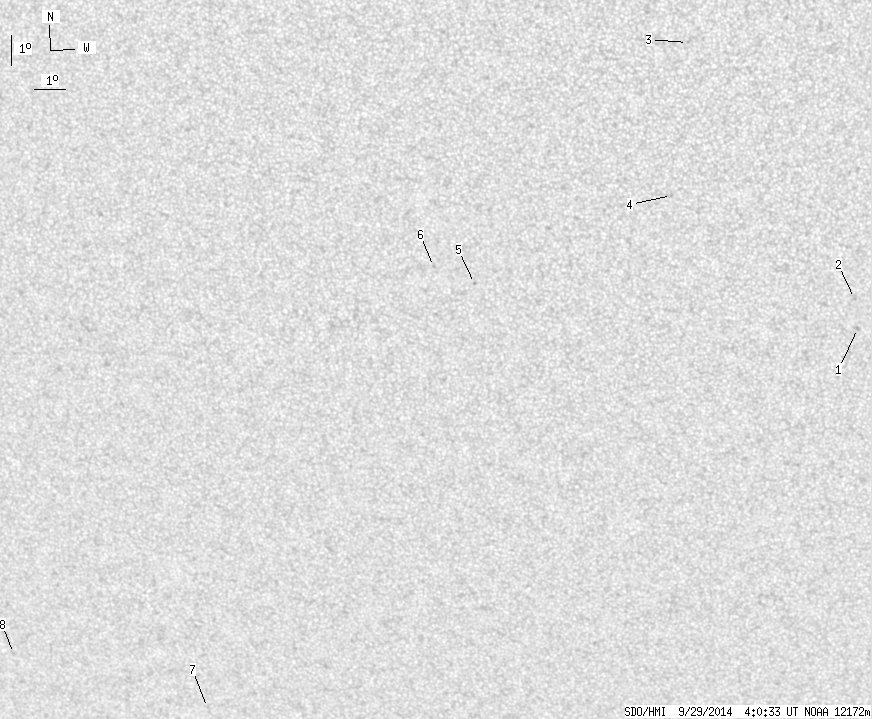

SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.79 | 0.00 | 5.64 | -20.59 | 202.43 | -6.49 | 171.85 | 0.4885 | -71.5 | 35.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.16 | -18.23 | 214.48 | 5.56 | 192.28 | 0.4346 | 676.0 | 565.4 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -17.24 | 214.35 | 5.43 | 192.53 | 0.4188 | 697.0 | 593.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -9.01 | 209.10 | 0.18 | 180.64 | 0.2740 | -713.0 | -512.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.85 | 208.60 | -0.32 | 179.12 | 0.3545 | 884.0 | 627.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.75 | 202.40 | -6.52 | 164.75 | 0.4153 | -726.0 | -652.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -16.21 | 201.12 | -7.80 | 161.54 | 0.4130 | -727.0 | -532.9 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -31.94 | 191.84 | -17.08 | 158.15 | 0.6720 | -627.0 | -475.4 | |
| 0.00 | 1.85 | 0.00 | 1.27 | -30.20 | 184.96 | -23.96 | 149.39 | 0.6916 | -36.0 | -103.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
