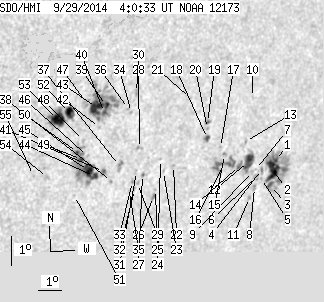

SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.55 | 312.52 | 60.16 | 227.53 | -16.66 | 250.09 | 41.17 | 239.47 | 0.7323 | -137.6 | -55.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 63.27 | 1.06 | 50.71 | -17.42 | 255.02 | 46.10 | 241.34 | 0.7858 | 721.7 | 93.3 | |
| 14.03 | -1.00 | 11.21 | -1.00 | -17.71 | 254.98 | 46.06 | 240.98 | 0.7867 | 713.1 | 999999 | |
| 2.12 | -1.00 | 1.70 | -1.00 | -18.25 | 255.07 | 46.15 | 240.41 | 0.7899 | 411.2 | 999999 | |
| 0.53 | 2.29 | 0.42 | 1.82 | -17.67 | 254.47 | 45.55 | 240.77 | 0.7816 | 677.2 | 547.1 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -17.97 | 254.57 | 45.65 | 240.47 | 0.7840 | 464.0 | 390.8 | |
| 0.00 | 3.35 | 0.00 | 2.65 | -17.88 | 254.31 | 45.39 | 240.44 | 0.7812 | 649.0 | 578.5 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -17.64 | 254.19 | 45.27 | 240.66 | 0.7789 | 711.0 | 688.7 | |
| 0.00 | 2.38 | 0.00 | 1.89 | -18.25 | 254.34 | 45.42 | 240.04 | 0.7831 | 674.0 | 521.7 | |
| 0.00 | 1.41 | 0.00 | 1.11 | -17.70 | 254.07 | 45.15 | 240.53 | 0.7780 | 636.0 | 465.9 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -15.24 | 253.35 | 44.43 | 243.10 | 0.7597 | 437.0 | 363.2 | |
| 0.00 | 1.76 | 0.00 | 1.40 | -18.56 | 254.22 | 45.30 | 239.61 | 0.7835 | 618.0 | 478.3 | |
| 9.44 | 16.15 | 7.35 | 12.57 | -17.35 | 253.78 | 44.86 | 240.80 | 0.7736 | 792.9 | 534.4 | |
| 0.00 | 1.68 | 0.00 | 1.29 | -16.66 | 253.44 | 44.52 | 241.43 | 0.7672 | 539.0 | 502.3 | |
| 0.00 | 3.71 | 0.00 | 2.87 | -17.44 | 253.41 | 44.49 | 240.49 | 0.7705 | 713.0 | 653.2 | |
| 0.00 | 1.50 | 0.00 | 1.14 | -17.02 | 252.62 | 43.70 | 240.58 | 0.7608 | 937.0 | 711.2 | |
| 0.00 | 18.97 | 0.00 | 14.47 | -17.35 | 252.68 | 43.76 | 240.21 | 0.7629 | 717.0 | 708.1 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -16.77 | 252.38 | 43.46 | 240.74 | 0.7572 | 733.0 | 577.3 | |
| 1.59 | 3.18 | 1.18 | 2.36 | -16.42 | 251.72 | 42.80 | 240.80 | 0.7489 | 807.4 | 662.9 | |
| 0.62 | 2.12 | 0.46 | 1.57 | -15.89 | 251.58 | 42.66 | 241.37 | 0.7448 | 742.6 | 618.4 | |
| 0.00 | 1.06 | 0.00 | 0.79 | -16.09 | 251.63 | 42.71 | 241.16 | 0.7463 | 630.0 | 563.7 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -15.04 | 250.64 | 41.72 | 241.90 | 0.7309 | 586.0 | 517.0 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -17.19 | 250.48 | 41.56 | 239.17 | 0.7405 | -221.0 | -147.5 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -17.36 | 250.11 | 41.19 | 238.75 | 0.7376 | -236.0 | -249.3 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -16.94 | 249.87 | 40.95 | 239.11 | 0.7330 | 500.0 | 394.5 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -17.93 | 249.93 | 41.01 | 237.95 | 0.7389 | -394.0 | -257.7 | |
| 0.00 | 2.82 | 0.00 | 2.07 | -18.16 | 249.91 | 40.99 | 237.66 | 0.7400 | -483.0 | -326.8 | |
| 0.35 | 1.32 | 0.25 | 0.95 | -17.38 | 249.24 | 40.32 | 238.19 | 0.7290 | -506.8 | -446.1 | |
| 0.00 | 2.38 | 0.00 | 1.70 | -16.51 | 248.89 | 39.97 | 239.05 | 0.7205 | -557.0 | -461.9 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -17.67 | 249.11 | 40.19 | 237.77 | 0.7292 | -460.0 | -376.2 | |
| 0.00 | 2.56 | 0.00 | 1.78 | -14.65 | 248.34 | 39.42 | 241.04 | 0.7044 | -393.0 | -335.4 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -17.26 | 248.96 | 40.04 | 238.17 | 0.7254 | -414.0 | -259.9 | |
| 0.00 | 1.50 | 0.00 | 1.08 | -17.86 | 249.04 | 40.12 | 237.49 | 0.7296 | -480.0 | -359.6 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -17.58 | 248.88 | 39.96 | 237.73 | 0.7264 | -598.0 | -535.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -15.29 | 248.28 | 39.36 | 240.19 | 0.7073 | -518.0 | -428.4 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -17.91 | 248.84 | 39.92 | 237.31 | 0.7279 | -469.0 | -364.8 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -15.15 | 248.13 | 39.21 | 240.28 | 0.7049 | -441.0 | -430.4 | |
| 0.00 | 5.03 | 0.00 | 3.56 | -17.00 | 248.20 | 39.28 | 238.00 | 0.7162 | -617.0 | -399.9 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -17.51 | 248.00 | 39.08 | 237.26 | 0.7171 | -471.0 | -335.5 | |
| 2.29 | 63.00 | 1.57 | 43.08 | -14.98 | 247.21 | 38.29 | 239.92 | 0.6940 | -658.7 | -267.2 | |
| 1.41 | -39.00 | 0.97 | -39.00 | -15.21 | 247.18 | 38.26 | 239.61 | 0.6950 | -531.2 | 999999 | |
| 0.71 | 3.44 | 0.50 | 2.42 | -17.15 | 247.59 | 38.67 | 237.43 | 0.7107 | -636.2 | -472.0 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -15.68 | 247.08 | 38.16 | 238.94 | 0.6967 | -513.0 | -408.0 | |
| 11.82 | -39.00 | 8.07 | -39.00 | -15.02 | 246.82 | 37.90 | 239.63 | 0.6900 | -789.3 | 999999 | |
| 2.82 | 50.12 | 1.97 | 34.69 | -17.29 | 247.26 | 38.34 | 237.04 | 0.7082 | -593.7 | -522.2 | |
| 10.15 | -44.00 | 7.05 | -44.00 | -17.07 | 246.96 | 38.04 | 237.12 | 0.7038 | -807.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -16.60 | 246.81 | 37.89 | 237.60 | 0.6994 | -601.0 | -471.6 | |
| 0.00 | 3.79 | 0.00 | 2.57 | -14.82 | 246.39 | 37.47 | 239.59 | 0.6841 | -774.0 | -648.1 | |
| 0.00 | 1.59 | 0.00 | 1.09 | -16.06 | 246.53 | 37.61 | 238.10 | 0.6931 | -585.0 | -438.4 | |
| 1.85 | -44.00 | 1.28 | -44.00 | -16.68 | 246.59 | 37.67 | 237.36 | 0.6976 | -881.7 | 999999 | |
| 1.15 | -44.00 | 0.79 | -44.00 | -16.44 | 246.38 | 37.46 | 237.52 | 0.6938 | -868.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -17.86 | 246.60 | 37.68 | 235.90 | 0.7049 | -518.0 | -430.7 | |
| 7.41 | 31.50 | 4.99 | 21.13 | -15.10 | 245.78 | 36.86 | 238.83 | 0.6791 | -771.8 | -616.1 | |
| 13.94 | -52.00 | 9.34 | -52.00 | -15.29 | 245.35 | 36.43 | 238.28 | 0.6757 | -929.4 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.92 | -17.18 | 245.36 | 36.44 | 235.89 | 0.6878 | -752.0 | -585.1 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -17.07 | 244.79 | 35.87 | 235.61 | 0.6811 | -535.0 | -564.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
