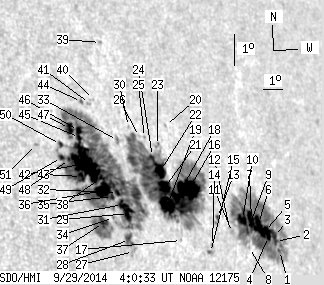

SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 242.28 | 1108.25 | 193.68 | 891.70 | 15.22 | 261.17 | 52.25 | 284.10 | 0.7879 | -33.4 | -126.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 231.00 | 0.81 | 206.47 | 12.90 | 266.74 | 57.82 | 280.98 | 0.8425 | -500.9 | -256.4 | |
| 0.26 | -1.00 | 0.24 | -1.00 | 13.19 | 266.61 | 57.69 | 281.32 | 0.8413 | -506.3 | 999999 | |
| 2.21 | -1.00 | 2.01 | -1.00 | 13.34 | 266.61 | 57.69 | 281.51 | 0.8413 | -389.6 | 999999 | |
| 3.09 | -1.00 | 2.79 | -1.00 | 13.38 | 266.28 | 57.36 | 281.55 | 0.8383 | -737.7 | 999999 | |
| 11.12 | -1.00 | 10.01 | -1.00 | 13.55 | 266.11 | 57.19 | 281.76 | 0.8367 | -703.7 | 999999 | |
| 7.76 | -1.00 | 6.94 | -1.00 | 13.81 | 265.87 | 56.95 | 282.08 | 0.8345 | -614.6 | 999999 | |
| 9.97 | -1.00 | 8.83 | -1.00 | 13.94 | 265.52 | 56.60 | 282.24 | 0.8312 | -812.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.93 | 13.15 | 265.12 | 56.20 | 281.30 | 0.8273 | -321.0 | -341.2 | |
| 2.21 | -1.00 | 1.94 | -1.00 | 13.67 | 265.19 | 56.27 | 281.92 | 0.8281 | -870.2 | 999999 | |
| 7.59 | -1.00 | 6.64 | -1.00 | 14.02 | 265.04 | 56.12 | 282.35 | 0.8267 | -949.4 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.05 | 13.69 | 264.36 | 55.44 | 281.96 | 0.8201 | -544.0 | -499.7 | |
| 0.00 | 1.06 | 0.00 | 0.91 | 13.85 | 264.26 | 55.34 | 282.16 | 0.8191 | -389.0 | -323.6 | |
| 0.79 | 3.62 | 0.67 | 3.07 | 14.21 | 263.73 | 54.81 | 282.62 | 0.8141 | -476.7 | -509.5 | |
| 0.00 | 1.68 | 0.00 | 1.40 | 13.40 | 263.18 | 54.26 | 281.64 | 0.8084 | -519.0 | -436.8 | |
| 0.00 | 2.74 | 0.00 | 2.28 | 13.20 | 263.01 | 54.09 | 281.40 | 0.8066 | 36.0 | -79.1 | |
| 30.35 | 347.48 | 25.09 | 281.66 | 15.18 | 262.54 | 53.62 | 283.89 | 0.8026 | -977.3 | -463.2 | |
| 0.00 | 0.88 | 0.00 | 0.71 | 13.70 | 261.66 | 52.74 | 282.07 | 0.7930 | 248.0 | 169.2 | |
| 6.71 | -16.00 | 5.46 | -16.00 | 15.00 | 261.85 | 52.93 | 283.70 | 0.7955 | -1278.9 | 999999 | |
| 13.41 | -16.00 | 10.78 | -16.00 | 14.83 | 261.32 | 52.40 | 283.52 | 0.7900 | 245.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.65 | 17.20 | 262.13 | 53.21 | 286.44 | 0.7998 | -448.0 | -379.8 | |
| 13.50 | -16.00 | 10.88 | -16.00 | 15.35 | 261.36 | 52.44 | 284.18 | 0.7907 | -1178.9 | 999999 | |
| 11.56 | -16.00 | 9.31 | -16.00 | 15.88 | 261.34 | 52.42 | 284.85 | 0.7909 | -945.3 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.86 | 16.64 | 261.48 | 52.56 | 285.80 | 0.7928 | -614.0 | -531.5 | |
| 1.32 | -16.00 | 1.06 | -16.00 | 16.34 | 261.10 | 52.18 | 285.44 | 0.7887 | -679.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.85 | 16.94 | 260.93 | 52.01 | 286.23 | 0.7874 | -411.0 | -366.7 | |
| 0.00 | 1.24 | 0.00 | 0.98 | 16.99 | 260.69 | 51.77 | 286.32 | 0.7850 | -526.0 | -432.1 | |
| 0.00 | 3.53 | 0.00 | 2.71 | 13.59 | 259.23 | 50.31 | 282.04 | 0.7671 | 240.0 | 298.9 | |
| 0.00 | 8.65 | 0.00 | 6.64 | 13.96 | 259.14 | 50.22 | 282.54 | 0.7664 | 770.0 | 526.5 | |
| 10.06 | 451.24 | 7.76 | 342.59 | 14.74 | 259.34 | 50.42 | 283.54 | 0.7690 | 651.6 | 168.3 | |
| 0.00 | 1.15 | 0.00 | 0.91 | 17.34 | 260.27 | 51.35 | 286.81 | 0.7810 | -462.0 | -359.7 | |
| 6.26 | -29.00 | 4.82 | -29.00 | 15.03 | 259.14 | 50.22 | 283.94 | 0.7670 | 687.5 | 999999 | |
| 2.91 | -29.00 | 2.23 | -29.00 | 15.41 | 259.02 | 50.10 | 284.45 | 0.7660 | 367.9 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.33 | 16.97 | 259.57 | 50.65 | 286.41 | 0.7733 | 293.0 | 195.5 | |
| 0.00 | 1.32 | 0.00 | 1.01 | 14.68 | 258.59 | 49.67 | 283.53 | 0.7608 | 540.0 | 432.0 | |
| 2.38 | -29.00 | 1.82 | -29.00 | 15.32 | 258.75 | 49.83 | 284.34 | 0.7630 | 662.0 | 999999 | |
| 16.59 | -29.00 | 12.57 | -29.00 | 15.53 | 258.38 | 49.46 | 284.66 | 0.7592 | 913.2 | 999999 | |
| 6.53 | 34.41 | 4.91 | 25.84 | 14.58 | 258.08 | 49.16 | 283.43 | 0.7551 | 935.4 | 510.9 | |
| 1.32 | -29.00 | 1.00 | -29.00 | 15.93 | 258.42 | 49.50 | 285.18 | 0.7599 | 634.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.25 | 19.99 | 259.97 | 51.05 | 290.23 | 0.7811 | 510.0 | 411.9 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 18.30 | 258.90 | 49.98 | 288.22 | 0.7677 | 246.0 | 177.4 | |
| 0.00 | 1.94 | 0.00 | 1.49 | 18.20 | 258.66 | 49.74 | 288.12 | 0.7651 | 420.0 | 321.6 | |
| 49.50 | -29.00 | 37.17 | -29.00 | 16.42 | 257.81 | 48.89 | 285.89 | 0.7538 | 884.1 | 999999 | |
| 4.24 | -29.00 | 3.16 | -29.00 | 16.04 | 257.50 | 48.58 | 285.43 | 0.7499 | 986.6 | 999999 | |
| 0.44 | 1.94 | 0.34 | 1.48 | 18.29 | 258.30 | 49.38 | 288.30 | 0.7614 | 456.8 | 338.4 | |
| 2.38 | -29.00 | 1.79 | -29.00 | 17.22 | 257.81 | 48.89 | 286.96 | 0.7546 | 692.7 | 999999 | |
| 4.32 | -29.00 | 3.26 | -29.00 | 17.43 | 257.84 | 48.92 | 287.24 | 0.7552 | 607.4 | 999999 | |
| 7.41 | -29.00 | 5.54 | -29.00 | 17.53 | 257.44 | 48.52 | 287.42 | 0.7510 | 854.6 | 999999 | |
| 1.59 | -29.00 | 1.18 | -29.00 | 16.60 | 257.11 | 48.19 | 286.22 | 0.7463 | 845.4 | 999999 | |
| 2.21 | -29.00 | 1.63 | -29.00 | 16.69 | 256.77 | 47.85 | 286.39 | 0.7425 | 875.1 | 999999 | |
| 1.41 | -29.00 | 1.04 | -29.00 | 17.09 | 256.85 | 47.93 | 286.91 | 0.7440 | 782.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.02 | 17.18 | 255.77 | 46.85 | 287.20 | 0.7319 | 748.0 | 583.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
