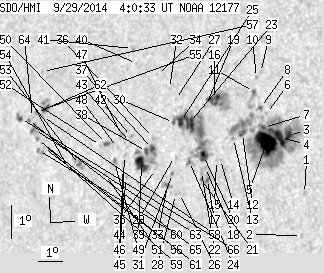

SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.59 | 467.92 | 69.35 | 304.30 | 12.13 | 168.35 | -40.57 | 79.22 | 0.6488 | 52.7 | 73.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.76 | 10.71 | 172.42 | -36.50 | 81.17 | 0.5937 | -748.0 | -627.5 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 9.44 | 172.47 | -36.45 | 83.31 | 0.5923 | -696.0 | -531.8 | |
| 3.88 | 206.56 | 2.42 | 129.77 | 12.41 | 171.54 | -37.38 | 78.44 | 0.6074 | -1093.0 | -334.5 | |
| 8.91 | -3.00 | 5.57 | -3.00 | 12.33 | 171.25 | -37.67 | 78.62 | 0.6113 | -985.2 | 999999 | |
| 29.65 | -3.00 | 18.64 | -3.00 | 12.14 | 170.73 | -38.19 | 78.99 | 0.6180 | -1011.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 13.01 | 170.58 | -38.34 | 77.61 | 0.6211 | -628.0 | -472.8 | |
| 1.50 | -3.00 | 0.95 | -3.00 | 12.58 | 170.54 | -38.38 | 78.31 | 0.6211 | -187.0 | 999999 | |
| 0.71 | 3.09 | 0.45 | 1.96 | 13.17 | 170.31 | -38.61 | 77.39 | 0.6249 | -699.0 | -473.4 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 14.22 | 170.11 | -38.81 | 75.75 | 0.6291 | -481.0 | -384.2 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 14.06 | 169.98 | -38.94 | 76.03 | 0.6305 | -548.0 | -444.4 | |
| 0.71 | 8.47 | 0.45 | 5.39 | 13.63 | 169.95 | -38.97 | 76.71 | 0.6303 | 294.4 | -32.6 | |
| 2.21 | -3.00 | 1.41 | -3.00 | 12.34 | 169.75 | -39.17 | 78.79 | 0.6313 | -665.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.90 | 12.16 | 169.42 | -39.50 | 79.10 | 0.6355 | -584.0 | -473.5 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 11.50 | 169.02 | -39.90 | 80.19 | 0.6402 | -663.0 | -624.4 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 11.46 | 168.86 | -40.06 | 80.27 | 0.6422 | -584.0 | -481.7 | |
| 7.85 | 28.94 | 5.10 | 18.75 | 13.28 | 168.44 | -40.47 | 77.49 | 0.6494 | 902.5 | 688.7 | |
| 0.88 | 6.26 | 0.57 | 4.06 | 10.86 | 168.60 | -40.32 | 81.22 | 0.6453 | 856.8 | 680.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 11.21 | 168.46 | -40.46 | 80.68 | 0.6473 | 37.0 | 182.5 | |
| 0.00 | 1.41 | 0.00 | 0.92 | 13.04 | 168.13 | -40.79 | 77.90 | 0.6533 | 696.0 | 527.9 | |
| 6.00 | 93.18 | 3.90 | 61.01 | 11.57 | 168.32 | -40.60 | 80.14 | 0.6494 | -621.9 | 403.0 | |
| 0.53 | -17.00 | 0.34 | -17.00 | 10.84 | 168.36 | -40.56 | 81.26 | 0.6484 | 762.3 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.38 | 11.08 | 168.32 | -40.60 | 80.89 | 0.6491 | 678.0 | 550.9 | |
| 11.74 | -20.00 | 7.72 | -20.00 | 12.51 | 167.57 | -41.35 | 78.76 | 0.6598 | 951.7 | 999999 | |
| 0.79 | -20.00 | 0.52 | -20.00 | 11.34 | 167.79 | -41.13 | 80.52 | 0.6562 | -538.4 | 999999 | |
| 5.47 | -20.00 | 3.62 | -20.00 | 12.51 | 167.20 | -41.72 | 78.80 | 0.6646 | 710.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 10.36 | 167.55 | -41.37 | 82.04 | 0.6588 | 636.0 | 575.5 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 13.16 | 166.86 | -42.06 | 77.87 | 0.6695 | -287.0 | -269.0 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 10.31 | 167.39 | -41.53 | 82.11 | 0.6609 | 472.0 | 425.8 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 11.45 | 167.15 | -41.76 | 80.41 | 0.6644 | -227.0 | -252.7 | |
| 0.79 | -20.00 | 0.53 | -20.00 | 12.46 | 166.92 | -42.00 | 78.90 | 0.6681 | 453.9 | 999999 | |
| 0.44 | 1.41 | 0.29 | 0.93 | 10.93 | 167.16 | -41.76 | 81.19 | 0.6640 | 813.4 | 711.6 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 13.47 | 166.55 | -42.37 | 77.44 | 0.6738 | -619.0 | -404.5 | |
| 0.79 | 5.38 | 0.53 | 3.57 | 10.56 | 167.02 | -41.90 | 81.76 | 0.6657 | 733.1 | 590.7 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 13.85 | 165.95 | -42.97 | 76.95 | 0.6816 | 478.0 | 516.7 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 11.00 | 166.45 | -42.47 | 81.13 | 0.6732 | 624.0 | 495.4 | |
| 0.00 | 1.94 | 0.00 | 1.30 | 11.95 | 166.19 | -42.73 | 79.73 | 0.6770 | 811.0 | 647.4 | |
| 2.74 | 38.56 | 1.83 | 25.95 | 11.62 | 166.21 | -42.71 | 80.22 | 0.6765 | 948.0 | 663.9 | |
| 1.76 | -37.00 | 1.19 | -37.00 | 11.51 | 165.98 | -42.94 | 80.40 | 0.6794 | 813.8 | 999999 | |
| 11.65 | -37.00 | 7.86 | -37.00 | 11.13 | 165.84 | -43.08 | 80.96 | 0.6809 | 841.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 14.11 | 164.99 | -43.92 | 76.69 | 0.6937 | 418.0 | 344.1 | |
| 0.00 | 1.85 | 0.00 | 1.28 | 14.55 | 164.71 | -44.21 | 76.10 | 0.6976 | 506.0 | 533.8 | |
| 0.00 | 1.41 | 0.00 | 0.96 | 11.91 | 165.27 | -43.65 | 79.86 | 0.6885 | 685.0 | 568.8 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 11.72 | 165.26 | -43.66 | 80.12 | 0.6885 | 730.0 | 531.6 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 10.66 | 165.29 | -43.63 | 81.67 | 0.6876 | 653.0 | 530.8 | |
| 0.00 | 1.85 | 0.00 | 1.26 | 11.31 | 165.08 | -43.84 | 80.73 | 0.6904 | 567.0 | 436.9 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 11.10 | 165.08 | -43.84 | 81.04 | 0.6904 | 529.0 | 384.8 | |
| 0.00 | 2.38 | 0.00 | 1.63 | 11.93 | 164.83 | -44.09 | 79.85 | 0.6939 | 583.0 | 410.6 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 11.53 | 164.74 | -44.18 | 80.43 | 0.6948 | 359.0 | 246.7 | |
| 0.00 | 2.21 | 0.00 | 1.52 | 11.10 | 164.70 | -44.22 | 81.05 | 0.6952 | 322.0 | 154.3 | |
| 1.68 | 3.09 | 1.16 | 2.14 | 11.61 | 164.25 | -44.67 | 80.34 | 0.7008 | -668.0 | -511.5 | |
| 0.00 | 1.32 | 0.00 | 0.91 | 10.68 | 164.39 | -44.53 | 81.67 | 0.6988 | -613.0 | -553.9 | |
| 0.00 | 1.06 | 0.00 | 0.74 | 11.53 | 164.01 | -44.91 | 80.47 | 0.7038 | -452.0 | -484.2 | |
| 0.97 | 7.15 | 0.68 | 5.04 | 10.89 | 163.22 | -45.70 | 81.41 | 0.7131 | -761.7 | -550.5 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 10.70 | 162.81 | -46.11 | 81.68 | 0.7180 | -411.0 | -283.0 | |
| 3.18 | 7.24 | 2.31 | 5.27 | 12.44 | 161.36 | -47.56 | 79.34 | 0.7357 | 901.4 | 669.0 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 11.26 | 161.53 | -47.39 | 80.94 | 0.7332 | 792.0 | 698.1 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 13.53 | 160.94 | -47.98 | 77.89 | 0.7410 | 465.0 | 405.9 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 12.19 | 161.28 | -47.64 | 79.69 | 0.7365 | 731.0 | 631.9 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 11.41 | 161.41 | -47.51 | 80.75 | 0.7347 | 655.0 | 487.8 | |
| 0.00 | 1.94 | 0.00 | 1.41 | 11.16 | 161.33 | -47.59 | 81.09 | 0.7356 | 637.0 | 565.1 | |
| 0.00 | 1.50 | 0.00 | 1.10 | 11.48 | 161.21 | -47.71 | 80.65 | 0.7370 | 722.0 | 629.1 | |
| 0.00 | 1.41 | 0.00 | 1.04 | 12.28 | 160.98 | -47.94 | 79.57 | 0.7400 | 613.0 | 573.4 | |
| 0.00 | 5.56 | 0.00 | 4.08 | 11.77 | 161.01 | -47.91 | 80.27 | 0.7394 | 799.0 | 666.9 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 12.12 | 160.83 | -48.09 | 79.80 | 0.7416 | 634.0 | 462.9 | |
| 0.44 | 1.32 | 0.33 | 0.98 | 12.01 | 160.67 | -48.25 | 79.95 | 0.7434 | 579.4 | 440.0 | |
| 1.32 | 4.24 | 0.98 | 3.15 | 12.04 | 160.30 | -48.62 | 79.93 | 0.7477 | 603.5 | 406.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
