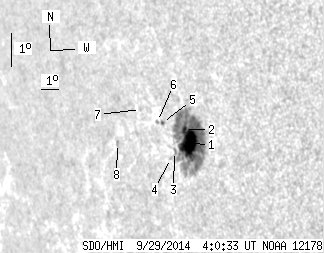

SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.85 | 155.38 | 29.00 | 141.69 | -1.17 | 152.20 | -56.72 | 95.84 | 0.8422 | 709.9 | 289.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.32 | 146.12 | 25.76 | 132.75 | -1.21 | 152.35 | -56.57 | 95.91 | 0.8409 | 878.5 | 312.7 | |
| 2.91 | -1.00 | 2.66 | -1.00 | -0.80 | 152.14 | -56.78 | 95.39 | 0.8423 | 420.1 | 999999 | |
| 0.00 | 2.29 | 0.00 | 2.13 | -1.53 | 151.56 | -57.36 | 96.14 | 0.8487 | 262.0 | 149.1 | |
| 0.00 | 0.79 | 0.00 | 0.74 | -1.77 | 151.32 | -57.60 | 96.37 | 0.8512 | 155.0 | 129.9 | |
| 0.62 | 1.50 | 0.58 | 1.42 | -0.72 | 150.91 | -58.01 | 95.07 | 0.8535 | 456.1 | 357.8 | |
| 0.00 | 1.32 | 0.00 | 1.26 | -0.71 | 150.62 | -58.30 | 95.02 | 0.8561 | 202.0 | 94.1 | |
| 0.00 | 1.15 | 0.00 | 1.12 | -0.45 | 149.63 | -59.29 | 94.55 | 0.8644 | -152.0 | -196.1 | |
| 0.00 | 2.21 | 0.00 | 2.27 | -1.63 | 148.20 | -60.72 | 95.65 | 0.8781 | -345.0 | -273.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
