SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.92 | 103.33 | 20.72 | 103.81 | -9.67 | 266.52 | 58.14 | 254.51 | 0.8680 | 213.8 | 124.2 | |
|
previous
or next observation for the same group /

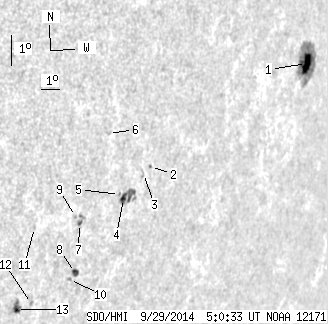

back to the solar disc SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.94 | 59.21 | 12.27 | 66.34 | -8.16 | 270.55 | 62.17 | 257.40 | 0.8989 | 611.1 | 181.7 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -10.48 | 262.12 | 53.75 | 252.53 | 0.8335 | 203.0 | 253.9 | |
| 0.00 | 2.12 | 0.00 | 1.87 | -10.67 | 261.80 | 53.43 | 252.21 | 0.8311 | 543.0 | 477.8 | |
| 3.88 | 15.35 | 3.39 | 13.46 | -11.37 | 260.96 | 52.59 | 251.12 | 0.8252 | 718.4 | 546.6 | |
| 0.00 | 1.15 | 0.00 | 0.99 | -11.22 | 260.72 | 52.35 | 251.21 | 0.8225 | 662.0 | 556.5 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -9.22 | 259.71 | 51.34 | 253.24 | 0.8072 | 208.0 | 293.5 | |
| 0.71 | 4.94 | 0.59 | 4.13 | -11.96 | 258.93 | 50.56 | 249.71 | 0.8077 | -653.6 | -435.8 | |
| 2.65 | 4.15 | 2.25 | 3.53 | -13.53 | 259.17 | 50.80 | 247.95 | 0.8151 | -578.8 | -397.0 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -11.71 | 258.67 | 50.30 | 249.90 | 0.8045 | -413.0 | -405.5 | |
| 0.00 | 1.59 | 0.00 | 1.35 | -13.73 | 258.93 | 50.56 | 247.63 | 0.8135 | -654.0 | -516.4 | |
| 0.00 | 1.41 | 0.00 | 1.13 | -11.88 | 256.77 | 48.40 | 248.96 | 0.7863 | -380.0 | -363.4 | |
| 0.00 | 1.85 | 0.00 | 1.52 | -14.33 | 257.28 | 48.91 | 246.25 | 0.8000 | -599.0 | -459.1 | |
| 2.74 | 8.56 | 2.22 | 6.94 | -14.46 | 256.61 | 48.24 | 245.81 | 0.7941 | -754.7 | -564.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
