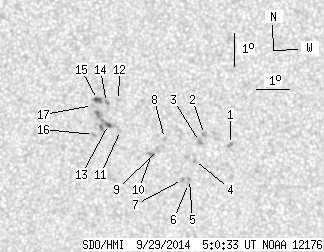

SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.26 | 44.92 | 1.62 | 22.26 | 7.72 | 207.81 | -0.56 | 136.03 | 0.0289 | -230.4 | 52.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.05 | 7.36 | 210.57 | 2.20 | 284.35 | 0.0394 | -1079.0 | -905.0 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 7.67 | 209.78 | 1.41 | 301.55 | 0.0288 | -982.0 | -845.5 | |
| 0.00 | 2.47 | 0.00 | 1.22 | 7.46 | 209.63 | 1.26 | 297.46 | 0.0247 | -1147.0 | -969.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 6.89 | 209.48 | 1.11 | 274.09 | 0.0193 | -954.0 | -831.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.32 | 209.32 | 0.95 | 242.55 | 0.0187 | -946.0 | -863.7 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 6.20 | 209.29 | 0.92 | 236.27 | 0.0193 | -882.0 | -715.3 | |
| 0.00 | 2.12 | 0.00 | 1.05 | 6.32 | 209.11 | 0.74 | 236.28 | 0.0155 | -1067.0 | -801.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.55 | 208.57 | 0.20 | 345.06 | 0.0134 | -885.0 | -677.4 | |
| 0.00 | 2.74 | 0.00 | 1.36 | 7.22 | 208.39 | 0.02 | 357.63 | 0.0072 | -891.0 | -731.2 | |
| 0.00 | 3.35 | 0.00 | 1.66 | 7.07 | 208.18 | -0.19 | 36.62 | 0.0057 | -1153.0 | -906.8 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 7.79 | 207.24 | -1.13 | 48.84 | 0.0262 | 616.0 | 464.1 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 8.69 | 207.18 | -1.20 | 32.13 | 0.0390 | 827.0 | 589.6 | |
| 1.32 | 14.21 | 0.66 | 7.04 | 7.97 | 206.87 | -1.50 | 51.91 | 0.0330 | 1088.7 | 875.1 | |
| 0.00 | 2.21 | 0.00 | 1.09 | 8.63 | 206.81 | -1.56 | 40.23 | 0.0419 | 971.0 | 782.1 | |
| 1.94 | 4.24 | 0.96 | 2.10 | 8.72 | 206.54 | -1.83 | 43.45 | 0.0462 | 1163.0 | 960.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.67 | 206.42 | -1.95 | 65.96 | 0.0371 | 1059.0 | 855.6 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 8.54 | 206.39 | -1.99 | 48.55 | 0.0459 | 849.0 | 793.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
