SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.14 | 161.21 | 27.93 | 144.69 | -1.16 | 152.30 | -56.07 | 95.94 | 0.8362 | 711.7 | 292.1 | |
|
previous
or next observation for the same group /

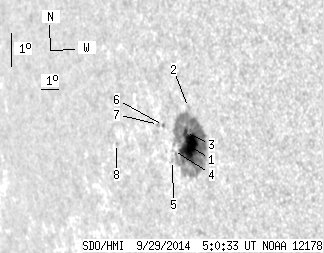

back to the solar disc SDO HMI 2014-09-29 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.88 | 152.48 | 24.98 | 136.53 | -1.21 | 152.40 | -55.97 | 96.02 | 0.8353 | 864.8 | 302.5 | |
| 0.00 | 1.50 | 0.00 | 1.34 | -0.03 | 152.37 | -56.00 | 94.61 | 0.8339 | 374.0 | 295.0 | |
| 2.91 | -1.00 | 2.62 | -1.00 | -0.81 | 152.20 | -56.17 | 95.50 | 0.8366 | 484.6 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.38 | -1.42 | 151.52 | -56.85 | 96.10 | 0.8439 | 167.0 | 131.1 | |
| 0.00 | 1.41 | 0.00 | 1.30 | -1.73 | 151.45 | -56.92 | 96.45 | 0.8450 | 233.0 | 177.1 | |
| 0.35 | 1.41 | 0.33 | 1.31 | -0.72 | 150.99 | -57.39 | 95.18 | 0.8478 | 499.5 | 380.6 | |
| 0.00 | 1.59 | 0.00 | 1.49 | -0.72 | 150.70 | -57.67 | 95.13 | 0.8504 | 229.0 | 206.1 | |
| 0.00 | 1.32 | 0.00 | 1.34 | -1.55 | 148.21 | -60.16 | 95.65 | 0.8733 | -390.0 | -253.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
