SDO HMI 2014-09-29 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.46 | 50.03 | 2.72 | 24.81 | 7.80 | 207.48 | 0.20 | 112.76 | 0.0293 | -50.1 | 250.3 | |
|
previous
or next observation for the same group /

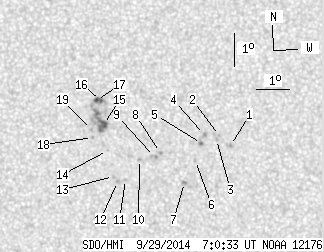

back to the solar disc SDO HMI 2014-09-29 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.35 | 210.57 | 3.29 | 279.69 | 0.0580 | -1136.0 | -898.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.65 | 210.24 | 2.96 | 286.30 | 0.0535 | -878.0 | -750.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.53 | 210.14 | 2.87 | 284.55 | 0.0515 | -1027.0 | -780.5 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 7.68 | 209.78 | 2.50 | 289.69 | 0.0462 | -1042.0 | -822.7 | |
| 0.00 | 1.94 | 0.00 | 0.96 | 7.41 | 209.69 | 2.41 | 284.49 | 0.0433 | -1166.0 | -969.6 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 6.90 | 209.50 | 2.23 | 272.78 | 0.0388 | -941.0 | -796.9 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 6.24 | 209.17 | 1.89 | 253.60 | 0.0343 | -1095.0 | -922.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.15 | 208.45 | 1.17 | 286.76 | 0.0212 | -1090.0 | -891.5 | |
| 0.00 | 2.29 | 0.00 | 1.14 | 7.03 | 208.26 | 0.99 | 283.18 | 0.0176 | -1108.0 | -866.1 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 6.94 | 207.81 | 0.53 | 284.80 | 0.0096 | -894.0 | -640.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.34 | 207.38 | 0.11 | 193.08 | 0.0083 | 861.0 | 667.0 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.28 | 207.14 | -0.13 | 165.62 | 0.0094 | 906.0 | 655.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.43 | 207.02 | -0.25 | 145.60 | 0.0079 | 858.0 | 696.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.21 | 206.84 | -0.44 | 46.46 | 0.0105 | 822.0 | 661.9 | |
| 3.26 | 28.33 | 1.62 | 14.04 | 7.99 | 206.72 | -0.56 | 24.84 | 0.0230 | 1009.6 | 849.1 | |
| 0.88 | -15.00 | 0.44 | -15.00 | 8.71 | 206.63 | -0.65 | 18.52 | 0.0354 | 1065.6 | 999999 | |
| 1.32 | -15.00 | 0.66 | -15.00 | 8.71 | 206.51 | -0.77 | 21.69 | 0.0361 | 1148.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.60 | 206.39 | -0.89 | 47.74 | 0.0209 | 1031.0 | 849.7 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.84 | 206.36 | -0.92 | 41.19 | 0.0243 | 983.0 | 811.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
