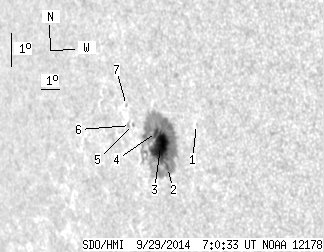

SDO HMI 2014-09-29 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 166.69 | 27.32 | 145.19 | -1.22 | 152.45 | -54.82 | 96.24 | 0.8242 | 724.6 | 278.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.51 | -0.41 | 154.35 | -52.93 | 95.62 | 0.8040 | -361.0 | -306.6 | |
| 1.85 | 163.60 | 1.60 | 142.45 | -1.86 | 152.82 | -54.45 | 97.08 | 0.8217 | 535.7 | 279.8 | |
| 25.24 | -2.00 | 21.95 | -2.00 | -1.26 | 152.48 | -54.80 | 96.29 | 0.8240 | 880.1 | 999999 | |
| 4.32 | -2.00 | 3.77 | -2.00 | -0.85 | 152.28 | -54.99 | 95.76 | 0.8253 | 501.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -0.73 | 151.05 | -56.22 | 95.39 | 0.8370 | 456.0 | 429.1 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -0.77 | 150.89 | -56.39 | 95.42 | 0.8386 | 202.0 | 253.2 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -0.19 | 150.68 | -56.60 | 94.69 | 0.8397 | 331.0 | 297.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
