SDO HMI 2014-09-29 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.44 | 175.49 | 31.28 | 150.85 | -1.23 | 152.42 | -54.31 | 96.36 | 0.8192 | 660.6 | 239.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

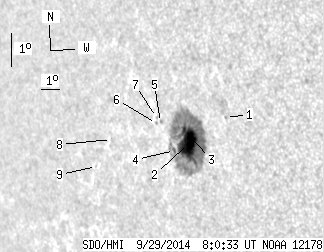

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.86 | -0.29 | 154.40 | -52.33 | 95.59 | 0.7975 | -436.0 | -312.6 | |
| 33.18 | 170.38 | 28.46 | 146.27 | -1.26 | 152.51 | -54.22 | 96.41 | 0.8184 | 826.3 | 249.7 | |
| 2.29 | -2.00 | 1.97 | -2.00 | -0.86 | 152.31 | -54.42 | 95.88 | 0.8197 | 505.5 | 999999 | |
| 0.97 | -2.00 | 0.85 | -2.00 | -1.55 | 151.77 | -54.96 | 96.60 | 0.8261 | 237.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.70 | -0.77 | 151.05 | -55.68 | 95.54 | 0.8319 | 491.0 | 367.4 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -0.82 | 150.83 | -55.90 | 95.56 | 0.8340 | 189.0 | 147.4 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -0.64 | 150.84 | -55.89 | 95.34 | 0.8337 | 307.0 | 261.8 | |
| 0.00 | 1.15 | 0.00 | 1.10 | -1.56 | 148.29 | -58.44 | 95.96 | 0.8584 | -288.0 | -227.8 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -2.48 | 147.36 | -59.37 | 96.84 | 0.8679 | -349.0 | -354.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
