SDO HMI 2014-09-29 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.86 | 59.82 | 2.40 | 29.66 | 7.64 | 207.60 | 1.41 | 305.82 | 0.0364 | -23.8 | 101.1 | |
|
previous
or next observation for the same group /

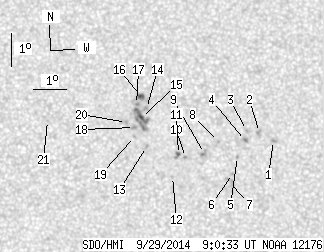

back to the solar disc SDO HMI 2014-09-29 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 0.96 | 7.38 | 210.57 | 4.38 | 278.02 | 0.0769 | -1074.0 | -852.5 | |
| 0.00 | 3.18 | 0.00 | 1.58 | 7.63 | 210.14 | 3.96 | 282.26 | 0.0704 | -915.0 | -804.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 7.69 | 209.75 | 3.57 | 284.49 | 0.0640 | -961.0 | -756.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 7.39 | 209.72 | 3.53 | 279.92 | 0.0623 | -1032.0 | -897.3 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 6.91 | 209.47 | 3.29 | 272.32 | 0.0572 | -939.0 | -803.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 6.40 | 209.31 | 3.13 | 263.07 | 0.0549 | -827.0 | -692.3 | |
| 0.00 | 5.65 | 0.00 | 2.80 | 6.13 | 209.25 | 3.07 | 258.00 | 0.0547 | -546.0 | -709.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.37 | 208.90 | 2.71 | 282.23 | 0.0483 | -882.0 | -706.3 | |
| 0.00 | 3.00 | 0.00 | 1.49 | 7.01 | 208.47 | 2.29 | 275.63 | 0.0400 | -1138.0 | -898.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.89 | 207.89 | 1.71 | 273.51 | 0.0298 | -942.0 | -712.8 | |
| 0.71 | 3.35 | 0.35 | 1.66 | 6.98 | 207.68 | 1.50 | 277.44 | 0.0263 | -870.9 | -740.1 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.32 | 207.50 | 1.32 | 250.40 | 0.0243 | 804.0 | 645.4 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 7.23 | 206.72 | 0.53 | 309.52 | 0.0120 | 976.0 | 737.4 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 8.37 | 206.72 | 0.54 | 341.42 | 0.0292 | 763.0 | 710.3 | |
| 2.21 | 17.91 | 1.09 | 8.87 | 8.10 | 206.57 | 0.38 | 343.81 | 0.0239 | 1101.2 | 740.0 | |
| 1.94 | 6.44 | 0.96 | 3.19 | 8.73 | 206.57 | 0.38 | 348.90 | 0.0346 | 1105.2 | 848.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 8.49 | 206.42 | 0.23 | 352.29 | 0.0300 | 1239.0 | 968.7 | |
| 0.00 | 2.65 | 0.00 | 1.31 | 7.80 | 206.35 | 0.17 | 350.48 | 0.0179 | 1059.0 | 813.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.53 | 206.35 | 0.17 | 347.11 | 0.0133 | 993.0 | 778.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.95 | 206.11 | -0.07 | 3.51 | 0.0203 | 976.0 | 708.9 | |
| 0.00 | 0.53 | 0.00 | 0.26 | 8.01 | 203.72 | -2.47 | 63.46 | 0.0479 | 850.0 | 655.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
