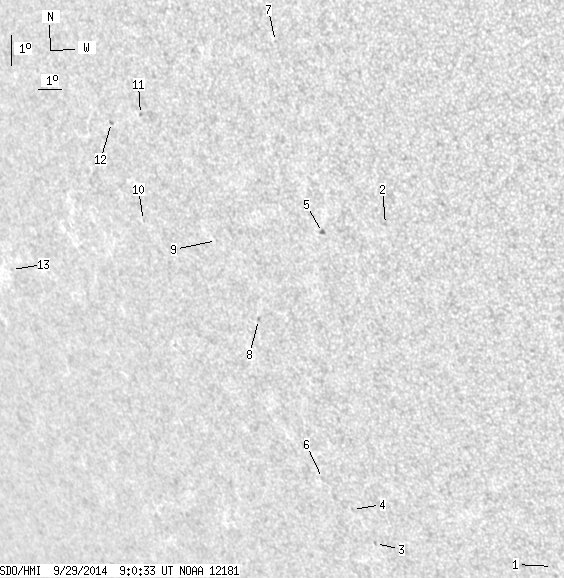

SDO HMI 2014-09-29 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.92 | 0.00 | 11.01 | -15.54 | 163.91 | -42.27 | 118.47 | 0.7408 | 228.3 | 180.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.43 | -23.83 | 173.61 | -32.57 | 134.99 | 0.6987 | 544.0 | 421.0 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -12.80 | 169.70 | -36.48 | 118.34 | 0.6611 | 642.0 | 455.0 | |
| 0.00 | 1.32 | 0.00 | 1.00 | -23.56 | 166.48 | -39.70 | 129.36 | 0.7596 | 510.0 | 419.9 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -22.44 | 165.90 | -40.28 | 127.74 | 0.7579 | 293.0 | 237.0 | |
| 0.00 | 2.47 | 0.00 | 1.69 | -13.24 | 167.16 | -39.03 | 117.34 | 0.6924 | 760.0 | 611.3 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -21.47 | 164.96 | -41.22 | 126.03 | 0.7607 | 396.0 | 332.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -7.34 | 166.19 | -39.99 | 108.77 | 0.6756 | 681.0 | 554.2 | |
| 0.00 | 1.32 | 0.00 | 0.98 | -16.30 | 163.82 | -42.36 | 119.28 | 0.7438 | 663.0 | 584.0 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.86 | 162.65 | -43.53 | 115.65 | 0.7442 | 515.0 | 378.1 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -13.49 | 159.53 | -46.65 | 113.72 | 0.7747 | -386.0 | -393.1 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -10.10 | 160.15 | -46.03 | 109.79 | 0.7554 | -626.0 | -516.5 | |
| 0.00 | 1.59 | 0.00 | 1.23 | -10.47 | 158.78 | -47.40 | 109.70 | 0.7712 | -565.0 | -416.9 | |
| 0.00 | 0.62 | 0.00 | 0.57 | -15.73 | 152.37 | -53.81 | 113.42 | 0.8487 | -459.0 | -437.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
