SDO HMI 2014-09-29 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.82 | 0.00 | 3.25 | -16.90 | 197.27 | -8.37 | 164.48 | 0.4338 | -695.7 | -554.8 | |
|
previous
or next observation for the same group /

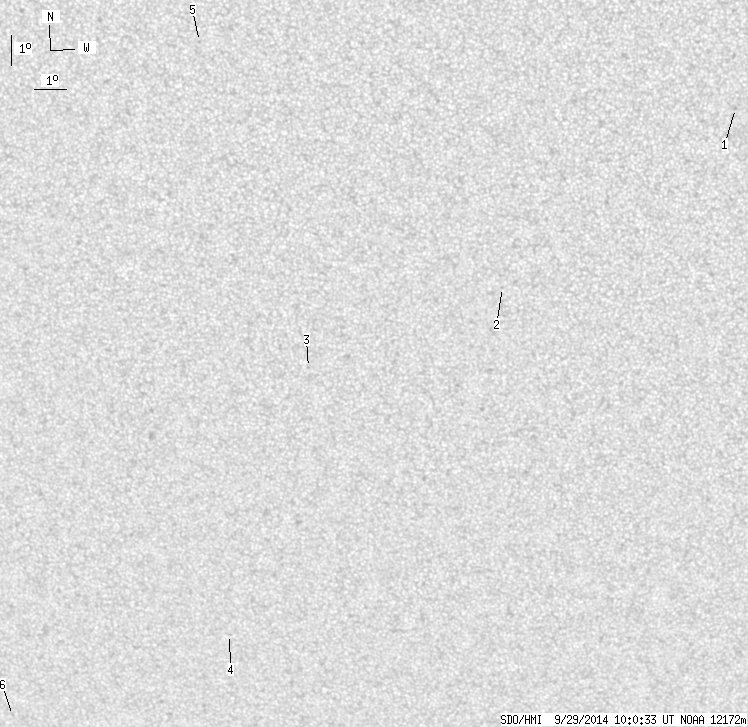

back to the solar disc SDO HMI 2014-09-29 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.96 | 209.31 | 3.68 | 193.15 | 0.2798 | -940.0 | -720.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.63 | 202.15 | -3.49 | 170.84 | 0.3713 | -722.0 | -545.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.32 | 195.95 | -9.69 | 158.45 | 0.4392 | -660.0 | -521.4 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -26.56 | 192.56 | -13.07 | 159.70 | 0.5854 | -646.0 | -616.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -7.02 | 192.98 | -12.66 | 137.31 | 0.3222 | -768.0 | -593.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -29.83 | 184.25 | -21.38 | 151.79 | 0.6713 | -438.0 | -237.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
