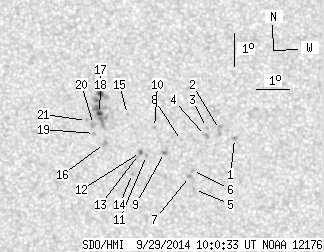

SDO HMI 2014-09-29 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 63.00 | 2.09 | 31.22 | 7.82 | 207.51 | 1.87 | 307.34 | 0.0422 | -258.1 | 185.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.75 | 7.35 | 210.59 | 4.96 | 276.78 | 0.0867 | -996.0 | -772.1 | |
| 0.00 | 4.85 | 0.00 | 2.41 | 7.62 | 210.14 | 4.51 | 280.84 | 0.0797 | -811.0 | -798.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.69 | 209.75 | 4.11 | 282.66 | 0.0732 | -954.0 | -768.8 | |
| 0.00 | 3.18 | 0.00 | 1.58 | 7.45 | 209.71 | 4.08 | 279.48 | 0.0718 | -988.0 | -764.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.83 | 209.37 | 3.73 | 255.69 | 0.0671 | -840.0 | -634.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 6.40 | 209.31 | 3.67 | 264.12 | 0.0643 | -981.0 | -763.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 6.22 | 209.22 | 3.58 | 261.13 | 0.0632 | -1089.0 | -910.3 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.30 | 208.98 | 3.35 | 278.99 | 0.0589 | -909.0 | -688.7 | |
| 0.00 | 2.21 | 0.00 | 1.09 | 6.95 | 208.47 | 2.83 | 273.38 | 0.0493 | -1180.0 | -954.2 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 7.70 | 208.17 | 2.53 | 290.06 | 0.0469 | -857.0 | -694.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 6.86 | 207.92 | 2.29 | 271.93 | 0.0398 | -977.0 | -826.6 | |
| 0.53 | 1.76 | 0.26 | 0.87 | 6.95 | 207.74 | 2.10 | 274.56 | 0.0367 | -989.5 | -793.4 | |
| 0.00 | 2.21 | 0.00 | 1.09 | 6.89 | 207.68 | 2.04 | 273.01 | 0.0356 | -795.0 | -677.0 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.32 | 207.49 | 1.86 | 255.92 | 0.0334 | 835.0 | 688.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 8.09 | 207.35 | 1.72 | 307.58 | 0.0376 | 741.0 | 461.2 | |
| 0.00 | 2.29 | 0.00 | 1.14 | 7.23 | 206.65 | 1.02 | 293.49 | 0.0193 | 917.0 | 797.3 | |
| 1.94 | 30.26 | 0.96 | 15.00 | 8.73 | 206.54 | 0.90 | 335.35 | 0.0374 | 1071.4 | 808.5 | |
| 1.76 | -17.00 | 0.87 | -17.00 | 8.13 | 206.50 | 0.87 | 327.31 | 0.0279 | 1147.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.53 | 206.35 | 0.71 | 316.20 | 0.0179 | 947.0 | 728.8 | |
| 0.00 | 3.18 | 0.00 | 1.57 | 7.80 | 206.32 | 0.69 | 326.07 | 0.0213 | 860.0 | 768.6 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.92 | 206.11 | 0.47 | 337.45 | 0.0214 | 853.0 | 660.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
