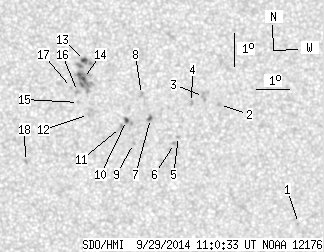

SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.33 | 58.92 | 2.13 | 29.23 | 7.78 | 207.40 | 2.32 | 297.21 | 0.0492 | -183.0 | 223.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.35 | 3.76 | 212.98 | 7.89 | 249.30 | 0.1471 | -864.0 | -680.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.36 | 210.62 | 5.54 | 276.36 | 0.0967 | -968.0 | -772.3 | |
| 0.00 | 3.70 | 0.00 | 1.84 | 7.61 | 210.14 | 5.05 | 279.66 | 0.0889 | -980.0 | -805.1 | |
| 0.00 | 2.21 | 0.00 | 1.10 | 7.43 | 209.77 | 4.68 | 278.24 | 0.0822 | -924.0 | -774.4 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 6.42 | 209.37 | 4.28 | 265.31 | 0.0748 | -860.0 | -702.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 6.21 | 209.24 | 4.16 | 262.29 | 0.0731 | -1039.0 | -830.5 | |
| 0.71 | 1.68 | 0.35 | 0.83 | 6.97 | 208.52 | 3.44 | 273.24 | 0.0599 | -1080.4 | -917.2 | |
| 0.00 | 2.29 | 0.00 | 1.14 | 7.69 | 208.26 | 3.17 | 286.22 | 0.0573 | -982.0 | -727.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 6.22 | 208.00 | 2.92 | 259.12 | 0.0517 | 560.0 | 271.9 | |
| 1.06 | 3.44 | 0.52 | 1.71 | 6.91 | 207.80 | 2.71 | 272.85 | 0.0472 | -962.9 | -782.3 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 6.70 | 207.61 | 2.53 | 268.26 | 0.0440 | -824.0 | -798.2 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 7.10 | 206.65 | 1.56 | 281.51 | 0.0277 | 764.0 | 726.6 | |
| 1.50 | 30.96 | 0.74 | 15.35 | 8.72 | 206.53 | 1.45 | 323.56 | 0.0422 | 1030.0 | 766.2 | |
| 1.06 | -13.00 | 0.52 | -13.00 | 8.18 | 206.50 | 1.41 | 314.94 | 0.0347 | 1245.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.46 | 206.35 | 1.26 | 298.43 | 0.0249 | 760.0 | 644.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 7.79 | 206.32 | 1.23 | 309.55 | 0.0277 | 971.0 | 825.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.91 | 206.14 | 1.05 | 317.33 | 0.0269 | 890.0 | 699.8 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 5.69 | 204.74 | -0.35 | 162.48 | 0.0201 | 910.0 | 751.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
