SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.87 | 533.90 | 78.10 | 330.19 | 12.06 | 168.27 | -36.82 | 78.84 | 0.5989 | 81.5 | 124.7 | |
|
previous
or next observation for the same group /

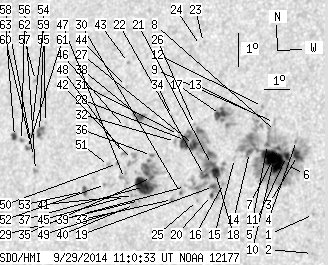

back to the solar disc SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.57 | 10.62 | 172.37 | -32.72 | 80.87 | 0.5402 | -690.0 | -562.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 9.45 | 172.46 | -32.63 | 83.04 | 0.5379 | -744.0 | -610.0 | |
| 7.41 | 220.95 | 4.40 | 132.60 | 12.36 | 171.55 | -33.54 | 77.84 | 0.5542 | -1018.6 | -274.5 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 12.81 | 171.45 | -33.64 | 77.05 | 0.5564 | -483.0 | -469.5 | |
| 3.44 | -3.00 | 2.05 | -3.00 | 12.30 | 171.15 | -33.94 | 78.01 | 0.5598 | -902.7 | 999999 | |
| 1.94 | -3.00 | 1.16 | -3.00 | 12.03 | 171.19 | -33.90 | 78.49 | 0.5588 | -1104.5 | 999999 | |
| 1.32 | -3.00 | 0.79 | -3.00 | 12.52 | 170.82 | -34.27 | 77.68 | 0.5648 | -597.6 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.11 | 13.03 | 170.63 | -34.46 | 76.84 | 0.5683 | -383.0 | -373.1 | |
| 0.00 | 2.38 | 0.00 | 1.43 | 13.30 | 170.55 | -34.54 | 76.38 | 0.5699 | -423.0 | -420.7 | |
| 31.31 | -3.00 | 18.78 | -3.00 | 12.15 | 170.69 | -34.40 | 78.37 | 0.5660 | -922.4 | 999999 | |
| 0.88 | -3.00 | 0.53 | -3.00 | 12.62 | 170.40 | -34.69 | 77.60 | 0.5709 | -374.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 13.75 | 170.02 | -35.06 | 75.72 | 0.5780 | 228.0 | 234.7 | |
| 0.00 | 3.26 | 0.00 | 1.98 | 13.49 | 169.80 | -35.29 | 76.21 | 0.5806 | -155.0 | -154.0 | |
| 2.12 | -3.00 | 1.28 | -3.00 | 12.33 | 169.76 | -35.33 | 78.21 | 0.5793 | -567.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.97 | 12.12 | 169.23 | -35.86 | 78.67 | 0.5864 | -320.0 | -307.4 | |
| 0.00 | 1.41 | 0.00 | 0.86 | 11.34 | 168.93 | -36.16 | 80.03 | 0.5896 | -692.0 | -637.3 | |
| 7.76 | 27.70 | 4.79 | 17.05 | 13.40 | 168.48 | -36.61 | 76.63 | 0.5985 | 830.8 | 581.8 | |
| 6.88 | 107.43 | 4.23 | 66.60 | 11.65 | 168.57 | -36.51 | 79.55 | 0.5948 | -620.5 | 348.1 | |
| 2.03 | 13.85 | 1.25 | 8.50 | 11.22 | 168.56 | -36.53 | 80.27 | 0.5946 | 379.3 | 488.5 | |
| 1.06 | -19.00 | 0.65 | -19.00 | 10.95 | 168.52 | -36.56 | 80.73 | 0.5948 | 710.1 | 999999 | |
| 3.09 | -18.00 | 1.90 | -18.00 | 11.88 | 168.39 | -36.70 | 79.19 | 0.5976 | 296.4 | 999999 | |
| 2.82 | -18.00 | 1.74 | -18.00 | 11.53 | 168.17 | -36.92 | 79.80 | 0.6002 | -549.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 15.52 | 167.40 | -37.68 | 73.39 | 0.6169 | -609.0 | -528.8 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 15.43 | 167.31 | -37.78 | 73.58 | 0.6180 | -560.0 | -477.6 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 10.76 | 168.01 | -37.07 | 81.09 | 0.6017 | 708.0 | 609.6 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 13.03 | 167.54 | -37.55 | 77.41 | 0.6107 | 589.0 | 487.8 | |
| 6.26 | -18.00 | 3.90 | -18.00 | 12.43 | 167.60 | -37.49 | 78.38 | 0.6090 | 1017.2 | 999999 | |
| 9.79 | -18.00 | 6.13 | -18.00 | 12.53 | 167.27 | -37.81 | 78.27 | 0.6135 | 743.1 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 11.15 | 167.50 | -37.59 | 80.50 | 0.6091 | -409.0 | -325.5 | |
| 0.53 | 2.73 | 0.33 | 1.71 | 10.96 | 167.33 | -37.76 | 80.83 | 0.6112 | 726.3 | 275.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 12.69 | 166.97 | -38.12 | 78.05 | 0.6178 | 345.0 | 272.3 | |
| 0.00 | 2.38 | 0.00 | 1.50 | 12.47 | 166.89 | -38.20 | 78.42 | 0.6186 | 487.0 | 438.7 | |
| 0.00 | 2.38 | 0.00 | 1.49 | 10.72 | 167.05 | -38.03 | 81.23 | 0.6148 | 765.0 | 673.9 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 13.24 | 166.60 | -38.49 | 77.22 | 0.6235 | -302.0 | -312.3 | |
| 1.68 | 58.13 | 1.06 | 36.97 | 11.33 | 166.14 | -38.95 | 80.34 | 0.6275 | 1082.2 | 706.4 | |
| 0.53 | 1.59 | 0.34 | 1.01 | 11.98 | 166.03 | -39.06 | 79.30 | 0.6296 | 707.8 | 590.2 | |
| 21.17 | -35.00 | 13.48 | -35.00 | 11.04 | 165.91 | -39.18 | 80.82 | 0.6304 | 902.4 | 999999 | |
| 3.09 | 7.50 | 1.98 | 4.82 | 13.09 | 165.39 | -39.70 | 77.64 | 0.6392 | 757.5 | 612.6 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 10.60 | 165.78 | -39.31 | 81.52 | 0.6319 | 728.0 | 653.4 | |
| 0.00 | 4.15 | 0.00 | 2.65 | 10.47 | 165.60 | -39.49 | 81.74 | 0.6342 | 569.0 | 510.5 | |
| 0.00 | 2.29 | 0.00 | 1.47 | 10.73 | 165.52 | -39.57 | 81.33 | 0.6354 | 563.0 | 552.3 | |
| 0.00 | 7.94 | 0.00 | 5.10 | 11.81 | 165.30 | -39.79 | 79.65 | 0.6390 | 422.0 | 610.8 | |
| 0.00 | 1.32 | 0.00 | 0.86 | 14.71 | 164.57 | -40.52 | 75.27 | 0.6521 | 677.0 | 571.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 13.98 | 164.64 | -40.45 | 76.37 | 0.6500 | 490.0 | 373.5 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 10.68 | 165.21 | -39.88 | 81.43 | 0.6395 | 343.0 | 253.8 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 12.75 | 164.85 | -40.24 | 78.24 | 0.6458 | 427.0 | 337.3 | |
| 0.00 | 7.59 | 0.00 | 4.89 | 11.22 | 165.08 | -40.01 | 80.60 | 0.6415 | 545.0 | 452.9 | |
| 0.00 | 2.38 | 0.00 | 1.54 | 11.96 | 164.91 | -40.17 | 79.45 | 0.6442 | 532.0 | 431.8 | |
| 0.00 | 1.59 | 0.00 | 1.02 | 10.24 | 165.00 | -40.09 | 82.13 | 0.6421 | 149.0 | 154.3 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 11.65 | 164.73 | -40.36 | 79.96 | 0.6464 | 463.0 | 384.9 | |
| 0.00 | 3.00 | 0.00 | 1.95 | 11.56 | 164.38 | -40.71 | 80.13 | 0.6509 | -569.0 | -462.9 | |
| 0.00 | 1.59 | 0.00 | 1.03 | 10.98 | 164.35 | -40.73 | 81.02 | 0.6508 | -682.0 | -562.8 | |
| 2.73 | 4.41 | 1.80 | 2.90 | 10.71 | 163.54 | -41.54 | 81.48 | 0.6612 | -713.8 | -542.3 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 12.65 | 161.55 | -43.54 | 78.74 | 0.6876 | 702.0 | 613.0 | |
| 3.35 | 8.38 | 2.29 | 5.71 | 12.36 | 161.35 | -43.73 | 79.17 | 0.6898 | 762.1 | 698.0 | |
| 0.00 | 2.38 | 0.00 | 1.62 | 11.18 | 161.42 | -43.67 | 80.89 | 0.6884 | 716.0 | 585.7 | |
| 0.00 | 2.38 | 0.00 | 1.64 | 13.87 | 160.84 | -44.24 | 77.04 | 0.6974 | 700.0 | 521.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 11.59 | 161.25 | -43.83 | 80.30 | 0.6906 | 653.0 | 594.3 | |
| 0.44 | 1.76 | 0.30 | 1.21 | 12.24 | 161.04 | -44.05 | 79.37 | 0.6937 | 639.0 | 546.7 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 11.97 | 161.05 | -44.04 | 79.76 | 0.6933 | 754.0 | 689.8 | |
| 0.97 | 2.47 | 0.67 | 1.70 | 11.81 | 160.95 | -44.13 | 80.00 | 0.6944 | 681.9 | 588.9 | |
| 0.62 | 2.21 | 0.43 | 1.52 | 12.03 | 160.65 | -44.44 | 79.70 | 0.6983 | 560.0 | 468.3 | |
| 2.65 | 4.76 | 1.84 | 3.30 | 12.12 | 160.33 | -44.76 | 79.59 | 0.7023 | 442.2 | 290.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
