SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.69 | 184.62 | 27.77 | 152.27 | -1.26 | 152.47 | -52.62 | 96.72 | 0.8021 | 594.3 | 266.3 | |
|
previous
or next observation for the same group /

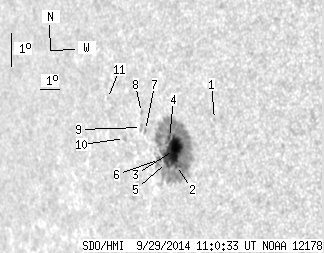

back to the solar disc SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.83 | -0.13 | 154.61 | -50.48 | 95.74 | 0.7775 | -235.0 | -232.5 | |
| 0.26 | 174.99 | 0.22 | 144.07 | -1.70 | 152.73 | -52.35 | 97.32 | 0.8002 | 727.7 | 277.5 | |
| 28.84 | -2.00 | 23.74 | -2.00 | -1.26 | 152.60 | -52.49 | 96.74 | 0.8008 | 752.2 | 999999 | |
| 1.41 | -2.00 | 1.16 | -2.00 | -0.88 | 152.41 | -52.67 | 96.24 | 0.8021 | 473.2 | 999999 | |
| 2.12 | -2.00 | 1.76 | -2.00 | -1.66 | 152.24 | -52.85 | 97.16 | 0.8052 | 459.8 | 999999 | |
| 1.06 | -2.00 | 0.89 | -2.00 | -1.60 | 151.89 | -53.20 | 97.01 | 0.8086 | 256.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.35 | -0.78 | 151.20 | -53.88 | 95.88 | 0.8142 | 377.0 | 364.8 | |
| 0.00 | 1.50 | 0.00 | 1.28 | -0.26 | 151.01 | -54.08 | 95.21 | 0.8154 | 459.0 | 356.9 | |
| 0.00 | 2.65 | 0.00 | 2.26 | -0.71 | 151.00 | -54.09 | 95.76 | 0.8162 | 385.0 | 309.3 | |
| 0.00 | 2.21 | 0.00 | 1.93 | -1.13 | 150.10 | -54.99 | 96.09 | 0.8257 | -305.0 | -190.3 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -0.01 | 149.22 | -55.87 | 94.59 | 0.8326 | -350.0 | -368.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
