SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 12.51 | 1.04 | 9.04 | -13.92 | 163.42 | -41.67 | 116.80 | 0.7265 | 284.4 | 183.3 | |
|
previous
or next observation for the same group /

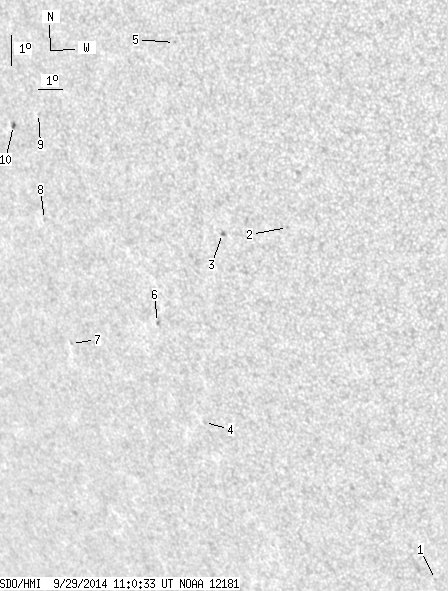

back to the solar disc SDO HMI 2014-09-29 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.55 | -24.33 | 172.80 | -32.28 | 135.78 | 0.7002 | 534.0 | 441.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -12.88 | 169.74 | -35.35 | 119.21 | 0.6484 | 625.0 | 417.9 | |
| 0.35 | 1.94 | 0.24 | 1.31 | -13.26 | 167.17 | -37.92 | 118.03 | 0.6800 | 724.5 | 602.0 | |
| 0.00 | 1.23 | 0.00 | 0.91 | -19.57 | 164.91 | -40.18 | 124.49 | 0.7399 | 602.0 | 493.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -7.35 | 166.16 | -38.93 | 109.30 | 0.6626 | 598.0 | 528.7 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -16.38 | 163.85 | -41.24 | 120.00 | 0.7327 | 673.0 | 604.3 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -17.40 | 159.83 | -45.26 | 119.04 | 0.7775 | 457.0 | 353.1 | |
| 0.00 | 1.32 | 0.00 | 1.01 | -13.41 | 159.76 | -45.33 | 114.21 | 0.7608 | -457.0 | -311.5 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -10.03 | 160.21 | -44.88 | 110.19 | 0.7426 | -627.0 | -490.9 | |
| 1.06 | 2.38 | 0.80 | 1.80 | -10.51 | 159.03 | -46.06 | 110.29 | 0.7571 | -559.9 | -429.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
