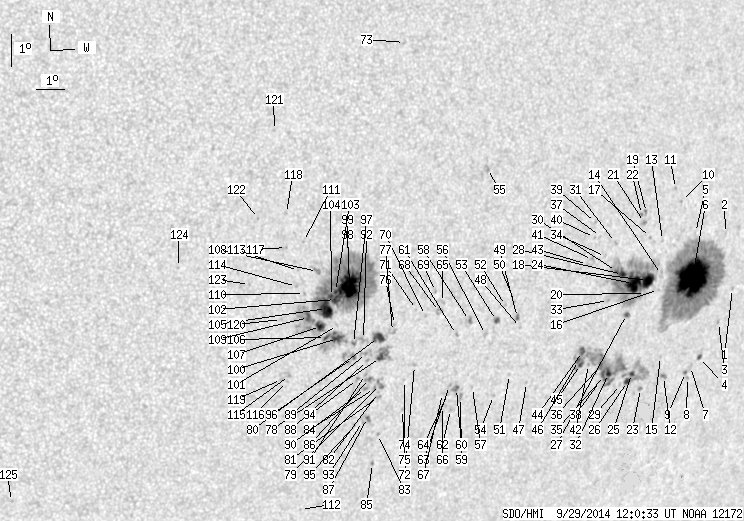

SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.46 | 1179.41 | 144.67 | 786.68 | -11.30 | 242.25 | 37.71 | 244.02 | 0.6652 | 58.6 | 13.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.86 | -11.40 | 249.85 | 45.31 | 248.28 | 0.7525 | 350.0 | 329.6 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -9.62 | 249.21 | 44.68 | 250.26 | 0.7388 | -317.0 | -360.6 | |
| 0.00 | 1.32 | 0.00 | 0.99 | -12.43 | 249.46 | 44.92 | 246.80 | 0.7525 | -399.0 | -356.7 | |
| 1.41 | 2.65 | 1.05 | 1.98 | -13.49 | 248.87 | 44.33 | 245.21 | 0.7508 | 463.4 | 381.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -9.48 | 247.92 | 43.38 | 249.88 | 0.7238 | 449.0 | 367.3 | |
| 75.40 | 356.90 | 54.54 | 258.29 | -10.89 | 248.03 | 43.49 | 248.09 | 0.7308 | 1117.2 | 326.5 | |
| 0.00 | 1.85 | 0.00 | 1.38 | -13.75 | 248.54 | 44.00 | 244.73 | 0.7485 | -190.0 | -128.7 | |
| 0.00 | 1.50 | 0.00 | 1.12 | -14.10 | 248.50 | 43.96 | 244.28 | 0.7496 | -341.0 | -222.1 | |
| 0.62 | 1.76 | 0.46 | 1.31 | -13.92 | 248.37 | 43.83 | 244.43 | 0.7475 | -488.7 | -407.6 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -8.45 | 247.18 | 42.64 | 250.91 | 0.7114 | 758.0 | 684.5 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -8.02 | 246.88 | 42.34 | 251.35 | 0.7062 | 561.0 | 520.6 | |
| 0.79 | 2.65 | 0.58 | 1.94 | -13.97 | 247.44 | 42.90 | 243.89 | 0.7380 | -662.3 | -449.6 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -9.61 | 246.56 | 42.02 | 249.08 | 0.7090 | 605.0 | 589.7 | |
| 0.00 | 3.00 | 0.00 | 2.12 | -10.69 | 246.70 | 42.16 | 247.72 | 0.7150 | 515.0 | 475.5 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -13.31 | 247.16 | 42.62 | 244.58 | 0.7320 | 544.0 | 454.6 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -11.15 | 246.65 | 42.11 | 247.09 | 0.7166 | 436.0 | 395.6 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -9.48 | 246.05 | 41.51 | 249.01 | 0.7025 | 637.0 | 596.6 | |
| 11.55 | 147.72 | 8.10 | 102.40 | -10.83 | 246.14 | 41.60 | 247.26 | 0.7094 | 871.3 | 512.3 | |
| 0.00 | 1.85 | 0.00 | 1.27 | -8.68 | 245.78 | 41.24 | 249.96 | 0.6959 | 849.0 | 706.7 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -11.24 | 246.13 | 41.59 | 246.72 | 0.7111 | 147.0 | 160.8 | |
| 0.00 | 2.38 | 0.00 | 1.64 | -8.99 | 245.74 | 41.20 | 249.53 | 0.6968 | 937.0 | 744.8 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -8.72 | 245.58 | 41.04 | 249.81 | 0.6938 | 791.0 | 725.0 | |
| 0.44 | 1.94 | 0.32 | 1.40 | -14.28 | 246.54 | 42.00 | 243.03 | 0.7299 | -559.2 | -407.1 | |
| 16.23 | -18.00 | 11.27 | -18.00 | -10.88 | 245.58 | 41.04 | 246.91 | 0.7033 | 1123.1 | 999999 | |
| 1.76 | 121.17 | 1.26 | 85.01 | -13.76 | 246.05 | 41.51 | 243.42 | 0.7222 | -451.4 | -63.7 | |
| 2.91 | -25.00 | 2.08 | -25.00 | -14.01 | 245.94 | 41.40 | 243.04 | 0.7222 | -477.1 | 999999 | |
| 1.59 | 3.26 | 1.11 | 2.28 | -11.84 | 245.46 | 40.92 | 245.58 | 0.7064 | 839.6 | 716.7 | |
| 3.35 | -18.00 | 2.30 | -18.00 | -10.55 | 245.08 | 40.54 | 247.08 | 0.6961 | 994.7 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.32 | -14.08 | 245.66 | 41.13 | 242.80 | 0.7196 | -556.0 | -350.1 | |
| 1.15 | -18.00 | 0.78 | -18.00 | -10.44 | 244.82 | 40.28 | 247.10 | 0.6926 | 973.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.08 | -9.52 | 244.64 | 40.11 | 248.26 | 0.6863 | 639.0 | 540.3 | |
| 2.47 | -25.00 | 1.73 | -25.00 | -13.68 | 245.09 | 40.55 | 242.98 | 0.7113 | -750.9 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -11.34 | 244.65 | 40.11 | 245.81 | 0.6948 | 712.0 | 658.1 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -9.93 | 244.30 | 39.77 | 247.52 | 0.6842 | 721.0 | 638.2 | |
| 3.97 | -25.00 | 2.78 | -25.00 | -13.73 | 244.93 | 40.40 | 242.83 | 0.7099 | -766.9 | 999999 | |
| 2.47 | -25.00 | 1.72 | -25.00 | -13.40 | 244.70 | 40.16 | 243.13 | 0.7057 | -528.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -9.28 | 244.02 | 39.48 | 248.26 | 0.6778 | 585.0 | 448.6 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -13.91 | 244.77 | 40.23 | 242.50 | 0.7091 | -543.0 | -485.6 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -8.83 | 243.76 | 39.22 | 248.76 | 0.6726 | -514.0 | -408.8 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -9.30 | 243.78 | 39.24 | 248.12 | 0.6750 | 372.0 | 425.9 | |
| 0.00 | 2.20 | 0.00 | 1.48 | -9.98 | 243.80 | 39.26 | 247.18 | 0.6785 | 798.0 | 683.8 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -13.32 | 244.20 | 39.67 | 242.94 | 0.6998 | -539.0 | -446.3 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -10.13 | 243.62 | 39.08 | 246.89 | 0.6771 | 580.0 | 523.4 | |
| 3.00 | -25.00 | 2.06 | -25.00 | -12.89 | 243.88 | 39.34 | 243.32 | 0.6939 | 286.6 | 999999 | |
| 1.76 | -25.00 | 1.21 | -25.00 | -13.30 | 243.88 | 39.34 | 242.78 | 0.6961 | -664.2 | 999999 | |
| 1.68 | -25.00 | 1.15 | -25.00 | -13.16 | 243.77 | 39.23 | 242.89 | 0.6942 | -740.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -13.71 | 241.82 | 37.29 | 240.96 | 0.6754 | 695.0 | 589.0 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -11.93 | 241.29 | 36.75 | 243.03 | 0.6591 | 642.0 | 512.9 | |
| 0.97 | 2.65 | 0.63 | 1.73 | -11.60 | 241.12 | 36.58 | 243.38 | 0.6553 | 766.1 | 607.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -11.08 | 240.93 | 36.39 | 243.98 | 0.6502 | 754.0 | 624.1 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -13.40 | 241.11 | 36.57 | 240.91 | 0.6656 | 518.0 | 380.7 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -11.18 | 240.60 | 36.06 | 243.63 | 0.6468 | 646.0 | 494.9 | |
| 1.59 | 3.09 | 1.03 | 2.00 | -11.64 | 240.33 | 35.79 | 242.82 | 0.6462 | -623.4 | -433.2 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -14.04 | 240.61 | 36.07 | 239.72 | 0.6637 | 673.0 | 564.5 | |
| 0.00 | 3.17 | 0.00 | 1.98 | -6.84 | 239.44 | 34.90 | 249.32 | 0.6094 | -592.0 | -504.9 | |
| 0.00 | 2.47 | 0.00 | 1.60 | -12.05 | 239.97 | 35.43 | 242.00 | 0.6444 | 532.0 | 474.6 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -13.72 | 239.75 | 35.21 | 239.55 | 0.6520 | 673.0 | 519.3 | |
| 0.00 | 3.17 | 0.00 | 2.03 | -11.56 | 239.30 | 34.76 | 242.23 | 0.6335 | 835.0 | 688.9 | |
| 0.00 | 3.17 | 0.00 | 2.06 | -14.01 | 239.35 | 34.81 | 238.87 | 0.6493 | 614.0 | 504.6 | |
| 0.97 | 5.47 | 0.63 | 3.54 | -13.71 | 239.14 | 34.60 | 239.13 | 0.6451 | 828.9 | 654.1 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -11.97 | 238.87 | 34.33 | 241.35 | 0.6310 | 758.0 | 646.0 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -14.37 | 239.03 | 34.49 | 238.15 | 0.6481 | 478.0 | 442.4 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -13.59 | 238.86 | 34.32 | 239.09 | 0.6411 | 571.0 | 581.4 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -13.88 | 238.83 | 34.29 | 238.68 | 0.6426 | 682.0 | 591.6 | |
| 0.00 | 2.12 | 0.00 | 1.33 | -10.92 | 238.21 | 33.67 | 242.40 | 0.6166 | -536.0 | -500.5 | |
| 0.00 | 3.44 | 0.00 | 2.22 | -14.25 | 238.71 | 34.17 | 238.07 | 0.6437 | 432.0 | 382.9 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -13.83 | 238.64 | 34.10 | 238.59 | 0.6401 | 397.0 | 350.1 | |
| 0.00 | 3.26 | 0.00 | 2.05 | -11.20 | 238.14 | 33.60 | 241.94 | 0.6174 | -529.0 | -586.5 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -10.55 | 237.91 | 33.37 | 242.72 | 0.6106 | -589.0 | -548.6 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -11.29 | 237.63 | 33.09 | 241.44 | 0.6119 | -487.0 | -435.6 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -11.08 | 237.28 | 32.74 | 241.49 | 0.6062 | -624.0 | -526.2 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -12.86 | 237.45 | 32.91 | 239.05 | 0.6199 | 860.0 | 701.6 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -2.76 | 236.21 | 31.68 | 254.22 | 0.5472 | -529.0 | -502.2 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -13.31 | 237.15 | 32.61 | 238.17 | 0.6195 | -482.0 | -331.3 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -14.25 | 237.22 | 32.68 | 236.93 | 0.6268 | -662.0 | -561.5 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.50 | 236.53 | 31.99 | 240.30 | 0.5999 | -640.0 | -539.6 | |
| 0.00 | 3.44 | 0.00 | 2.13 | -11.72 | 236.49 | 31.95 | 239.95 | 0.6008 | -305.0 | -469.7 | |
| 3.00 | 17.20 | 1.86 | 10.66 | -12.52 | 236.16 | 31.62 | 238.52 | 0.6024 | -702.9 | -409.4 | |
| 0.00 | 4.32 | 0.00 | 2.69 | -13.38 | 236.28 | 31.74 | 237.38 | 0.6099 | -707.0 | -598.0 | |
| 6.88 | 12.08 | 4.24 | 7.44 | -11.87 | 236.00 | 31.46 | 239.33 | 0.5960 | -911.8 | -615.3 | |
| 0.00 | 2.29 | 0.00 | 1.43 | -13.77 | 236.26 | 31.73 | 236.83 | 0.6124 | -709.0 | -554.2 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -13.64 | 236.25 | 31.71 | 236.99 | 0.6113 | -774.0 | -594.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -15.00 | 236.42 | 31.88 | 235.26 | 0.6232 | -575.0 | -563.1 | |
| 0.00 | 2.47 | 0.00 | 1.54 | -13.50 | 236.08 | 31.54 | 237.05 | 0.6084 | -748.0 | -607.4 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -15.93 | 236.40 | 31.86 | 233.98 | 0.6298 | -827.0 | -653.9 | |
| 0.71 | 4.50 | 0.44 | 2.79 | -13.16 | 235.85 | 31.31 | 237.34 | 0.6033 | -764.1 | -650.1 | |
| 0.53 | 2.29 | 0.33 | 1.44 | -14.42 | 235.96 | 31.43 | 235.67 | 0.6138 | -860.7 | -723.2 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -12.58 | 235.70 | 31.16 | 238.05 | 0.5974 | -687.0 | -590.4 | |
| 0.00 | 6.70 | 0.00 | 4.12 | -12.36 | 235.63 | 31.09 | 238.32 | 0.5950 | -877.0 | -654.7 | |
| 0.00 | 1.85 | 0.00 | 1.15 | -13.48 | 235.75 | 31.21 | 236.81 | 0.6044 | -688.0 | -637.3 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -13.03 | 235.69 | 31.15 | 237.40 | 0.6004 | -809.0 | -673.8 | |
| 0.00 | 3.97 | 0.00 | 2.43 | -11.90 | 235.46 | 30.93 | 238.85 | 0.5898 | -880.0 | -701.8 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -14.54 | 235.80 | 31.26 | 235.37 | 0.6128 | -591.0 | -497.4 | |
| 0.00 | 1.94 | 0.00 | 1.20 | -13.17 | 235.42 | 30.88 | 236.97 | 0.5983 | -894.0 | -669.3 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -14.65 | 235.53 | 30.99 | 234.98 | 0.6105 | -678.0 | -514.0 | |
| 0.35 | 12.17 | 0.22 | 7.44 | -12.45 | 235.18 | 30.64 | 237.80 | 0.5903 | -684.8 | -572.0 | |
| 0.53 | 2.56 | 0.32 | 1.56 | -12.01 | 235.12 | 30.58 | 238.41 | 0.5864 | -855.7 | -703.3 | |
| 27.87 | 268.62 | 16.76 | 161.34 | -10.19 | 234.77 | 30.23 | 240.87 | 0.5695 | -1146.6 | -409.5 | |
| 0.79 | -98.00 | 0.48 | -98.00 | -9.78 | 234.69 | 30.15 | 241.45 | 0.5657 | -1057.7 | 999999 | |
| 5.03 | 30.07 | 3.04 | 18.19 | -11.81 | 234.53 | 29.99 | 238.19 | 0.5779 | -866.2 | -523.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -11.40 | 234.48 | 29.94 | 238.78 | 0.5743 | -381.0 | -310.3 | |
| 3.53 | -98.00 | 2.12 | -98.00 | -10.57 | 234.32 | 29.78 | 239.91 | 0.5664 | -1026.9 | 999999 | |
| 1.15 | -98.00 | 0.69 | -98.00 | -10.32 | 234.29 | 29.75 | 240.28 | 0.5643 | -1339.9 | 999999 | |
| 2.20 | -98.00 | 1.32 | -98.00 | -10.47 | 234.16 | 29.62 | 239.94 | 0.5638 | -1170.0 | 999999 | |
| 16.76 | -98.00 | 10.04 | -98.00 | -10.83 | 234.03 | 29.49 | 239.25 | 0.5647 | -1103.1 | 999999 | |
| 1.23 | -100.00 | 0.74 | -100.00 | -11.75 | 234.09 | 29.56 | 237.91 | 0.5722 | -703.0 | 999999 | |
| 5.38 | 48.24 | 3.23 | 28.80 | -11.39 | 233.88 | 29.34 | 238.26 | 0.5669 | -938.0 | -593.5 | |
| 0.00 | 3.70 | 0.00 | 2.19 | -9.65 | 233.59 | 29.05 | 240.74 | 0.5509 | -932.0 | -744.2 | |
| 3.44 | -107.00 | 2.05 | -107.00 | -11.08 | 233.42 | 28.88 | 238.34 | 0.5591 | -1035.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -10.31 | 233.20 | 28.66 | 239.34 | 0.5507 | -704.0 | -596.0 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -8.68 | 233.02 | 28.48 | 241.83 | 0.5369 | 282.0 | 319.7 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -17.28 | 234.01 | 29.47 | 230.08 | 0.6148 | -525.0 | -444.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -9.58 | 232.92 | 28.38 | 240.27 | 0.5419 | -704.0 | -571.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -10.08 | 232.90 | 28.36 | 239.45 | 0.5452 | -771.0 | -649.0 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -12.89 | 232.96 | 28.43 | 235.18 | 0.5674 | -748.0 | -580.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -13.08 | 232.92 | 28.38 | 234.86 | 0.5683 | -639.0 | -548.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -8.83 | 232.45 | 27.91 | 241.07 | 0.5305 | -651.0 | -574.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -7.77 | 232.36 | 27.82 | 242.79 | 0.5221 | -646.0 | -542.1 | |
| 0.00 | 1.85 | 0.00 | 1.11 | -13.00 | 232.70 | 28.16 | 234.76 | 0.5652 | -738.0 | -637.2 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -11.09 | 232.48 | 27.94 | 237.46 | 0.5476 | -749.0 | -559.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -5.18 | 231.80 | 27.26 | 246.94 | 0.4979 | -760.0 | -622.5 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -7.87 | 231.41 | 26.88 | 241.77 | 0.5103 | -778.0 | -610.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -9.92 | 231.27 | 26.73 | 238.17 | 0.5235 | -670.0 | -570.3 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -9.26 | 228.82 | 24.28 | 236.76 | 0.4872 | -654.0 | -554.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -16.48 | 223.91 | 19.37 | 219.31 | 0.5042 | -596.0 | -412.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
