SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.62 | 54.59 | 3.28 | 27.08 | 7.62 | 207.68 | 3.14 | 287.93 | 0.0600 | -216.1 | -35.6 | |
|
previous
or next observation for the same group /

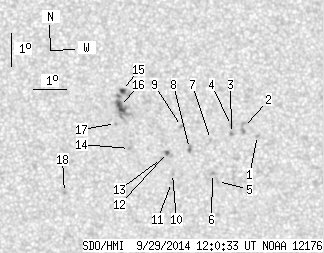

back to the solar disc SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.83 | 7.36 | 210.60 | 6.06 | 275.81 | 0.1057 | -936.0 | -730.8 | |
| 0.00 | 5.03 | 0.00 | 2.50 | 7.60 | 210.17 | 5.63 | 278.67 | 0.0989 | -623.0 | -800.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 7.43 | 209.81 | 5.27 | 277.33 | 0.0922 | -1109.0 | -894.9 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 7.67 | 209.81 | 5.27 | 279.91 | 0.0928 | -1064.0 | -877.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 5.99 | 209.36 | 4.83 | 260.88 | 0.0851 | -857.0 | -716.2 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 6.23 | 209.22 | 4.68 | 263.49 | 0.0819 | -1070.0 | -923.2 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.25 | 209.17 | 4.63 | 276.12 | 0.0808 | -865.0 | -653.7 | |
| 0.00 | 2.91 | 0.00 | 1.45 | 6.99 | 208.53 | 3.99 | 273.21 | 0.0694 | -1054.0 | -906.3 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 7.65 | 208.29 | 3.75 | 283.37 | 0.0669 | -1013.0 | -736.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 6.24 | 208.00 | 3.47 | 261.28 | 0.0611 | -106.0 | 129.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 5.97 | 207.97 | 3.43 | 256.84 | 0.0614 | 920.0 | 636.6 | |
| 0.71 | 4.06 | 0.35 | 2.01 | 6.88 | 207.86 | 3.32 | 271.78 | 0.0578 | -1082.2 | -781.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 6.70 | 207.67 | 3.14 | 268.58 | 0.0546 | -986.0 | -746.7 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 7.00 | 206.71 | 2.17 | 275.94 | 0.0379 | 794.0 | 682.6 | |
| 1.68 | 23.99 | 0.83 | 11.89 | 8.75 | 206.51 | 1.97 | 315.30 | 0.0485 | 956.4 | 738.5 | |
| 4.23 | -15.00 | 2.10 | -15.00 | 8.27 | 206.44 | 1.90 | 308.25 | 0.0421 | 1238.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.52 | 7.76 | 206.29 | 1.75 | 299.36 | 0.0349 | 900.0 | 780.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 5.69 | 204.74 | 0.20 | 190.35 | 0.0195 | 970.0 | 756.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
