SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.89 | 545.35 | 75.11 | 335.02 | 12.02 | 168.20 | -36.34 | 78.84 | 0.5923 | 104.9 | 123.8 | |
|
previous
or next observation for the same group /

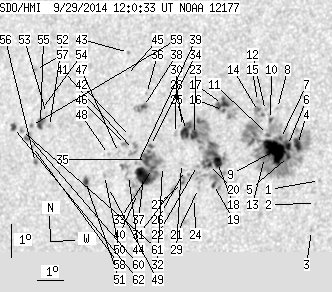

back to the solar disc SDO HMI 2014-09-29 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.62 | 11.35 | 172.43 | -32.11 | 79.41 | 0.5323 | -663.0 | -487.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 10.66 | 172.37 | -32.17 | 80.74 | 0.5323 | -759.0 | -556.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 9.84 | 172.31 | -32.23 | 82.28 | 0.5323 | -709.0 | -586.4 | |
| 6.44 | 218.89 | 3.80 | 130.45 | 12.39 | 171.49 | -33.05 | 77.69 | 0.5474 | -1006.3 | -288.0 | |
| 2.12 | -4.00 | 1.25 | -4.00 | 12.01 | 171.21 | -33.33 | 78.43 | 0.5507 | -1086.8 | 999999 | |
| 3.79 | -4.00 | 2.25 | -4.00 | 12.33 | 171.13 | -33.41 | 77.85 | 0.5524 | -868.0 | 999999 | |
| 1.23 | -4.00 | 0.74 | -4.00 | 12.53 | 170.84 | -33.70 | 77.56 | 0.5568 | -586.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 13.42 | 170.59 | -33.95 | 76.02 | 0.5619 | -470.0 | -422.0 | |
| 33.51 | -4.00 | 19.98 | -4.00 | 12.15 | 170.67 | -33.87 | 78.27 | 0.5586 | -909.4 | 999999 | |
| 0.88 | -4.00 | 0.53 | -4.00 | 13.07 | 170.38 | -34.16 | 76.69 | 0.5642 | -532.2 | 999999 | |
| 0.71 | -4.00 | 0.42 | -4.00 | 12.62 | 170.34 | -34.20 | 77.50 | 0.5639 | -372.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 13.33 | 170.16 | -34.38 | 76.28 | 0.5678 | -431.0 | -367.9 | |
| 0.62 | -4.00 | 0.37 | -4.00 | 11.92 | 170.33 | -34.21 | 78.74 | 0.5630 | -381.0 | 999999 | |
| 0.00 | 8.47 | 0.00 | 5.10 | 13.29 | 169.90 | -34.64 | 76.42 | 0.5713 | -216.0 | -165.7 | |
| 0.00 | 1.32 | 0.00 | 0.80 | 13.58 | 169.81 | -34.73 | 75.92 | 0.5730 | -51.0 | -106.9 | |
| 0.62 | 26.46 | 0.38 | 16.17 | 13.23 | 168.58 | -35.96 | 76.79 | 0.5893 | 863.9 | 616.8 | |
| 6.79 | -16.00 | 4.16 | -16.00 | 13.41 | 168.52 | -36.02 | 76.50 | 0.5906 | 825.9 | 999999 | |
| 6.70 | 96.57 | 4.09 | 59.44 | 11.65 | 168.61 | -35.93 | 79.46 | 0.5868 | -651.4 | 361.8 | |
| 1.41 | 33.86 | 0.86 | 20.77 | 10.98 | 168.55 | -35.99 | 80.61 | 0.5869 | 777.1 | 159.8 | |
| 1.50 | -18.00 | 0.92 | -18.00 | 11.57 | 168.31 | -36.23 | 79.64 | 0.5908 | -585.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.98 | 10.83 | 168.00 | -36.54 | 80.93 | 0.5944 | 671.0 | 568.2 | |
| 0.00 | 0.44 | 0.00 | 0.27 | 11.51 | 167.86 | -36.67 | 79.79 | 0.5969 | 303.0 | 289.4 | |
| 5.47 | -18.00 | 3.38 | -18.00 | 12.43 | 167.60 | -36.94 | 78.29 | 0.6015 | 1051.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 10.52 | 167.89 | -36.65 | 81.47 | 0.5956 | 608.0 | 454.8 | |
| 9.88 | -18.00 | 6.14 | -18.00 | 12.53 | 167.28 | -37.26 | 78.18 | 0.6061 | 740.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 11.33 | 167.39 | -37.15 | 80.15 | 0.6032 | 254.0 | 200.9 | |
| 0.62 | -19.00 | 0.38 | -19.00 | 10.96 | 167.37 | -37.17 | 80.76 | 0.6032 | 749.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 12.64 | 167.10 | -37.43 | 78.02 | 0.6086 | 357.0 | 364.6 | |
| 0.00 | 1.41 | 0.00 | 0.88 | 11.53 | 167.25 | -37.29 | 79.84 | 0.6054 | 214.0 | 195.4 | |
| 0.00 | 2.38 | 0.00 | 1.49 | 12.41 | 166.87 | -37.67 | 78.43 | 0.6114 | 447.0 | 370.7 | |
| 0.00 | 4.14 | 0.00 | 2.58 | 10.76 | 167.05 | -37.49 | 81.13 | 0.6074 | 804.0 | 635.9 | |
| 0.00 | 1.94 | 0.00 | 1.22 | 11.39 | 166.53 | -38.01 | 80.14 | 0.6149 | 310.0 | 295.0 | |
| 1.94 | 59.62 | 1.22 | 37.63 | 11.30 | 166.15 | -38.39 | 80.32 | 0.6200 | 1002.7 | 693.8 | |
| 1.06 | -33.00 | 0.67 | -33.00 | 11.99 | 165.96 | -38.58 | 79.24 | 0.6231 | 667.7 | 999999 | |
| 6.97 | -33.00 | 4.40 | -33.00 | 11.56 | 165.88 | -38.66 | 79.94 | 0.6239 | 999.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 13.53 | 165.53 | -39.01 | 76.83 | 0.6308 | 651.0 | 578.2 | |
| 17.73 | -33.00 | 11.21 | -33.00 | 11.04 | 165.84 | -38.70 | 80.78 | 0.6239 | 875.4 | 999999 | |
| 1.59 | 8.55 | 1.01 | 5.46 | 13.14 | 165.48 | -39.06 | 77.47 | 0.6309 | 789.5 | 630.7 | |
| 0.00 | 2.03 | 0.00 | 1.29 | 11.41 | 165.55 | -38.99 | 80.21 | 0.6282 | 506.0 | 469.7 | |
| 0.00 | 5.47 | 0.00 | 3.46 | 10.51 | 165.69 | -38.85 | 81.63 | 0.6257 | 549.0 | 537.0 | |
| 0.00 | 6.79 | 0.00 | 4.33 | 11.82 | 165.32 | -39.22 | 79.58 | 0.6315 | 556.0 | 621.3 | |
| 0.00 | 1.32 | 0.00 | 0.85 | 12.20 | 165.13 | -39.40 | 79.00 | 0.6344 | 454.0 | 331.9 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 14.72 | 164.56 | -39.98 | 75.16 | 0.6452 | 615.0 | 525.9 | |
| 0.00 | 11.46 | 0.00 | 7.31 | 11.03 | 165.25 | -39.29 | 80.84 | 0.6318 | 286.0 | 455.4 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 14.02 | 164.62 | -39.91 | 76.22 | 0.6433 | 504.0 | 433.6 | |
| 0.00 | 3.17 | 0.00 | 2.03 | 11.95 | 164.98 | -39.56 | 79.42 | 0.6362 | 536.0 | 437.0 | |
| 0.00 | 1.94 | 0.00 | 1.25 | 11.69 | 164.74 | -39.79 | 79.85 | 0.6390 | 375.0 | 249.4 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 11.60 | 164.36 | -40.18 | 80.02 | 0.6440 | -586.0 | -472.6 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 10.61 | 164.52 | -40.02 | 81.55 | 0.6413 | -586.0 | -571.2 | |
| 0.00 | 1.32 | 0.00 | 0.85 | 10.96 | 164.30 | -40.23 | 81.02 | 0.6443 | -697.0 | -561.3 | |
| 2.56 | 4.67 | 1.67 | 3.05 | 10.72 | 163.58 | -40.96 | 81.43 | 0.6537 | -697.7 | -541.0 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 12.25 | 161.81 | -42.73 | 79.24 | 0.6772 | 639.0 | 576.3 | |
| 0.00 | 1.06 | 0.00 | 0.71 | 12.63 | 161.61 | -42.93 | 78.70 | 0.6801 | 593.0 | 564.2 | |
| 0.00 | 1.41 | 0.00 | 0.95 | 12.74 | 161.38 | -43.16 | 78.57 | 0.6831 | 557.0 | 489.7 | |
| 4.32 | 7.14 | 2.92 | 4.82 | 12.31 | 161.42 | -43.12 | 79.19 | 0.6822 | 789.3 | 670.6 | |
| 0.79 | 2.38 | 0.54 | 1.61 | 11.13 | 161.44 | -43.10 | 80.93 | 0.6812 | 632.1 | 508.3 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 13.91 | 160.86 | -43.68 | 76.91 | 0.6906 | 658.0 | 635.2 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 11.60 | 161.22 | -43.31 | 80.25 | 0.6842 | 562.0 | 512.7 | |
| 0.35 | 1.41 | 0.24 | 0.96 | 12.22 | 161.06 | -43.48 | 79.35 | 0.6866 | 700.5 | 573.8 | |
| 0.00 | 4.59 | 0.00 | 3.12 | 11.89 | 161.00 | -43.54 | 79.85 | 0.6871 | 733.0 | 611.5 | |
| 0.00 | 2.47 | 0.00 | 1.69 | 12.04 | 160.67 | -43.87 | 79.64 | 0.6913 | 601.0 | 468.3 | |
| 2.29 | 4.23 | 1.58 | 2.91 | 12.10 | 160.31 | -44.23 | 79.58 | 0.6958 | 514.4 | 313.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
