SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201.65 | 1145.32 | 136.10 | 770.16 | -11.26 | 242.31 | 38.32 | 244.45 | 0.6719 | 72.3 | 14.7 | |
|
previous
or next observation for the same group /

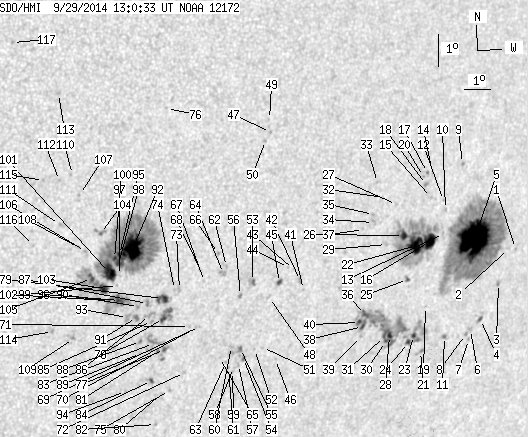

back to the solar disc SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.67 | -11.36 | 249.95 | 45.96 | 248.61 | 0.7592 | 229.0 | 347.5 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -11.33 | 249.64 | 45.65 | 248.51 | 0.7558 | -265.0 | -231.4 | |
| 0.00 | 2.03 | 0.00 | 1.53 | -12.41 | 249.43 | 45.44 | 247.07 | 0.7579 | -322.0 | -262.0 | |
| 1.06 | 3.70 | 0.80 | 2.79 | -13.51 | 248.89 | 44.90 | 245.47 | 0.7568 | 525.4 | 338.2 | |
| 70.01 | 355.17 | 51.13 | 259.60 | -10.88 | 248.08 | 44.09 | 248.38 | 0.7372 | 1123.0 | 324.9 | |
| 0.00 | 1.85 | 0.00 | 1.39 | -13.79 | 248.53 | 44.54 | 244.94 | 0.7542 | -192.0 | -209.0 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -14.11 | 248.52 | 44.53 | 244.54 | 0.7555 | -257.0 | -163.4 | |
| 0.00 | 1.41 | 0.00 | 1.06 | -13.94 | 248.34 | 44.35 | 244.67 | 0.7530 | -582.0 | -441.0 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -8.46 | 247.18 | 43.19 | 251.13 | 0.7177 | 539.0 | 595.5 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -9.85 | 246.67 | 42.68 | 249.07 | 0.7175 | 320.0 | 421.1 | |
| 0.79 | 2.29 | 0.59 | 1.69 | -13.92 | 247.43 | 43.44 | 244.24 | 0.7434 | -660.2 | -516.0 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -9.56 | 246.55 | 42.56 | 249.39 | 0.7148 | 577.0 | 505.6 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -10.61 | 246.72 | 42.73 | 248.10 | 0.7211 | 680.0 | 480.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -8.64 | 245.96 | 41.97 | 250.35 | 0.7043 | 420.0 | 422.3 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -9.43 | 246.03 | 42.04 | 249.34 | 0.7083 | 753.0 | 604.1 | |
| 12.61 | 146.90 | 8.92 | 102.78 | -10.81 | 246.17 | 42.18 | 247.57 | 0.7158 | 871.0 | 499.4 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -8.63 | 245.75 | 41.76 | 250.28 | 0.7018 | 713.0 | 698.6 | |
| 0.00 | 2.20 | 0.00 | 1.53 | -9.00 | 245.76 | 41.77 | 249.78 | 0.7035 | 891.0 | 768.1 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.88 | 246.40 | 42.41 | 245.01 | 0.7276 | -178.0 | -114.5 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -8.74 | 245.60 | 41.61 | 250.06 | 0.7006 | 782.0 | 742.2 | |
| 0.00 | 3.62 | 0.00 | 2.63 | -14.32 | 246.51 | 42.52 | 243.26 | 0.7356 | -500.0 | -434.6 | |
| 16.93 | -16.00 | 11.87 | -16.00 | -10.89 | 245.65 | 41.66 | 247.20 | 0.7103 | 1080.8 | 999999 | |
| 1.76 | 26.19 | 1.27 | 18.90 | -13.78 | 246.09 | 42.10 | 243.72 | 0.7285 | -379.0 | 49.0 | |
| 1.68 | -23.00 | 1.21 | -23.00 | -13.99 | 245.93 | 41.94 | 243.37 | 0.7278 | -584.2 | 999999 | |
| 1.06 | 2.65 | 0.75 | 1.86 | -11.95 | 245.47 | 41.48 | 245.73 | 0.7131 | 730.8 | 649.8 | |
| 3.88 | -16.00 | 2.69 | -16.00 | -10.53 | 245.06 | 41.07 | 247.38 | 0.7020 | 977.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -9.53 | 244.62 | 40.63 | 248.51 | 0.6925 | 503.0 | 474.2 | |
| 2.65 | 82.71 | 1.87 | 58.09 | -13.69 | 245.07 | 41.08 | 243.27 | 0.7172 | -754.1 | -130.3 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -10.76 | 244.41 | 40.42 | 246.74 | 0.6956 | 791.0 | 643.4 | |
| 0.26 | -28.00 | 0.19 | -28.00 | -13.87 | 244.95 | 40.96 | 242.97 | 0.7168 | -810.0 | 999999 | |
| 0.26 | -28.00 | 0.19 | -28.00 | -13.71 | 244.87 | 40.88 | 243.14 | 0.7151 | -855.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -9.27 | 244.06 | 40.07 | 248.59 | 0.6848 | 633.0 | 538.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -8.78 | 243.76 | 39.77 | 249.12 | 0.6790 | -515.0 | -351.5 | |
| 0.00 | 2.20 | 0.00 | 1.49 | -10.02 | 243.77 | 39.78 | 247.41 | 0.6848 | 712.0 | 683.5 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -9.77 | 243.73 | 39.74 | 247.73 | 0.6832 | 815.0 | 638.0 | |
| 3.53 | -28.00 | 2.44 | -28.00 | -12.93 | 243.94 | 39.95 | 243.62 | 0.7010 | -44.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -10.21 | 243.40 | 39.41 | 246.95 | 0.6814 | 686.0 | 549.7 | |
| 1.85 | -28.00 | 1.28 | -28.00 | -13.31 | 243.90 | 39.91 | 243.10 | 0.7024 | -581.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -13.63 | 243.88 | 39.89 | 242.68 | 0.7038 | -409.0 | -353.9 | |
| 2.03 | -28.00 | 1.40 | -28.00 | -13.17 | 243.75 | 39.76 | 243.19 | 0.7000 | -729.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -11.94 | 241.32 | 37.33 | 243.39 | 0.6659 | 567.0 | 464.7 | |
| 0.00 | 2.20 | 0.00 | 1.45 | -11.64 | 241.16 | 37.17 | 243.69 | 0.6624 | 793.0 | 668.4 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -11.27 | 240.83 | 36.84 | 244.00 | 0.6565 | 473.0 | 469.3 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -11.19 | 240.63 | 36.64 | 243.98 | 0.6537 | 692.0 | 556.0 | |
| 1.68 | 2.91 | 1.09 | 1.90 | -11.64 | 240.35 | 36.36 | 243.18 | 0.6530 | -555.3 | -373.2 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -14.11 | 240.61 | 36.62 | 240.00 | 0.6704 | 583.0 | 476.9 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -6.90 | 239.45 | 35.46 | 249.54 | 0.6170 | -657.0 | -509.6 | |
| 0.00 | 1.76 | 0.00 | 1.15 | -12.10 | 240.04 | 36.05 | 242.35 | 0.6519 | 489.0 | 476.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -6.50 | 239.38 | 35.39 | 250.12 | 0.6141 | -611.0 | -459.0 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -7.14 | 239.29 | 35.30 | 249.09 | 0.6160 | -638.0 | -496.0 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -13.68 | 240.04 | 36.05 | 240.18 | 0.6613 | 120.0 | 211.5 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -13.72 | 239.74 | 35.75 | 239.92 | 0.6581 | 631.0 | 469.5 | |
| 0.00 | 4.85 | 0.00 | 3.12 | -11.54 | 239.31 | 35.32 | 242.65 | 0.6401 | 742.0 | 576.2 | |
| 0.62 | 11.11 | 0.40 | 7.24 | -13.98 | 239.36 | 35.37 | 239.31 | 0.6555 | 608.1 | 626.1 | |
| 0.97 | -54.00 | 0.63 | -54.00 | -13.65 | 239.19 | 35.20 | 239.64 | 0.6515 | 836.5 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.13 | -11.95 | 238.92 | 34.93 | 241.80 | 0.6379 | 748.0 | 680.0 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -14.17 | 239.21 | 35.21 | 238.95 | 0.6549 | 532.0 | 468.4 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -14.25 | 239.03 | 35.04 | 238.72 | 0.6535 | 411.0 | 417.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -14.38 | 239.01 | 35.02 | 238.53 | 0.6541 | 415.0 | 366.0 | |
| 0.00 | 2.03 | 0.00 | 1.31 | -13.56 | 238.84 | 34.85 | 239.51 | 0.6469 | 687.0 | 508.4 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -14.23 | 238.84 | 34.85 | 238.60 | 0.6512 | 571.0 | 526.0 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -10.99 | 238.26 | 34.27 | 242.72 | 0.6243 | -543.0 | -473.8 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -14.06 | 238.69 | 34.70 | 238.72 | 0.6485 | 605.0 | 505.3 | |
| 0.00 | 3.79 | 0.00 | 2.40 | -11.21 | 238.18 | 34.19 | 242.35 | 0.6246 | -592.0 | -534.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -13.89 | 238.44 | 34.45 | 238.78 | 0.6444 | 569.0 | 552.1 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -10.56 | 237.91 | 33.92 | 243.10 | 0.6174 | -710.0 | -568.6 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -11.41 | 237.51 | 33.52 | 241.57 | 0.6177 | -615.0 | -536.4 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -11.02 | 237.31 | 33.32 | 242.00 | 0.6129 | -554.0 | -425.9 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.83 | 237.52 | 33.53 | 239.56 | 0.6270 | 732.0 | 621.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -12.86 | 237.42 | 33.43 | 239.44 | 0.6259 | 763.0 | 510.2 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -12.81 | 237.15 | 33.16 | 239.31 | 0.6225 | 438.0 | 429.3 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -14.28 | 237.20 | 33.21 | 237.30 | 0.6330 | -675.0 | -524.1 | |
| 0.00 | 2.38 | 0.00 | 1.48 | -11.60 | 236.62 | 32.63 | 240.64 | 0.6082 | -543.0 | -462.3 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -11.59 | 236.43 | 32.44 | 240.52 | 0.6059 | -695.0 | -540.8 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -14.83 | 236.73 | 32.74 | 236.19 | 0.6315 | -619.0 | -555.4 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -5.90 | 235.60 | 31.61 | 248.80 | 0.5613 | -658.0 | -464.3 | |
| 1.23 | 6.52 | 0.78 | 4.10 | -13.49 | 236.33 | 32.34 | 237.72 | 0.6176 | -661.4 | -483.4 | |
| 2.73 | 12.52 | 1.70 | 7.80 | -12.49 | 236.15 | 32.16 | 239.00 | 0.6086 | -687.6 | -463.0 | |
| 6.08 | 10.93 | 3.77 | 6.78 | -11.85 | 236.03 | 32.04 | 239.83 | 0.6028 | -895.6 | -657.0 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -14.90 | 236.45 | 32.46 | 235.86 | 0.6289 | -445.0 | -376.2 | |
| 0.44 | 1.85 | 0.28 | 1.16 | -13.53 | 236.08 | 32.09 | 237.46 | 0.6150 | -730.4 | -602.8 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -15.90 | 236.40 | 32.41 | 234.48 | 0.6356 | -759.0 | -701.2 | |
| 0.00 | 12.87 | 0.00 | 8.04 | -13.27 | 235.90 | 31.91 | 237.68 | 0.6110 | -708.0 | -579.0 | |
| 1.06 | 3.17 | 0.67 | 2.00 | -14.46 | 236.01 | 32.02 | 236.11 | 0.6207 | -764.8 | -665.8 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -12.55 | 235.72 | 31.73 | 238.56 | 0.6040 | -583.0 | -571.2 | |
| 0.00 | 6.26 | 0.00 | 3.87 | -12.36 | 235.63 | 31.64 | 238.76 | 0.6015 | -824.0 | -627.5 | |
| 0.00 | 2.20 | 0.00 | 1.36 | -11.97 | 235.50 | 31.51 | 239.23 | 0.5973 | -918.0 | -801.2 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -13.17 | 235.41 | 31.42 | 237.42 | 0.6047 | -864.0 | -742.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -13.56 | 235.47 | 31.48 | 236.92 | 0.6081 | -578.0 | -476.7 | |
| 0.00 | 2.47 | 0.00 | 1.52 | -12.04 | 235.19 | 31.20 | 238.87 | 0.5941 | -852.0 | -749.3 | |
| 0.79 | 3.79 | 0.49 | 2.33 | -12.39 | 235.16 | 31.17 | 238.34 | 0.5962 | -797.3 | -648.7 | |
| 31.57 | 261.35 | 19.09 | 157.87 | -10.19 | 234.76 | 30.77 | 241.30 | 0.5761 | -1147.9 | -415.0 | |
| 0.00 | 4.23 | 0.00 | 2.60 | -12.37 | 234.83 | 30.84 | 238.10 | 0.5921 | -843.0 | -648.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -14.75 | 235.11 | 31.12 | 234.95 | 0.6127 | -606.0 | -520.2 | |
| 1.32 | -92.00 | 0.80 | -92.00 | -10.35 | 234.31 | 30.32 | 240.70 | 0.5717 | -1286.2 | 999999 | |
| 4.94 | 26.45 | 3.01 | 16.10 | -11.81 | 234.48 | 30.49 | 238.62 | 0.5839 | -889.2 | -532.0 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -11.01 | 234.38 | 30.39 | 239.74 | 0.5771 | -354.0 | -260.2 | |
| 2.12 | -92.00 | 1.28 | -92.00 | -10.63 | 234.31 | 30.32 | 240.26 | 0.5735 | -963.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -11.33 | 234.35 | 30.36 | 239.24 | 0.5789 | -638.0 | -452.8 | |
| 1.50 | -92.00 | 0.90 | -92.00 | -10.47 | 234.15 | 30.16 | 240.38 | 0.5704 | -1194.6 | 999999 | |
| 14.90 | -92.00 | 8.98 | -92.00 | -10.90 | 234.02 | 30.03 | 239.61 | 0.5718 | -1088.9 | 999999 | |
| 0.79 | -96.00 | 0.48 | -96.00 | -11.79 | 234.12 | 30.13 | 238.35 | 0.5794 | -720.7 | 999999 | |
| 5.55 | 51.05 | 3.35 | 30.63 | -11.39 | 233.86 | 29.87 | 238.73 | 0.5734 | -939.6 | -581.5 | |
| 0.35 | 5.03 | 0.21 | 2.99 | -9.65 | 233.57 | 29.58 | 241.19 | 0.5576 | -971.2 | -779.4 | |
| 2.65 | -103.00 | 1.59 | -103.00 | -11.05 | 233.40 | 29.41 | 238.85 | 0.5653 | -1051.9 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -10.18 | 233.10 | 29.11 | 239.94 | 0.5553 | -823.0 | -609.8 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -8.38 | 232.73 | 28.74 | 242.54 | 0.5381 | -525.0 | -453.4 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -10.04 | 232.84 | 28.85 | 239.94 | 0.5511 | -797.0 | -683.3 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -12.92 | 232.98 | 28.99 | 235.66 | 0.5743 | -799.0 | -697.4 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -7.74 | 232.44 | 28.45 | 243.37 | 0.5301 | -531.0 | -568.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -9.28 | 232.11 | 28.12 | 240.52 | 0.5364 | -71.0 | -75.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -7.90 | 232.00 | 28.01 | 242.72 | 0.5254 | -676.0 | -510.9 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -5.21 | 231.80 | 27.81 | 247.32 | 0.5056 | -751.0 | -623.7 | |
| 0.00 | 1.68 | 0.00 | 1.00 | -12.65 | 232.21 | 28.22 | 235.34 | 0.5631 | -803.0 | -699.1 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -7.87 | 231.45 | 27.46 | 242.30 | 0.5179 | -775.0 | -584.7 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -9.89 | 231.27 | 27.28 | 238.76 | 0.5302 | -708.0 | -633.1 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -3.56 | 230.18 | 26.19 | 249.19 | 0.4732 | -771.0 | -575.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
