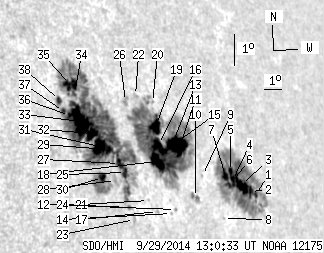

SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.25 | 966.01 | 176.64 | 869.59 | 15.23 | 260.99 | 57.00 | 283.87 | 0.8345 | -9.9 | -116.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.68 | 193.45 | 1.76 | 197.63 | 13.25 | 266.57 | 62.58 | 281.43 | 0.8834 | -201.3 | -194.3 | |
| 4.41 | -1.00 | 4.59 | -1.00 | 13.37 | 266.29 | 62.30 | 281.56 | 0.8812 | -412.8 | 999999 | |
| 16.40 | -1.00 | 16.80 | -1.00 | 13.64 | 265.81 | 61.82 | 281.86 | 0.8773 | -672.2 | 999999 | |
| 4.32 | -1.00 | 4.36 | -1.00 | 13.81 | 265.30 | 61.31 | 282.06 | 0.8731 | -820.9 | 999999 | |
| 3.35 | -1.00 | 3.38 | -1.00 | 14.09 | 265.30 | 61.31 | 282.38 | 0.8731 | -582.1 | 999999 | |
| 3.62 | -1.00 | 3.62 | -1.00 | 13.71 | 265.06 | 61.07 | 281.95 | 0.8711 | -840.0 | 999999 | |
| 5.47 | -1.00 | 5.45 | -1.00 | 14.00 | 264.94 | 60.95 | 282.28 | 0.8701 | -876.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 12.75 | 264.27 | 60.28 | 280.83 | 0.8645 | -503.0 | -535.0 | |
| 0.00 | 0.79 | 0.00 | 0.76 | 14.14 | 263.55 | 59.56 | 282.45 | 0.8582 | -572.0 | -525.6 | |
| 0.00 | 5.64 | 0.00 | 5.31 | 13.54 | 262.87 | 58.88 | 281.75 | 0.8522 | -596.0 | -524.7 | |
| 17.37 | 303.67 | 16.26 | 277.49 | 15.13 | 262.59 | 58.60 | 283.63 | 0.8499 | -786.1 | -393.1 | |
| 0.00 | 1.23 | 0.00 | 1.12 | 13.29 | 261.59 | 57.60 | 281.47 | 0.8406 | 296.0 | 243.1 | |
| 9.96 | -11.00 | 9.20 | -11.00 | 15.26 | 262.23 | 58.24 | 283.80 | 0.8467 | -981.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.64 | 13.20 | 261.33 | 57.34 | 281.36 | 0.8381 | 264.0 | 221.1 | |
| 3.53 | -11.00 | 3.21 | -11.00 | 15.08 | 261.61 | 57.62 | 283.60 | 0.8411 | -1245.8 | 999999 | |
| 4.76 | -11.00 | 4.31 | -11.00 | 15.31 | 261.42 | 57.43 | 283.88 | 0.8394 | -1101.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.86 | 13.33 | 260.58 | 56.59 | 281.53 | 0.8311 | 508.0 | 439.1 | |
| 12.96 | -11.00 | 11.65 | -11.00 | 14.82 | 261.10 | 57.11 | 283.31 | 0.8363 | 256.7 | 999999 | |
| 12.17 | -11.00 | 11.05 | -11.00 | 15.86 | 261.49 | 57.50 | 284.54 | 0.8402 | -837.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.97 | 16.59 | 261.65 | 57.66 | 285.40 | 0.8420 | -382.0 | -313.7 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 13.71 | 260.21 | 56.22 | 281.99 | 0.8277 | 289.0 | 272.7 | |
| 0.00 | 2.56 | 0.00 | 2.29 | 16.89 | 260.80 | 56.81 | 285.80 | 0.8344 | -430.0 | -405.4 | |
| 0.00 | 3.00 | 0.00 | 2.57 | 13.22 | 259.26 | 55.27 | 281.41 | 0.8184 | -222.0 | -88.5 | |
| 0.44 | 2.20 | 0.38 | 1.88 | 13.60 | 259.12 | 55.13 | 281.88 | 0.8171 | 540.6 | 466.4 | |
| 3.79 | 409.48 | 3.25 | 343.37 | 14.66 | 259.29 | 55.30 | 283.18 | 0.8191 | 590.3 | 120.6 | |
| 0.00 | 5.11 | 0.00 | 4.50 | 16.76 | 260.17 | 56.18 | 285.69 | 0.8284 | -444.0 | -384.2 | |
| 5.47 | -25.00 | 4.67 | -25.00 | 14.95 | 259.08 | 55.09 | 283.55 | 0.8171 | 577.1 | 999999 | |
| 0.00 | 5.29 | 0.00 | 4.48 | 14.47 | 258.67 | 54.68 | 282.97 | 0.8130 | 14.0 | 116.6 | |
| 4.67 | -25.00 | 3.96 | -25.00 | 15.42 | 258.66 | 54.67 | 284.15 | 0.8133 | 480.6 | 999999 | |
| 5.03 | 30.33 | 4.19 | 25.23 | 14.62 | 258.03 | 54.04 | 283.19 | 0.8067 | 858.2 | 440.3 | |
| 14.64 | -25.00 | 12.27 | -25.00 | 15.56 | 258.23 | 54.24 | 284.34 | 0.8091 | 816.9 | 999999 | |
| 10.40 | -25.00 | 8.68 | -25.00 | 15.98 | 257.97 | 53.98 | 284.89 | 0.8067 | 715.5 | 999999 | |
| 33.07 | -25.00 | 27.34 | -25.00 | 16.40 | 257.55 | 53.55 | 285.43 | 0.8028 | 901.6 | 999999 | |
| 1.41 | -25.00 | 1.17 | -25.00 | 17.26 | 257.58 | 53.59 | 286.50 | 0.8038 | 631.6 | 999999 | |
| 11.90 | -25.00 | 9.85 | -25.00 | 17.55 | 257.49 | 53.50 | 286.87 | 0.8032 | 679.6 | 999999 | |
| 1.94 | -25.00 | 1.59 | -25.00 | 16.63 | 257.06 | 53.07 | 285.76 | 0.7981 | 998.0 | 999999 | |
| 2.20 | -25.00 | 1.79 | -25.00 | 16.77 | 256.80 | 52.81 | 285.97 | 0.7956 | 772.5 | 999999 | |
| 2.29 | -25.00 | 1.86 | -25.00 | 17.12 | 256.73 | 52.74 | 286.41 | 0.7952 | 794.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
