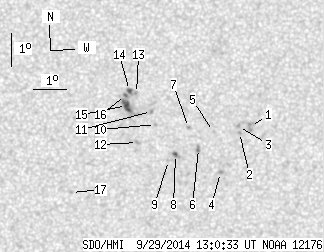

SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.67 | 47.89 | 3.80 | 23.80 | 7.75 | 207.54 | 3.55 | 287.17 | 0.0666 | 14.4 | -8.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.85 | 0.00 | 2.42 | 7.62 | 210.18 | 6.19 | 278.19 | 0.1084 | -724.0 | -783.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.45 | 209.84 | 5.85 | 276.90 | 0.1023 | -1124.0 | -968.3 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 7.63 | 209.81 | 5.82 | 278.70 | 0.1022 | -1016.0 | -800.4 | |
| 0.00 | 2.12 | 0.00 | 1.05 | 6.26 | 209.25 | 5.26 | 264.54 | 0.0919 | -1080.0 | -859.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.49 | 209.05 | 5.06 | 278.31 | 0.0888 | -767.0 | -541.1 | |
| 0.00 | 2.91 | 0.00 | 1.45 | 6.98 | 208.59 | 4.60 | 272.79 | 0.0800 | -1094.0 | -868.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 7.62 | 208.29 | 4.30 | 281.32 | 0.0762 | -986.0 | -738.6 | |
| 0.79 | 3.53 | 0.39 | 1.75 | 6.81 | 207.89 | 3.90 | 270.64 | 0.0678 | -1089.1 | -809.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.63 | 207.67 | 3.68 | 267.86 | 0.0642 | -879.0 | -659.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.72 | 207.29 | 3.30 | 286.11 | 0.0597 | 895.0 | 658.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 8.11 | 207.17 | 3.18 | 292.97 | 0.0600 | 937.0 | 804.6 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 7.18 | 206.74 | 2.75 | 278.44 | 0.0483 | 873.0 | 750.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 8.65 | 206.72 | 2.73 | 304.79 | 0.0576 | 805.0 | 742.4 | |
| 1.32 | 20.72 | 0.66 | 10.28 | 8.74 | 206.51 | 2.52 | 308.30 | 0.0556 | 958.6 | 719.8 | |
| 5.03 | -14.00 | 2.49 | -14.00 | 8.29 | 206.41 | 2.42 | 302.29 | 0.0497 | 1194.3 | 999999 | |
| 0.53 | -14.00 | 0.26 | -14.00 | 8.59 | 206.39 | 2.40 | 307.47 | 0.0523 | 1043.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 5.69 | 204.74 | 0.75 | 214.24 | 0.0232 | 1023.0 | 706.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
