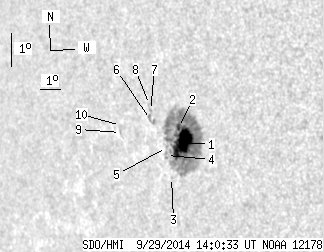

SDO HMI 2014-09-29 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.97 | 189.81 | 28.52 | 150.71 | -1.28 | 152.52 | -50.92 | 97.10 | 0.7843 | 630.6 | 278.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.85 | 176.94 | 26.84 | 140.14 | -1.32 | 152.64 | -50.80 | 97.17 | 0.7831 | 779.5 | 292.7 | |
| 2.12 | -1.00 | 1.68 | -1.00 | -0.88 | 152.46 | -50.98 | 96.58 | 0.7842 | 525.2 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -2.43 | 152.06 | -51.38 | 98.44 | 0.7913 | 246.0 | 213.1 | |
| 0.00 | 2.29 | 0.00 | 1.85 | -1.78 | 151.85 | -51.59 | 97.58 | 0.7923 | -84.0 | -16.5 | |
| 0.00 | 1.50 | 0.00 | 1.21 | -1.54 | 151.86 | -51.58 | 97.28 | 0.7918 | 200.0 | 152.4 | |
| 0.00 | 3.09 | 0.00 | 2.53 | -0.76 | 151.10 | -52.34 | 96.15 | 0.7984 | 339.0 | 321.8 | |
| 0.00 | 1.23 | 0.00 | 1.01 | -0.49 | 151.11 | -52.33 | 95.82 | 0.7979 | 459.0 | 333.1 | |
| 0.00 | 1.41 | 0.00 | 1.15 | -0.31 | 151.06 | -52.38 | 95.59 | 0.7981 | 472.0 | 341.0 | |
| 0.00 | 1.41 | 0.00 | 1.20 | -1.30 | 149.58 | -53.86 | 96.51 | 0.8148 | -279.0 | -282.1 | |
| 0.00 | 1.32 | 0.00 | 1.12 | -1.09 | 149.58 | -53.86 | 96.25 | 0.8144 | -129.0 | -108.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
