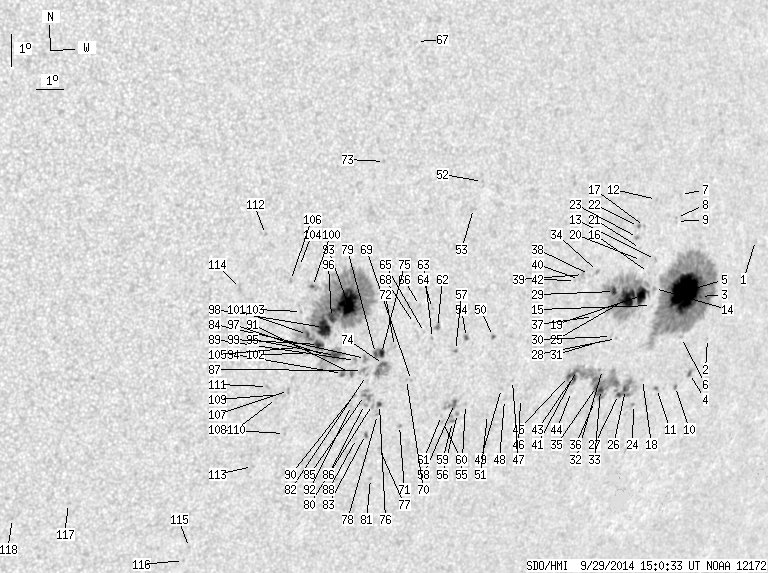

SDO HMI 2014-09-29 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.87 | 1136.75 | 143.58 | 776.36 | -11.25 | 242.27 | 39.38 | 245.09 | 0.6840 | 66.5 | 20.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 1.10 | -9.52 | 251.00 | 48.11 | 251.76 | 0.7753 | 72.0 | 141.6 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -12.45 | 249.44 | 46.55 | 247.52 | 0.7695 | -324.0 | -276.2 | |
| 0.26 | 352.94 | 0.20 | 263.21 | -11.07 | 248.83 | 45.94 | 248.96 | 0.7579 | -107.0 | 312.1 | |
| 1.23 | 4.14 | 0.95 | 3.19 | -13.51 | 248.89 | 46.00 | 245.98 | 0.7681 | 490.2 | 266.5 | |
| 68.93 | -3.00 | 51.36 | -3.00 | -10.85 | 248.08 | 45.19 | 248.92 | 0.7491 | 1183.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.20 | -12.31 | 248.26 | 45.37 | 247.16 | 0.7567 | 29.0 | 117.8 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -7.77 | 247.41 | 44.52 | 252.60 | 0.7304 | 133.0 | 204.8 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -8.48 | 247.34 | 44.45 | 251.64 | 0.7321 | 689.0 | 644.0 | |
| 0.00 | 1.85 | 0.00 | 1.34 | -8.61 | 247.36 | 44.47 | 251.49 | 0.7327 | 668.0 | 483.9 | |
| 0.88 | 1.85 | 0.67 | 1.42 | -13.87 | 248.36 | 45.47 | 245.29 | 0.7642 | -402.3 | -339.7 | |
| 0.88 | 1.85 | 0.66 | 1.39 | -13.86 | 247.52 | 44.63 | 244.90 | 0.7555 | -505.8 | -392.9 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -7.84 | 246.40 | 43.51 | 252.10 | 0.7191 | 402.0 | 419.1 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -9.73 | 246.64 | 43.75 | 249.72 | 0.7289 | 536.0 | 515.4 | |
| 0.00 | 1.50 | 0.00 | 1.09 | -10.64 | 246.75 | 43.86 | 248.59 | 0.7338 | 774.0 | 653.5 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -11.17 | 246.72 | 43.83 | 247.89 | 0.7357 | 360.0 | 416.0 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -10.11 | 246.41 | 43.52 | 249.12 | 0.7279 | 433.0 | 390.9 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -8.65 | 246.01 | 43.12 | 250.86 | 0.7176 | 574.0 | 441.4 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -13.52 | 246.83 | 43.94 | 244.99 | 0.7469 | 307.0 | 238.1 | |
| 12.16 | 143.24 | 8.77 | 102.07 | -10.82 | 246.23 | 43.34 | 248.12 | 0.7288 | 844.1 | 515.8 | |
| 0.00 | 1.76 | 0.00 | 1.26 | -9.71 | 246.05 | 43.16 | 249.48 | 0.7222 | 301.0 | 325.5 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -9.32 | 245.94 | 43.05 | 249.94 | 0.7195 | 696.0 | 607.2 | |
| 0.44 | 1.41 | 0.31 | 1.00 | -8.62 | 245.76 | 42.87 | 250.78 | 0.7146 | 739.2 | 666.2 | |
| 0.00 | 1.76 | 0.00 | 1.25 | -8.97 | 245.76 | 42.88 | 250.33 | 0.7161 | 846.0 | 720.5 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -14.30 | 246.63 | 43.74 | 243.92 | 0.7482 | -515.0 | -405.8 | |
| 18.51 | -19.00 | 13.22 | -19.00 | -10.86 | 245.65 | 42.76 | 247.79 | 0.7226 | 1097.0 | 999999 | |
| 2.29 | 104.81 | 1.68 | 75.52 | -13.78 | 246.17 | 43.28 | 244.33 | 0.7410 | -369.4 | -81.7 | |
| 1.67 | -26.00 | 1.23 | -26.00 | -13.92 | 245.90 | 43.01 | 244.02 | 0.7388 | -651.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.10 | 245.43 | 42.54 | 246.08 | 0.7255 | 766.0 | 624.1 | |
| 3.09 | -19.00 | 2.18 | -19.00 | -10.59 | 245.07 | 42.18 | 247.86 | 0.7149 | 997.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -12.02 | 245.20 | 42.31 | 246.07 | 0.7227 | 627.0 | 482.0 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -12.10 | 245.01 | 42.12 | 245.87 | 0.7209 | 338.0 | 363.4 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -13.05 | 245.03 | 42.14 | 244.66 | 0.7256 | 179.0 | 68.6 | |
| 2.29 | -26.00 | 1.65 | -26.00 | -13.69 | 245.09 | 42.20 | 243.88 | 0.7292 | -786.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.22 | -9.90 | 244.26 | 41.37 | 248.38 | 0.7026 | 737.0 | 649.7 | |
| 2.56 | -26.00 | 1.84 | -26.00 | -13.58 | 244.90 | 42.01 | 243.92 | 0.7266 | -604.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -14.06 | 244.92 | 42.03 | 243.33 | 0.7291 | -634.0 | -468.5 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -11.32 | 244.33 | 41.44 | 246.54 | 0.7098 | 274.0 | 199.2 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -9.97 | 243.94 | 41.05 | 248.13 | 0.6993 | 678.0 | 539.1 | |
| 0.00 | 3.00 | 0.00 | 2.06 | -9.95 | 243.70 | 40.81 | 248.03 | 0.6964 | 764.0 | 709.1 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -10.09 | 243.56 | 40.67 | 247.77 | 0.6954 | 714.0 | 598.2 | |
| 0.26 | -26.00 | 0.19 | -26.00 | -12.99 | 243.95 | 41.06 | 244.16 | 0.7134 | -535.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -10.11 | 243.40 | 40.51 | 247.66 | 0.6937 | 721.0 | 577.3 | |
| 3.53 | -26.00 | 2.48 | -26.00 | -13.17 | 243.86 | 40.97 | 243.87 | 0.7134 | -623.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -13.65 | 243.88 | 40.99 | 243.27 | 0.7160 | -517.0 | -463.4 | |
| 1.94 | -26.00 | 1.36 | -26.00 | -13.16 | 243.65 | 40.76 | 243.78 | 0.7110 | -776.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -13.71 | 241.83 | 38.94 | 242.00 | 0.6938 | 396.0 | 398.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -13.10 | 241.39 | 38.50 | 242.54 | 0.6857 | 560.0 | 458.8 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -13.69 | 241.19 | 38.30 | 241.63 | 0.6866 | 574.0 | 483.2 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -13.33 | 241.00 | 38.11 | 242.00 | 0.6825 | 622.0 | 540.9 | |
| 0.62 | 1.67 | 0.41 | 1.11 | -11.64 | 240.40 | 37.51 | 243.91 | 0.6663 | -531.7 | -412.5 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -14.13 | 240.60 | 37.71 | 240.70 | 0.6826 | 625.0 | 529.2 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -6.73 | 239.38 | 36.49 | 250.36 | 0.6293 | -531.0 | -448.6 | |
| 0.00 | 3.17 | 0.00 | 2.02 | -7.55 | 239.12 | 36.23 | 249.00 | 0.6298 | -443.0 | -350.1 | |
| 1.06 | 2.47 | 0.69 | 1.61 | -11.59 | 239.35 | 36.46 | 243.32 | 0.6538 | 757.7 | 625.2 | |
| 0.00 | 1.41 | 0.00 | 0.94 | -13.74 | 239.67 | 36.78 | 240.60 | 0.6699 | 462.0 | 344.2 | |
| 0.00 | 1.67 | 0.00 | 1.11 | -14.00 | 239.41 | 36.52 | 240.07 | 0.6686 | 581.0 | 509.2 | |
| 0.00 | 2.03 | 0.00 | 1.32 | -11.97 | 238.99 | 36.10 | 242.56 | 0.6518 | 861.0 | 743.8 | |
| 2.12 | 10.22 | 1.40 | 6.75 | -13.67 | 239.24 | 36.35 | 240.40 | 0.6646 | 805.2 | 675.3 | |
| 0.44 | 4.50 | 0.29 | 2.98 | -14.25 | 239.26 | 36.37 | 239.65 | 0.6684 | 517.2 | 481.1 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -14.22 | 238.87 | 35.98 | 239.42 | 0.6639 | 576.0 | 465.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -14.02 | 238.80 | 35.91 | 239.63 | 0.6618 | 622.0 | 548.3 | |
| 1.06 | 3.79 | 0.68 | 2.43 | -11.19 | 238.19 | 35.30 | 243.13 | 0.6378 | -682.9 | -529.2 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -11.53 | 238.05 | 35.16 | 242.56 | 0.6381 | -576.0 | -430.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -10.57 | 237.92 | 35.03 | 243.83 | 0.6310 | -702.0 | -602.0 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -11.31 | 237.72 | 34.83 | 242.64 | 0.6329 | -596.0 | -558.8 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -10.44 | 237.42 | 34.53 | 243.69 | 0.6242 | -620.0 | -509.8 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -2.26 | 236.70 | 33.81 | 256.13 | 0.5749 | -417.0 | -392.1 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -11.00 | 237.31 | 34.42 | 242.80 | 0.6261 | -709.0 | -538.2 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -12.81 | 237.46 | 34.57 | 240.34 | 0.6390 | 755.0 | 594.5 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.77 | 237.26 | 34.37 | 240.27 | 0.6364 | 381.0 | 470.5 | |
| 0.00 | 1.41 | 0.00 | 0.91 | -14.23 | 237.24 | 34.35 | 238.24 | 0.6456 | -669.0 | -638.6 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.68 | 236.66 | 33.77 | 241.37 | 0.6224 | -471.0 | -445.9 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -5.86 | 235.71 | 32.82 | 249.64 | 0.5773 | -615.0 | -439.5 | |
| 2.38 | 17.89 | 1.50 | 11.30 | -12.23 | 236.33 | 33.44 | 240.35 | 0.6220 | -624.6 | -321.0 | |
| 3.61 | 11.46 | 2.27 | 7.20 | -11.87 | 236.21 | 33.32 | 240.77 | 0.6182 | -816.9 | -649.1 | |
| 1.50 | 2.64 | 0.95 | 1.68 | -13.50 | 236.37 | 33.48 | 238.59 | 0.6308 | -625.8 | -440.2 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -14.92 | 236.61 | 33.72 | 236.83 | 0.6432 | -825.0 | -589.9 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -13.82 | 236.35 | 33.46 | 238.13 | 0.6327 | -645.0 | -499.4 | |
| 1.67 | -75.00 | 1.05 | -75.00 | -11.85 | 235.98 | 33.09 | 240.62 | 0.6155 | -975.4 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.62 | -13.48 | 236.11 | 33.22 | 238.42 | 0.6277 | -393.0 | -533.1 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.88 | 236.45 | 33.56 | 235.43 | 0.6480 | -795.0 | -560.5 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -12.53 | 235.75 | 32.86 | 239.47 | 0.6171 | -709.0 | -628.4 | |
| 0.71 | 2.20 | 0.45 | 1.41 | -14.43 | 236.01 | 33.12 | 237.02 | 0.6330 | -757.5 | -590.6 | |
| 0.00 | 4.05 | 0.00 | 2.54 | -11.99 | 235.64 | 32.75 | 240.17 | 0.6122 | -950.0 | -715.4 | |
| 0.44 | 9.52 | 0.28 | 6.01 | -13.17 | 235.77 | 32.88 | 238.59 | 0.6216 | -856.2 | -630.5 | |
| 0.00 | 2.73 | 0.00 | 1.73 | -13.46 | 235.81 | 32.92 | 238.21 | 0.6241 | -651.0 | -607.7 | |
| 0.00 | 3.97 | 0.00 | 2.48 | -12.36 | 235.58 | 32.69 | 239.58 | 0.6140 | -760.0 | -605.7 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -14.54 | 235.69 | 32.80 | 236.63 | 0.6302 | -665.0 | -519.7 | |
| 0.00 | 2.56 | 0.00 | 1.59 | -12.03 | 235.28 | 32.39 | 239.84 | 0.6082 | -792.0 | -716.1 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -13.14 | 235.36 | 32.47 | 238.31 | 0.6167 | -708.0 | -726.5 | |
| 1.06 | 2.82 | 0.66 | 1.76 | -12.43 | 235.19 | 32.30 | 239.18 | 0.6098 | -745.0 | -649.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -13.46 | 235.33 | 32.44 | 237.84 | 0.6186 | -591.0 | -508.1 | |
| 36.14 | 304.02 | 22.12 | 185.64 | -10.17 | 234.76 | 31.87 | 242.20 | 0.5897 | -1136.4 | -437.2 | |
| 0.00 | 3.44 | 0.00 | 2.14 | -12.41 | 234.85 | 31.96 | 238.95 | 0.6057 | -747.0 | -684.9 | |
| 5.91 | 32.35 | 3.64 | 19.93 | -11.82 | 234.52 | 31.63 | 239.55 | 0.5977 | -869.5 | -435.9 | |
| 5.38 | -93.00 | 3.28 | -93.00 | -10.60 | 234.23 | 31.34 | 241.13 | 0.5860 | -1067.5 | 999999 | |
| 0.79 | -95.00 | 0.49 | -95.00 | -11.80 | 234.16 | 31.27 | 239.29 | 0.5932 | -782.8 | 999999 | |
| 17.19 | -93.00 | 10.48 | -93.00 | -10.90 | 233.98 | 31.09 | 240.48 | 0.5849 | -1074.8 | 999999 | |
| 4.32 | -93.00 | 2.64 | -93.00 | -11.43 | 233.86 | 30.97 | 239.59 | 0.5871 | -942.0 | 999999 | |
| 0.79 | 5.38 | 0.48 | 3.24 | -9.58 | 233.45 | 30.56 | 242.08 | 0.5695 | -956.6 | -771.5 | |
| 1.76 | -93.00 | 1.07 | -93.00 | -11.09 | 233.43 | 30.54 | 239.75 | 0.5794 | -1047.4 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.61 | -11.69 | 233.50 | 30.61 | 238.91 | 0.5845 | -186.0 | -237.8 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -10.35 | 233.14 | 30.25 | 240.64 | 0.5707 | -892.0 | -672.0 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -8.93 | 232.93 | 30.04 | 242.71 | 0.5586 | 424.0 | 363.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -11.48 | 233.16 | 30.27 | 238.93 | 0.5788 | -519.0 | -459.5 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -9.35 | 232.65 | 29.76 | 241.82 | 0.5578 | -452.0 | -450.9 | |
| 0.00 | 1.85 | 0.00 | 1.13 | -12.83 | 232.97 | 30.08 | 236.77 | 0.5864 | -806.0 | -619.9 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -14.20 | 233.02 | 30.13 | 234.84 | 0.5974 | -557.0 | -475.2 | |
| 0.00 | 2.91 | 0.00 | 1.77 | -12.94 | 232.73 | 29.84 | 236.40 | 0.5845 | -811.0 | -650.0 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -13.06 | 232.57 | 29.68 | 236.09 | 0.5835 | -715.0 | -527.2 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -12.65 | 232.20 | 29.31 | 236.35 | 0.5760 | -829.0 | -684.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -7.86 | 231.65 | 28.76 | 243.44 | 0.5350 | -663.0 | -587.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -15.20 | 232.02 | 29.13 | 232.54 | 0.5940 | -538.0 | -444.0 | |
| 0.00 | 3.79 | 0.00 | 2.22 | -9.49 | 230.92 | 28.03 | 240.10 | 0.5368 | -766.0 | -564.5 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -17.73 | 230.18 | 27.29 | 227.34 | 0.5960 | -577.0 | -411.6 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -18.15 | 230.03 | 27.14 | 226.65 | 0.5984 | -561.0 | -375.0 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -16.05 | 225.74 | 22.85 | 224.55 | 0.5341 | -599.0 | -488.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -16.45 | 223.90 | 21.01 | 221.62 | 0.5197 | -677.0 | -522.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
