SDO HMI 2014-09-29 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.41 | 0.00 | 6.74 | -14.88 | 201.43 | -1.46 | 171.99 | 0.3918 | -94.2 | -89.9 | |
|
previous
or next observation for the same group /

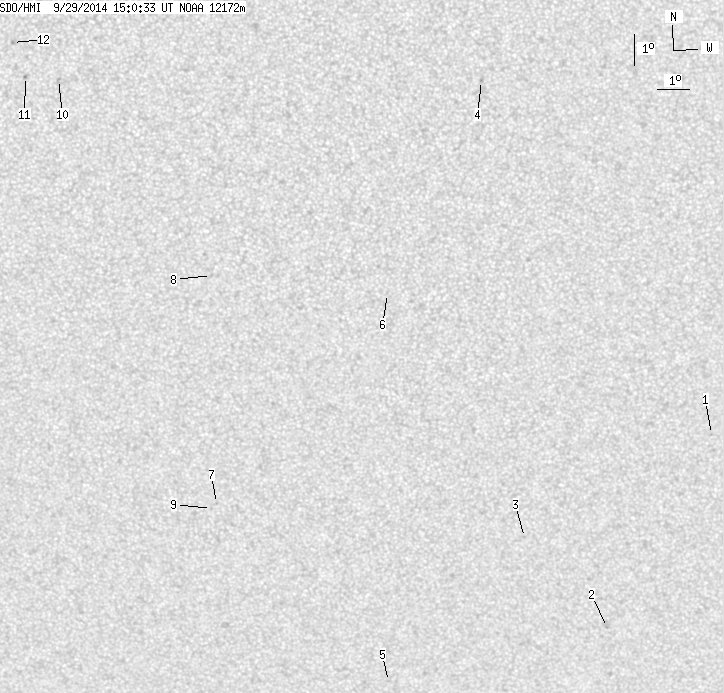

back to the solar disc SDO HMI 2014-09-29 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.44 | -18.34 | 214.22 | 11.33 | 203.83 | 0.4636 | 723.0 | 588.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -24.86 | 211.25 | 8.36 | 194.14 | 0.5420 | 739.0 | 627.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -21.69 | 208.35 | 5.46 | 190.52 | 0.4864 | 694.0 | 563.8 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -6.92 | 206.71 | 3.82 | 195.63 | 0.2468 | -932.0 | -693.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -26.70 | 203.99 | 1.10 | 181.77 | 0.5541 | 590.0 | 423.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.59 | 203.88 | 0.99 | 182.76 | 0.3501 | -9.0 | -6.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -20.51 | 198.42 | -4.47 | 170.95 | 0.4659 | -768.0 | -677.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.03 | 198.45 | -4.44 | 167.45 | 0.3484 | -721.0 | -544.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -20.68 | 198.26 | -4.63 | 170.69 | 0.4689 | -672.0 | -539.7 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -6.94 | 193.88 | -9.01 | 146.61 | 0.2837 | 953.0 | 724.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -6.87 | 192.87 | -10.02 | 143.60 | 0.2923 | -910.0 | -858.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -5.83 | 192.50 | -10.39 | 140.33 | 0.2824 | -817.0 | -657.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
