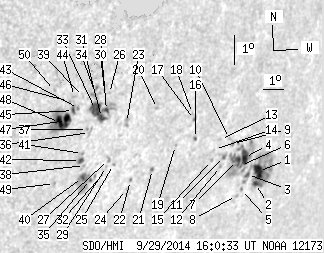

SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.11 | 259.77 | 51.82 | 216.80 | -16.68 | 250.93 | 48.59 | 243.30 | 0.8038 | -84.5 | -30.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.87 | 61.08 | 9.20 | 57.09 | -17.81 | 255.47 | 53.13 | 244.02 | 0.8494 | 647.7 | 41.6 | |
| 2.47 | -1.00 | 2.31 | -1.00 | -18.21 | 255.48 | 53.14 | 243.59 | 0.8508 | 314.1 | 999999 | |
| 1.32 | -1.00 | 1.22 | -1.00 | -17.85 | 254.91 | 52.57 | 243.75 | 0.8449 | 535.7 | 999999 | |
| 7.49 | 48.83 | 6.79 | 44.07 | -17.26 | 254.51 | 52.17 | 244.25 | 0.8396 | 704.7 | 451.6 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -18.33 | 254.80 | 52.46 | 243.17 | 0.8456 | 499.0 | 446.2 | |
| 0.26 | -4.00 | 0.24 | -4.00 | -17.51 | 254.40 | 52.07 | 243.93 | 0.8395 | 607.0 | 999999 | |
| 3.97 | -4.00 | 3.57 | -4.00 | -17.33 | 254.18 | 51.84 | 244.04 | 0.8369 | 797.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.38 | -18.51 | 254.62 | 52.28 | 242.90 | 0.8447 | 420.0 | 403.1 | |
| 0.00 | 1.94 | 0.00 | 1.72 | -16.73 | 253.69 | 51.35 | 244.52 | 0.8307 | 710.0 | 680.7 | |
| 0.00 | 0.97 | 0.00 | 0.85 | -16.55 | 253.47 | 51.13 | 244.63 | 0.8281 | 623.0 | 602.7 | |
| 0.00 | 2.91 | 0.00 | 2.56 | -17.12 | 253.38 | 51.05 | 243.95 | 0.8294 | 646.0 | 699.4 | |
| 0.00 | 1.32 | 0.00 | 1.17 | -17.44 | 253.36 | 51.02 | 243.58 | 0.8303 | 569.0 | 471.5 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -16.53 | 253.02 | 50.68 | 244.46 | 0.8241 | 574.0 | 430.5 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -16.84 | 252.83 | 50.49 | 244.04 | 0.8235 | 629.0 | 549.8 | |
| 0.00 | 1.23 | 0.00 | 1.07 | -17.19 | 252.81 | 50.48 | 243.63 | 0.8247 | 653.0 | 592.7 | |
| 0.62 | 1.59 | 0.52 | 1.34 | -16.38 | 251.74 | 49.40 | 244.10 | 0.8120 | 618.4 | 590.2 | |
| 0.44 | 1.94 | 0.37 | 1.62 | -15.74 | 251.47 | 49.14 | 244.72 | 0.8072 | 540.6 | 446.5 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -15.53 | 251.31 | 48.97 | 244.89 | 0.8049 | 621.0 | 573.9 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -16.52 | 250.83 | 48.49 | 243.53 | 0.8042 | -292.0 | -256.4 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -15.21 | 249.57 | 47.23 | 244.49 | 0.7871 | 632.0 | 520.3 | |
| 0.44 | 2.12 | 0.36 | 1.73 | -17.22 | 249.98 | 47.64 | 242.34 | 0.7991 | -322.4 | -232.4 | |
| 0.00 | 1.23 | 0.00 | 1.00 | -17.49 | 249.05 | 46.71 | 241.58 | 0.7916 | -247.0 | -201.0 | |
| 0.00 | 4.14 | 0.00 | 3.24 | -15.54 | 248.26 | 45.92 | 243.49 | 0.7757 | -538.0 | -441.1 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -17.78 | 248.96 | 46.62 | 241.20 | 0.7920 | -418.0 | -369.1 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -16.88 | 248.07 | 45.73 | 241.81 | 0.7798 | -406.0 | -324.7 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -14.52 | 247.22 | 44.88 | 244.21 | 0.7610 | -129.0 | -129.0 | |
| 0.00 | 2.20 | 0.00 | 1.72 | -16.70 | 247.79 | 45.45 | 241.89 | 0.7762 | -437.0 | -446.0 | |
| 1.76 | 31.11 | 1.35 | 23.66 | -15.07 | 247.23 | 44.89 | 243.56 | 0.7635 | -508.0 | -205.3 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -16.92 | 247.77 | 45.43 | 241.61 | 0.7770 | -494.0 | -436.1 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -14.40 | 246.97 | 44.63 | 244.24 | 0.7579 | -390.0 | -347.4 | |
| 3.53 | -28.00 | 2.69 | -28.00 | -15.28 | 247.07 | 44.73 | 243.22 | 0.7628 | -533.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -17.20 | 247.63 | 45.29 | 241.21 | 0.7770 | -227.0 | -217.3 | |
| 10.14 | -28.00 | 7.67 | -28.00 | -14.99 | 246.73 | 44.39 | 243.40 | 0.7580 | -728.5 | 999999 | |
| 0.00 | 7.32 | 0.00 | 5.50 | -14.47 | 246.60 | 44.26 | 243.97 | 0.7543 | -313.0 | -196.6 | |
| 0.71 | 22.39 | 0.55 | 17.33 | -17.29 | 247.17 | 44.83 | 240.87 | 0.7729 | -574.8 | -412.4 | |
| 0.00 | 3.00 | 0.00 | 2.28 | -15.72 | 246.67 | 44.33 | 242.48 | 0.7607 | -496.0 | -470.1 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -15.62 | 246.55 | 44.21 | 242.55 | 0.7591 | -707.0 | -566.8 | |
| 0.00 | 1.32 | 0.00 | 1.02 | -16.80 | 246.75 | 44.41 | 241.24 | 0.7666 | -609.0 | -526.4 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -14.52 | 246.09 | 43.75 | 243.65 | 0.7494 | -479.0 | -421.6 | |
| 1.76 | -35.00 | 1.36 | -35.00 | -17.19 | 246.78 | 44.44 | 240.79 | 0.7687 | -880.0 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.41 | -16.39 | 246.55 | 44.21 | 241.61 | 0.7626 | -715.0 | -617.6 | |
| 1.76 | 2.64 | 1.35 | 2.02 | -16.62 | 246.52 | 44.19 | 241.33 | 0.7635 | -852.9 | -762.4 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -14.89 | 245.97 | 43.63 | 243.13 | 0.7498 | -568.0 | -478.7 | |
| 0.00 | 1.50 | 0.00 | 1.11 | -14.49 | 245.69 | 43.36 | 243.49 | 0.7451 | -635.0 | -529.5 | |
| 1.41 | 2.91 | 1.05 | 2.16 | -14.94 | 245.76 | 43.43 | 242.97 | 0.7479 | -709.3 | -498.4 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -14.63 | 245.52 | 43.18 | 243.22 | 0.7439 | -435.0 | -491.7 | |
| 7.05 | 36.49 | 5.23 | 26.95 | -15.24 | 245.54 | 43.20 | 242.48 | 0.7471 | -670.1 | -611.4 | |
| 8.11 | -47.00 | 5.99 | -47.00 | -15.28 | 245.25 | 42.91 | 242.28 | 0.7443 | -960.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -17.28 | 245.58 | 43.25 | 240.03 | 0.7574 | -748.0 | -665.4 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -14.22 | 244.78 | 42.44 | 243.35 | 0.7343 | -602.0 | -502.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
