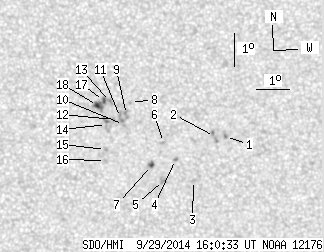

SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 50.60 | 1.98 | 25.17 | 7.72 | 207.51 | 5.18 | 281.96 | 0.0928 | 201.8 | 222.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.79 | 7.54 | 210.20 | 7.86 | 276.00 | 0.1370 | -1063.0 | -926.9 | |
| 0.00 | 4.58 | 0.00 | 2.29 | 7.54 | 209.87 | 7.53 | 276.27 | 0.1313 | -841.0 | -816.8 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 6.23 | 209.20 | 6.87 | 265.78 | 0.1197 | -919.0 | -665.1 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 6.87 | 208.67 | 6.33 | 271.17 | 0.1100 | -1164.0 | -954.2 | |
| 0.00 | 3.97 | 0.00 | 1.98 | 6.25 | 208.29 | 5.95 | 265.15 | 0.1040 | -1010.0 | -752.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.39 | 208.31 | 5.97 | 276.17 | 0.1042 | -1127.0 | -687.9 | |
| 1.06 | 2.47 | 0.53 | 1.23 | 6.70 | 207.93 | 5.60 | 269.48 | 0.0973 | -1103.8 | -870.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 8.60 | 207.32 | 4.98 | 290.51 | 0.0921 | 832.0 | 626.5 | |
| 0.00 | 3.70 | 0.00 | 1.84 | 8.24 | 207.20 | 4.86 | 287.14 | 0.0881 | 832.0 | 719.6 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 7.94 | 207.10 | 4.76 | 284.07 | 0.0852 | 698.0 | 657.9 | |
| 0.00 | 4.32 | 0.00 | 2.15 | 8.15 | 207.01 | 4.67 | 286.75 | 0.0846 | 898.0 | 878.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 8.09 | 206.80 | 4.46 | 286.79 | 0.0808 | 964.0 | 781.4 | |
| 0.00 | 2.29 | 0.00 | 1.14 | 8.64 | 206.71 | 4.38 | 293.42 | 0.0826 | 823.0 | 627.8 | |
| 0.00 | 5.73 | 0.00 | 2.85 | 7.95 | 206.58 | 4.24 | 285.71 | 0.0765 | 691.0 | 756.4 | |
| 0.00 | 1.94 | 0.00 | 0.96 | 7.20 | 206.54 | 4.21 | 275.90 | 0.0735 | 1012.0 | 664.4 | |
| 0.00 | 1.50 | 0.00 | 0.74 | 6.87 | 206.54 | 4.20 | 271.39 | 0.0731 | 857.0 | 690.2 | |
| 0.88 | 9.34 | 0.44 | 4.64 | 8.67 | 206.50 | 4.16 | 294.82 | 0.0794 | 1035.0 | 1019.4 | |
| 2.03 | -17.00 | 1.01 | -17.00 | 8.52 | 206.32 | 3.98 | 294.02 | 0.0755 | 1227.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
