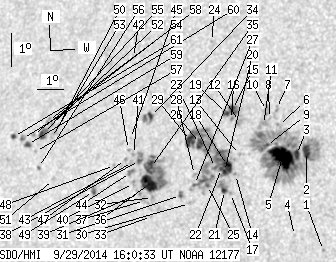

SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.51 | 542.76 | 75.43 | 324.77 | 12.03 | 168.27 | -34.07 | 78.45 | 0.5607 | 117.7 | 128.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.55 | 9.46 | 172.41 | -29.92 | 82.80 | 0.4980 | -912.0 | -716.8 | |
| 7.14 | 214.87 | 4.12 | 125.06 | 12.39 | 171.48 | -30.86 | 77.17 | 0.5158 | -1087.2 | -299.5 | |
| 4.41 | -2.00 | 2.55 | -2.00 | 12.28 | 171.14 | -31.20 | 77.47 | 0.5206 | -1014.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 9.85 | 171.35 | -30.99 | 82.13 | 0.5142 | -607.0 | -455.9 | |
| 33.58 | -2.00 | 19.55 | -2.00 | 12.19 | 170.64 | -31.70 | 77.75 | 0.5276 | -1030.9 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.03 | 13.12 | 170.37 | -31.97 | 76.08 | 0.5333 | -497.0 | -444.5 | |
| 0.00 | 2.38 | 0.00 | 1.39 | 13.62 | 170.22 | -32.12 | 75.18 | 0.5365 | -599.0 | -461.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 13.31 | 170.01 | -32.32 | 75.82 | 0.5388 | -517.0 | -392.4 | |
| 1.32 | -2.00 | 0.78 | -2.00 | 12.49 | 170.02 | -32.32 | 77.34 | 0.5371 | -608.7 | 999999 | |
| 0.00 | 6.17 | 0.00 | 3.63 | 13.54 | 169.87 | -32.47 | 75.43 | 0.5414 | -295.0 | -176.0 | |
| 0.00 | 6.26 | 0.00 | 3.68 | 13.11 | 169.82 | -32.52 | 76.23 | 0.5411 | 204.0 | 173.8 | |
| 0.00 | 5.55 | 0.00 | 3.30 | 13.15 | 168.93 | -33.40 | 76.38 | 0.5538 | 707.0 | 676.9 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 12.16 | 169.08 | -33.26 | 78.14 | 0.5499 | -597.0 | -442.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 11.55 | 169.02 | -33.32 | 79.26 | 0.5500 | -774.0 | -669.6 | |
| 4.76 | 11.55 | 2.84 | 6.89 | 13.49 | 168.62 | -33.72 | 75.84 | 0.5588 | 888.8 | 675.7 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 13.19 | 168.63 | -33.71 | 76.38 | 0.5581 | 881.0 | 743.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 10.97 | 168.91 | -33.43 | 80.33 | 0.5508 | 757.0 | 580.2 | |
| 9.69 | 129.82 | 5.77 | 77.83 | 11.80 | 168.69 | -33.65 | 78.86 | 0.5550 | -471.9 | 353.7 | |
| 2.47 | -15.00 | 1.47 | -15.00 | 13.36 | 168.42 | -33.92 | 76.13 | 0.5614 | 822.2 | 999999 | |
| 2.64 | -18.00 | 1.57 | -18.00 | 11.61 | 168.60 | -33.74 | 79.21 | 0.5559 | -828.5 | 999999 | |
| 1.85 | 9.69 | 1.10 | 5.76 | 11.04 | 168.68 | -33.66 | 80.22 | 0.5542 | 912.4 | 327.6 | |
| 1.59 | -18.00 | 0.95 | -18.00 | 11.70 | 168.48 | -33.86 | 79.08 | 0.5578 | -528.2 | 999999 | |
| 0.53 | -18.00 | 0.32 | -18.00 | 11.71 | 168.26 | -34.08 | 79.09 | 0.5610 | 347.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 15.49 | 167.48 | -34.86 | 72.67 | 0.5792 | -698.0 | -636.0 | |
| 0.71 | -18.00 | 0.42 | -18.00 | 11.15 | 168.04 | -34.30 | 80.11 | 0.5634 | 768.4 | 999999 | |
| 4.94 | -18.00 | 2.97 | -18.00 | 12.40 | 167.60 | -34.74 | 77.99 | 0.5712 | 1096.7 | 999999 | |
| 0.44 | -18.00 | 0.27 | -18.00 | 11.15 | 167.55 | -34.79 | 80.18 | 0.5703 | -417.6 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.33 | 11.45 | 167.51 | -34.83 | 79.66 | 0.5712 | -41.0 | 10.0 | |
| 7.67 | -18.00 | 4.64 | -18.00 | 12.46 | 167.21 | -35.13 | 77.95 | 0.5767 | 836.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 10.57 | 167.44 | -34.90 | 81.21 | 0.5713 | 586.0 | 453.1 | |
| 0.79 | 3.00 | 0.48 | 1.81 | 10.79 | 167.08 | -35.26 | 80.87 | 0.5766 | 815.0 | 733.9 | |
| 0.00 | 2.12 | 0.00 | 1.30 | 10.66 | 166.04 | -36.30 | 81.20 | 0.5910 | 788.0 | 627.8 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 10.09 | 166.08 | -36.26 | 82.16 | 0.5901 | 564.0 | 490.2 | |
| 2.29 | 9.61 | 1.42 | 5.94 | 13.08 | 165.59 | -36.75 | 77.18 | 0.6000 | 857.3 | 668.6 | |
| 9.25 | 63.63 | 5.69 | 39.05 | 11.55 | 165.83 | -36.51 | 79.71 | 0.5946 | 998.8 | 702.4 | |
| 17.10 | -35.00 | 10.51 | -35.00 | 11.07 | 165.86 | -36.47 | 80.52 | 0.5937 | 970.6 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.28 | 10.55 | 165.75 | -36.59 | 81.41 | 0.5949 | 625.0 | 518.2 | |
| 1.23 | 6.61 | 0.76 | 4.09 | 11.73 | 165.38 | -36.96 | 79.46 | 0.6010 | 812.6 | 617.8 | |
| 0.00 | 1.50 | 0.00 | 0.92 | 10.75 | 165.53 | -36.81 | 81.10 | 0.5981 | 606.0 | 503.9 | |
| 0.00 | 2.47 | 0.00 | 1.53 | 11.03 | 165.26 | -37.08 | 80.65 | 0.6020 | 451.0 | 415.4 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 11.90 | 165.13 | -37.21 | 79.22 | 0.6047 | 555.0 | 460.5 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 14.81 | 164.60 | -37.74 | 74.55 | 0.6162 | 595.0 | 426.3 | |
| 0.00 | 3.79 | 0.00 | 2.35 | 11.66 | 165.13 | -37.21 | 79.62 | 0.6044 | 553.0 | 472.3 | |
| 0.00 | 3.70 | 0.00 | 2.30 | 11.35 | 165.10 | -37.24 | 80.13 | 0.6045 | 577.0 | 529.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 12.37 | 164.93 | -37.41 | 78.47 | 0.6078 | 430.0 | 432.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 12.03 | 164.91 | -37.43 | 79.02 | 0.6077 | 448.0 | 406.8 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 11.73 | 164.84 | -37.50 | 79.54 | 0.6083 | 502.0 | 379.4 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 11.52 | 164.45 | -37.89 | 79.92 | 0.6134 | -577.0 | -476.1 | |
| 1.41 | 3.61 | 0.89 | 2.28 | 10.68 | 163.76 | -38.58 | 81.34 | 0.6221 | -782.5 | -615.5 | |
| 0.00 | 2.29 | 0.00 | 1.49 | 12.31 | 161.93 | -40.40 | 78.94 | 0.6476 | 818.0 | 718.2 | |
| 0.00 | 2.03 | 0.00 | 1.31 | 10.93 | 162.13 | -40.21 | 81.07 | 0.6439 | 642.0 | 495.3 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 12.60 | 161.80 | -40.54 | 78.51 | 0.6496 | 746.0 | 641.7 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 12.18 | 161.84 | -40.50 | 79.15 | 0.6487 | 734.0 | 632.4 | |
| 0.00 | 2.56 | 0.00 | 1.67 | 12.68 | 161.62 | -40.72 | 78.41 | 0.6520 | 585.0 | 547.7 | |
| 5.11 | 8.90 | 3.34 | 5.81 | 12.27 | 161.49 | -40.85 | 79.04 | 0.6532 | 848.7 | 675.1 | |
| 0.35 | 1.41 | 0.23 | 0.92 | 11.24 | 161.48 | -40.86 | 80.63 | 0.6527 | 717.2 | 614.7 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 11.71 | 161.27 | -41.07 | 79.92 | 0.6557 | 634.0 | 489.5 | |
| 0.00 | 1.67 | 0.00 | 1.10 | 12.21 | 161.10 | -41.24 | 79.17 | 0.6583 | 794.0 | 624.1 | |
| 2.03 | 3.97 | 1.33 | 2.61 | 11.89 | 160.91 | -41.43 | 79.67 | 0.6605 | 720.6 | 569.9 | |
| 0.62 | 2.91 | 0.41 | 1.92 | 12.06 | 160.67 | -41.67 | 79.44 | 0.6636 | 634.3 | 495.8 | |
| 1.59 | 2.82 | 1.05 | 1.87 | 12.09 | 160.29 | -42.04 | 79.43 | 0.6685 | 541.8 | 372.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
