SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.69 | 0.00 | 12.02 | -16.97 | 202.22 | 0.44 | 182.10 | 0.4255 | -60.3 | -54.1 | |
|
previous
or next observation for the same group /

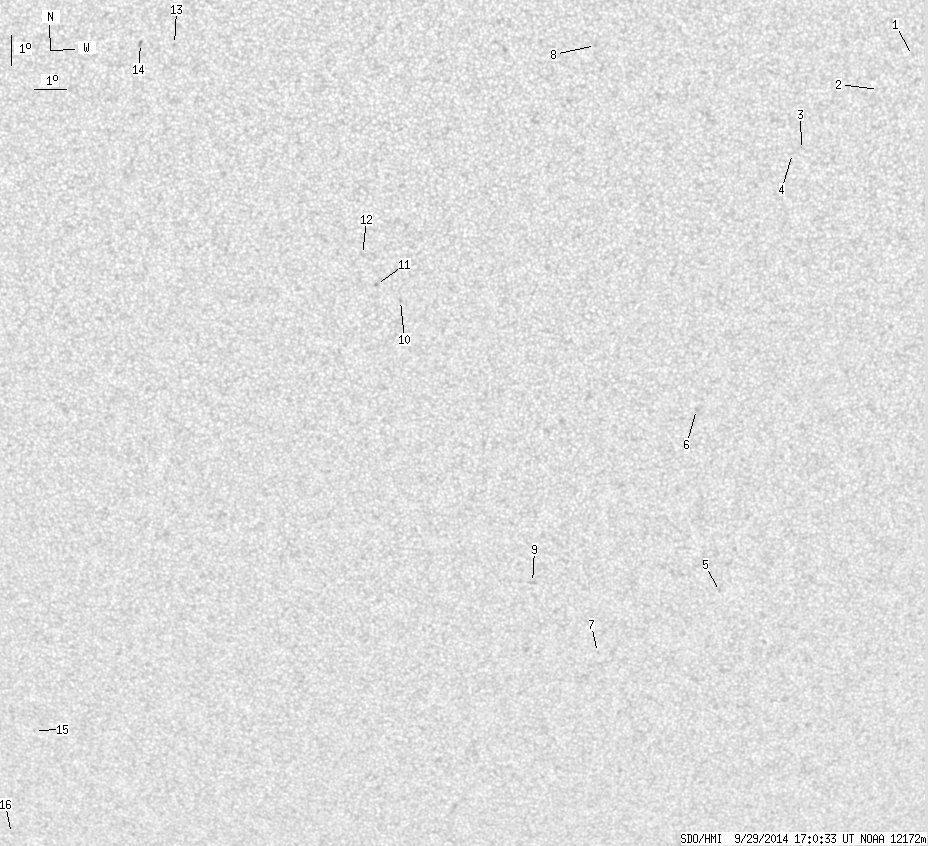

back to the solar disc SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.88 | -7.45 | 216.46 | 14.67 | 226.05 | 0.3503 | -8.0 | -4.1 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -8.47 | 215.43 | 13.64 | 221.92 | 0.3508 | 5.0 | 0.3 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.28 | 213.09 | 11.31 | 213.52 | 0.3509 | 13.0 | 3.7 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -10.40 | 212.82 | 11.03 | 212.68 | 0.3501 | 5.0 | 5.3 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -24.85 | 211.29 | 9.50 | 195.98 | 0.5461 | 842.0 | 738.3 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -18.60 | 210.15 | 8.36 | 197.86 | 0.4510 | 739.0 | 598.7 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -26.95 | 207.31 | 5.52 | 188.79 | 0.5637 | 695.0 | 521.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -6.93 | 206.70 | 4.92 | 199.77 | 0.2526 | -816.0 | -557.6 | |
| 0.00 | 3.00 | 0.00 | 1.74 | -24.43 | 205.04 | 3.26 | 185.70 | 0.5228 | 671.0 | 475.6 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -14.94 | 200.76 | -1.02 | 177.33 | 0.3721 | -809.0 | -580.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.42 | 200.02 | -1.76 | 175.29 | 0.3645 | -861.0 | -719.5 | |
| 0.00 | 2.56 | 0.00 | 1.35 | -13.46 | 199.60 | -2.19 | 173.87 | 0.3495 | 11.0 | -17.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -6.92 | 193.94 | -7.84 | 150.12 | 0.2732 | 954.0 | 743.1 | |
| 0.00 | 2.29 | 0.00 | 1.18 | -6.91 | 192.90 | -8.88 | 146.92 | 0.2821 | -1127.0 | -830.7 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -29.99 | 187.79 | -13.99 | 160.63 | 0.6336 | -691.0 | -539.5 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -34.00 | 186.28 | -15.50 | 161.17 | 0.6888 | -588.0 | -426.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
