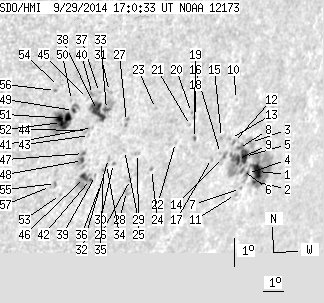

SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.64 | 269.15 | 50.53 | 227.72 | -16.71 | 250.96 | 49.17 | 243.53 | 0.8092 | -82.9 | -38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.69 | 104.69 | 9.18 | 97.89 | -17.84 | 255.51 | 53.73 | 244.22 | 0.8544 | 627.7 | 207.0 | |
| 1.50 | -1.00 | 1.42 | -1.00 | -18.16 | 255.50 | 53.71 | 243.85 | 0.8552 | 425.1 | 999999 | |
| 0.00 | 6.87 | 0.00 | 6.32 | -16.82 | 254.71 | 52.93 | 245.04 | 0.8445 | 157.0 | 210.0 | |
| 1.32 | -1.00 | 1.24 | -1.00 | -17.85 | 254.98 | 53.20 | 244.00 | 0.8501 | 561.0 | 999999 | |
| 7.84 | -1.00 | 7.21 | -1.00 | -17.26 | 254.58 | 52.79 | 244.50 | 0.8448 | 710.0 | 999999 | |
| 1.15 | -1.00 | 1.06 | -1.00 | -17.72 | 254.67 | 52.88 | 244.02 | 0.8470 | 504.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.15 | -18.32 | 254.82 | 53.03 | 243.41 | 0.8503 | 499.0 | 408.6 | |
| 0.26 | -1.00 | 0.24 | -1.00 | -16.96 | 254.14 | 52.36 | 244.66 | 0.8401 | 719.7 | 999999 | |
| 3.35 | -1.00 | 3.06 | -1.00 | -17.32 | 254.24 | 52.45 | 244.29 | 0.8421 | 812.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.85 | -15.31 | 253.43 | 51.64 | 246.24 | 0.8285 | 215.0 | 214.7 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -18.50 | 254.64 | 52.85 | 243.14 | 0.8493 | 409.0 | 438.3 | |
| 0.44 | 2.03 | 0.40 | 1.82 | -16.73 | 253.80 | 52.01 | 244.78 | 0.8364 | 693.8 | 596.9 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -16.58 | 253.59 | 51.80 | 244.87 | 0.8341 | 637.0 | 589.6 | |
| 0.00 | 5.29 | 0.00 | 4.73 | -17.18 | 253.46 | 51.67 | 244.14 | 0.8351 | 682.0 | 582.3 | |
| 0.00 | 1.23 | 0.00 | 1.09 | -16.50 | 253.10 | 51.31 | 244.76 | 0.8296 | 471.0 | 437.7 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -17.03 | 253.25 | 51.46 | 244.22 | 0.8327 | 700.0 | 641.3 | |
| 0.00 | 2.20 | 0.00 | 1.94 | -17.15 | 252.84 | 51.06 | 243.92 | 0.8296 | 683.0 | 497.2 | |
| 0.53 | 1.67 | 0.45 | 1.43 | -16.40 | 251.72 | 49.94 | 244.30 | 0.8170 | 666.2 | 541.3 | |
| 0.00 | 1.32 | 0.00 | 1.12 | -15.70 | 251.48 | 49.70 | 245.01 | 0.8122 | 595.0 | 499.1 | |
| 0.00 | 0.79 | 0.00 | 0.67 | -15.52 | 251.28 | 49.49 | 245.13 | 0.8097 | 589.0 | 599.0 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -15.95 | 251.37 | 49.59 | 244.67 | 0.8121 | 612.0 | 516.2 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -16.44 | 250.82 | 49.03 | 243.86 | 0.8089 | -251.0 | -337.0 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -15.22 | 249.48 | 47.70 | 244.69 | 0.7917 | 529.0 | 506.3 | |
| 0.00 | 1.59 | 0.00 | 1.31 | -17.23 | 249.95 | 48.16 | 242.56 | 0.8040 | -441.0 | -266.9 | |
| 0.00 | 2.12 | 0.00 | 1.71 | -16.64 | 249.09 | 47.30 | 242.85 | 0.7936 | -351.0 | -337.8 | |
| 0.00 | 1.41 | 0.00 | 1.15 | -17.48 | 249.04 | 47.26 | 241.86 | 0.7967 | -308.0 | -226.7 | |
| 0.00 | 2.91 | 0.00 | 2.30 | -15.53 | 248.24 | 46.45 | 243.76 | 0.7809 | -556.0 | -448.5 | |
| 0.00 | 4.49 | 0.00 | 3.68 | -17.86 | 248.99 | 47.20 | 241.39 | 0.7978 | -509.0 | -377.0 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -16.48 | 248.44 | 46.65 | 242.73 | 0.7868 | -458.0 | -330.6 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -16.87 | 248.06 | 46.27 | 242.09 | 0.7848 | -321.0 | -288.2 | |
| 0.00 | 2.82 | 0.00 | 2.16 | -14.47 | 247.18 | 45.40 | 244.53 | 0.7659 | -107.0 | -117.8 | |
| 0.00 | 1.76 | 0.00 | 1.39 | -16.68 | 247.77 | 45.98 | 242.17 | 0.7813 | -426.0 | -430.1 | |
| 1.50 | 28.91 | 1.15 | 22.20 | -15.05 | 247.21 | 45.42 | 243.84 | 0.7686 | -526.1 | -193.1 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -16.87 | 247.74 | 45.95 | 241.93 | 0.7818 | -353.0 | -382.0 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -17.06 | 247.66 | 45.88 | 241.67 | 0.7819 | -522.0 | -436.5 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -17.52 | 247.68 | 45.89 | 241.14 | 0.7840 | -357.0 | -365.0 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -14.46 | 246.74 | 44.95 | 244.32 | 0.7614 | -323.0 | -199.0 | |
| 12.34 | -33.00 | 9.45 | -33.00 | -15.05 | 246.81 | 45.02 | 243.65 | 0.7646 | -677.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.90 | -17.19 | 247.35 | 45.56 | 241.36 | 0.7794 | -471.0 | -392.9 | |
| 0.00 | 2.56 | 0.00 | 1.93 | -14.50 | 246.44 | 44.66 | 244.13 | 0.7586 | -427.0 | -225.9 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -15.59 | 246.73 | 44.95 | 242.96 | 0.7663 | -592.0 | -526.7 | |
| 0.71 | 19.92 | 0.55 | 15.57 | -17.31 | 247.16 | 45.37 | 241.13 | 0.7782 | -563.0 | -379.9 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -15.84 | 246.67 | 44.88 | 242.62 | 0.7668 | -565.0 | -518.5 | |
| 0.00 | 2.47 | 0.00 | 1.89 | -15.66 | 246.53 | 44.75 | 242.76 | 0.7647 | -716.0 | -576.8 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -14.61 | 246.25 | 44.47 | 243.90 | 0.7571 | -299.0 | -241.3 | |
| 3.44 | -42.00 | 2.68 | -42.00 | -17.21 | 246.86 | 45.07 | 241.08 | 0.7749 | -847.8 | 999999 | |
| 0.53 | 8.90 | 0.41 | 6.87 | -16.41 | 246.57 | 44.78 | 241.89 | 0.7684 | -685.2 | -630.0 | |
| 1.59 | -47.00 | 1.22 | -47.00 | -16.64 | 246.59 | 44.81 | 241.63 | 0.7697 | -853.2 | 999999 | |
| 1.23 | 40.45 | 0.93 | 30.20 | -14.95 | 245.73 | 43.94 | 243.22 | 0.7533 | -639.4 | -597.3 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -14.62 | 245.56 | 43.77 | 243.54 | 0.7500 | -708.0 | -524.2 | |
| 4.94 | -49.00 | 3.70 | -49.00 | -15.19 | 245.53 | 43.75 | 242.83 | 0.7524 | -747.3 | 999999 | |
| 8.28 | -49.00 | 6.18 | -49.00 | -15.30 | 245.30 | 43.52 | 242.57 | 0.7506 | -938.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -17.69 | 245.94 | 44.15 | 240.04 | 0.7683 | -530.0 | -463.9 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -14.11 | 244.88 | 43.09 | 243.82 | 0.7406 | -538.0 | -400.5 | |
| 0.00 | 1.76 | 0.00 | 1.35 | -17.30 | 245.60 | 43.81 | 240.32 | 0.7631 | -765.0 | -589.6 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -14.23 | 244.78 | 42.99 | 243.62 | 0.7402 | -560.0 | -469.6 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -17.38 | 245.41 | 43.62 | 240.12 | 0.7616 | -353.0 | -381.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
