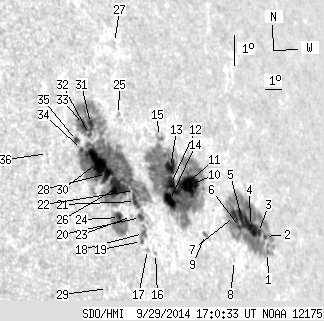

SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.43 | 861.61 | 181.70 | 820.64 | 15.14 | 260.97 | 59.19 | 283.69 | 0.8542 | -63.5 | -105.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 172.11 | 1.00 | 188.25 | 12.68 | 266.53 | 64.74 | 280.83 | 0.9002 | -363.0 | -205.4 | |
| 1.50 | -1.00 | 1.69 | -1.00 | 13.16 | 266.62 | 64.84 | 281.37 | 0.9008 | -119.6 | 999999 | |
| 2.38 | -1.00 | 2.66 | -1.00 | 13.33 | 266.20 | 64.41 | 281.55 | 0.8976 | -347.9 | 999999 | |
| 14.72 | -1.00 | 16.15 | -1.00 | 13.56 | 265.74 | 63.95 | 281.80 | 0.8941 | -638.5 | 999999 | |
| 7.67 | -1.00 | 8.27 | -1.00 | 13.89 | 265.27 | 63.48 | 282.16 | 0.8905 | -709.6 | 999999 | |
| 1.94 | -1.00 | 2.08 | -1.00 | 13.64 | 265.01 | 63.22 | 281.88 | 0.8884 | -759.4 | 999999 | |
| 5.99 | -1.00 | 6.38 | -1.00 | 13.97 | 264.82 | 63.04 | 282.24 | 0.8870 | -878.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 12.68 | 264.22 | 62.43 | 280.77 | 0.8823 | -531.0 | -518.7 | |
| 0.71 | 2.47 | 0.70 | 2.46 | 13.63 | 262.74 | 60.95 | 281.85 | 0.8701 | -638.0 | -559.6 | |
| 27.85 | 272.75 | 27.52 | 264.50 | 15.18 | 262.37 | 60.58 | 283.64 | 0.8671 | -817.1 | -403.5 | |
| 5.73 | -10.00 | 5.53 | -10.00 | 15.07 | 261.56 | 59.77 | 283.53 | 0.8602 | -1242.4 | 999999 | |
| 8.90 | -10.00 | 8.54 | -10.00 | 15.32 | 261.30 | 59.51 | 283.82 | 0.8580 | -1103.5 | 999999 | |
| 10.49 | -10.00 | 10.12 | -10.00 | 15.82 | 261.54 | 59.76 | 284.40 | 0.8602 | -840.1 | 999999 | |
| 11.90 | -10.00 | 11.31 | -10.00 | 14.85 | 261.03 | 59.24 | 283.28 | 0.8555 | 130.1 | 999999 | |
| 0.00 | 4.67 | 0.00 | 4.48 | 16.80 | 261.29 | 59.51 | 285.56 | 0.8583 | -578.0 | -508.5 | |
| 0.00 | 1.06 | 0.00 | 0.97 | 13.36 | 259.57 | 57.78 | 281.55 | 0.8423 | 399.0 | 356.2 | |
| 0.00 | 1.23 | 0.00 | 1.12 | 13.53 | 259.17 | 57.38 | 281.75 | 0.8386 | 497.0 | 500.8 | |
| 1.94 | 10.31 | 1.75 | 9.31 | 14.02 | 259.13 | 57.34 | 282.34 | 0.8383 | 523.2 | 415.6 | |
| 0.53 | -18.00 | 0.48 | -18.00 | 13.80 | 258.93 | 57.14 | 282.08 | 0.8364 | 569.7 | 999999 | |
| 2.47 | 362.38 | 2.23 | 319.10 | 14.51 | 259.15 | 57.37 | 282.93 | 0.8386 | 588.3 | 137.6 | |
| 5.55 | -20.00 | 5.01 | -20.00 | 15.01 | 259.07 | 57.29 | 283.53 | 0.8380 | 438.4 | 999999 | |
| 2.56 | -20.00 | 2.31 | -20.00 | 15.34 | 259.16 | 57.37 | 283.92 | 0.8388 | -316.9 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.57 | 14.59 | 258.67 | 56.88 | 283.04 | 0.8341 | 527.0 | 412.0 | |
| 5.73 | 28.38 | 5.03 | 24.86 | 14.63 | 258.00 | 56.21 | 283.10 | 0.8278 | 828.3 | 441.0 | |
| 0.00 | 1.50 | 0.00 | 1.37 | 17.69 | 259.32 | 57.53 | 286.70 | 0.8413 | 285.0 | 264.5 | |
| 23.27 | -20.00 | 20.58 | -20.00 | 15.52 | 258.26 | 56.47 | 284.18 | 0.8306 | 646.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.74 | 19.85 | 260.27 | 58.48 | 289.19 | 0.8511 | 374.0 | 293.7 | |
| 9.25 | -20.00 | 8.11 | -20.00 | 15.99 | 257.89 | 56.10 | 284.76 | 0.8273 | 698.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.20 | 12.58 | 256.61 | 54.83 | 280.64 | 0.8139 | 409.0 | 295.9 | |
| 29.35 | -20.00 | 25.49 | -20.00 | 16.37 | 257.49 | 55.71 | 285.24 | 0.8237 | 917.4 | 999999 | |
| 3.26 | -20.00 | 2.85 | -20.00 | 17.57 | 257.64 | 55.85 | 286.69 | 0.8259 | 502.0 | 999999 | |
| 1.23 | -20.00 | 1.07 | -20.00 | 17.25 | 257.44 | 55.65 | 286.31 | 0.8237 | 637.1 | 999999 | |
| 2.20 | -20.00 | 1.91 | -20.00 | 17.57 | 257.25 | 55.46 | 286.72 | 0.8222 | 863.6 | 999999 | |
| 1.23 | -20.00 | 1.05 | -20.00 | 16.84 | 256.81 | 55.02 | 285.86 | 0.8175 | 820.9 | 999999 | |
| 2.20 | -20.00 | 1.88 | -20.00 | 17.13 | 256.66 | 54.88 | 286.23 | 0.8163 | 760.7 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.43 | 16.89 | 255.00 | 53.21 | 286.07 | 0.7997 | 452.0 | 457.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
