SDO HMI 2014-09-29 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 202.78 | 1053.31 | 143.01 | 739.54 | -11.23 | 242.45 | 41.22 | 246.14 | 0.7046 | 104.5 | 34.2 | |
|
previous
or next observation for the same group /

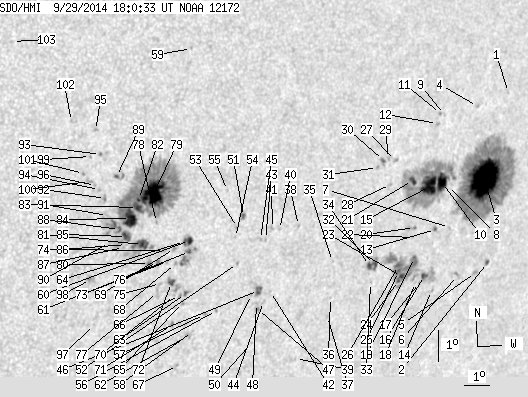

back to the solar disc SDO HMI 2014-09-29 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.20 | -8.22 | 248.75 | 47.52 | 253.16 | 0.7649 | 430.0 | 367.7 | |
| 1.23 | 2.29 | 0.98 | 1.82 | -13.56 | 248.92 | 47.69 | 246.66 | 0.7852 | 337.6 | 338.0 | |
| 67.50 | 327.72 | 51.96 | 252.47 | -10.87 | 248.16 | 46.92 | 249.61 | 0.7675 | 1147.4 | 320.6 | |
| 0.00 | 1.41 | 0.00 | 1.05 | -8.53 | 247.42 | 46.19 | 252.26 | 0.7515 | 655.0 | 619.2 | |
| 0.00 | 2.47 | 0.00 | 1.95 | -13.83 | 248.45 | 47.21 | 246.13 | 0.7815 | -332.0 | -226.3 | |
| 0.00 | 3.00 | 0.00 | 2.33 | -13.86 | 247.63 | 46.40 | 245.74 | 0.7735 | -517.0 | -393.7 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -12.27 | 246.90 | 45.66 | 247.34 | 0.7596 | 718.0 | 639.1 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -10.95 | 246.53 | 45.30 | 248.83 | 0.7506 | 67.0 | 17.2 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -8.66 | 246.01 | 44.77 | 251.54 | 0.7363 | 532.0 | 476.8 | |
| 12.78 | 158.18 | 9.49 | 116.11 | -10.80 | 246.29 | 45.05 | 248.91 | 0.7474 | 792.0 | 533.0 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -8.61 | 245.83 | 44.59 | 251.53 | 0.7342 | 710.0 | 624.9 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -8.91 | 245.74 | 44.51 | 251.10 | 0.7343 | 785.0 | 713.7 | |
| 0.79 | 1.94 | 0.59 | 1.45 | -12.28 | 246.28 | 45.05 | 247.06 | 0.7532 | -326.1 | -153.7 | |
| 0.00 | 1.85 | 0.00 | 1.42 | -14.24 | 246.57 | 45.34 | 244.78 | 0.7644 | -351.0 | -421.5 | |
| 17.45 | -10.00 | 12.84 | -10.00 | -10.88 | 245.74 | 44.50 | 248.57 | 0.7418 | 1091.8 | 999999 | |
| 2.82 | 14.98 | 2.13 | 11.37 | -13.72 | 246.14 | 44.90 | 245.20 | 0.7577 | -397.0 | 148.1 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -13.93 | 245.97 | 44.73 | 244.86 | 0.7569 | -461.0 | -349.1 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -13.91 | 245.79 | 44.55 | 244.79 | 0.7550 | -474.0 | -441.4 | |
| 0.97 | 62.83 | 0.72 | 46.51 | -13.10 | 245.55 | 44.32 | 245.69 | 0.7490 | 734.8 | -64.3 | |
| 0.35 | 3.88 | 0.26 | 2.85 | -12.13 | 245.34 | 44.11 | 246.80 | 0.7426 | 706.5 | 422.8 | |
| 3.97 | -10.00 | 2.88 | -10.00 | -10.62 | 244.96 | 43.73 | 248.55 | 0.7323 | 1005.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -12.45 | 245.32 | 44.09 | 246.39 | 0.7438 | 605.0 | 576.9 | |
| 2.38 | -19.00 | 1.77 | -19.00 | -13.67 | 245.12 | 43.89 | 244.77 | 0.7470 | -732.2 | 999999 | |
| 1.06 | -19.00 | 0.78 | -19.00 | -13.78 | 245.02 | 43.79 | 244.58 | 0.7464 | -770.6 | 999999 | |
| 2.03 | -19.00 | 1.50 | -19.00 | -13.49 | 244.95 | 43.72 | 244.91 | 0.7444 | -445.4 | 999999 | |
| 3.00 | -19.00 | 2.21 | -19.00 | -13.30 | 244.91 | 43.67 | 245.13 | 0.7431 | -15.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.25 | -9.93 | 244.13 | 42.89 | 249.07 | 0.7202 | 715.0 | 665.1 | |
| 0.00 | 1.67 | 0.00 | 1.19 | -10.67 | 244.05 | 42.81 | 248.06 | 0.7223 | 676.0 | 592.4 | |
| 0.00 | 1.94 | 0.00 | 1.37 | -9.84 | 243.82 | 42.59 | 249.04 | 0.7164 | 690.0 | 616.2 | |
| 0.97 | 3.00 | 0.68 | 2.11 | -9.89 | 243.62 | 42.39 | 248.89 | 0.7143 | 826.9 | 746.1 | |
| 0.00 | 1.32 | 0.00 | 0.93 | -10.09 | 243.41 | 42.17 | 248.52 | 0.7127 | 782.0 | 722.7 | |
| 2.64 | 10.05 | 1.91 | 7.26 | -13.18 | 243.86 | 42.63 | 244.75 | 0.7314 | -588.1 | -484.9 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -13.75 | 243.82 | 42.59 | 244.01 | 0.7336 | -540.0 | -447.8 | |
| 2.82 | -32.00 | 2.03 | -32.00 | -13.19 | 243.66 | 42.42 | 244.62 | 0.7293 | -768.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -12.93 | 242.07 | 40.84 | 244.11 | 0.7108 | 420.0 | 433.5 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.09 | 242.23 | 41.00 | 242.71 | 0.7183 | 363.0 | 322.8 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -14.70 | 242.24 | 41.01 | 241.95 | 0.7215 | 369.0 | 288.3 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -11.67 | 240.47 | 39.24 | 244.88 | 0.6865 | -231.0 | -336.8 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -15.97 | 241.23 | 39.99 | 239.76 | 0.7176 | 475.0 | 382.8 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -11.74 | 239.73 | 38.50 | 244.36 | 0.6784 | 437.0 | 356.5 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -11.68 | 239.45 | 38.21 | 244.27 | 0.6748 | 779.0 | 656.2 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -13.70 | 239.73 | 38.50 | 241.74 | 0.6889 | 480.0 | 445.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -12.01 | 239.23 | 37.99 | 243.69 | 0.6740 | 753.0 | 716.8 | |
| 0.00 | 1.76 | 0.00 | 1.20 | -14.00 | 239.51 | 38.28 | 241.21 | 0.6882 | 412.0 | 404.5 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -12.00 | 239.03 | 37.80 | 243.59 | 0.6717 | 754.0 | 732.1 | |
| 3.52 | 6.87 | 2.38 | 4.65 | -13.63 | 239.24 | 38.01 | 241.53 | 0.6831 | 795.3 | 446.2 | |
| 0.00 | 2.20 | 0.00 | 1.50 | -14.24 | 239.32 | 38.09 | 240.78 | 0.6874 | 558.0 | 492.8 | |
| 0.00 | 1.32 | 0.00 | 0.90 | -14.05 | 239.24 | 38.01 | 240.99 | 0.6854 | 618.0 | 484.0 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -13.74 | 238.99 | 37.75 | 241.23 | 0.6808 | 794.0 | 636.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -15.30 | 239.30 | 38.07 | 239.40 | 0.6933 | 410.0 | 425.3 | |
| 0.97 | 3.35 | 0.64 | 2.20 | -11.21 | 238.25 | 37.02 | 244.19 | 0.6583 | -667.5 | -540.0 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -12.70 | 238.26 | 37.02 | 242.15 | 0.6666 | -557.0 | -408.3 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -11.55 | 238.07 | 36.84 | 243.61 | 0.6580 | -533.0 | -453.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -11.86 | 238.04 | 36.81 | 243.16 | 0.6594 | 420.0 | 308.8 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -10.34 | 237.52 | 36.28 | 244.96 | 0.6449 | -679.0 | -533.8 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -14.15 | 237.70 | 36.47 | 239.84 | 0.6689 | -577.0 | -465.5 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -14.25 | 237.26 | 36.03 | 239.41 | 0.6645 | -814.0 | -655.7 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -14.77 | 236.90 | 35.66 | 238.47 | 0.6637 | -606.0 | -432.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -5.81 | 235.72 | 34.48 | 250.68 | 0.5991 | -547.0 | -460.7 | |
| 3.26 | 25.29 | 2.09 | 16.27 | -11.83 | 236.29 | 35.06 | 242.06 | 0.6387 | -828.4 | -486.3 | |
| 1.06 | -60.00 | 0.68 | -60.00 | -12.18 | 236.34 | 35.11 | 241.60 | 0.6414 | -674.0 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.80 | -14.89 | 236.77 | 35.53 | 238.22 | 0.6630 | -877.0 | -657.9 | |
| 0.97 | 3.00 | 0.63 | 1.95 | -13.52 | 236.41 | 35.17 | 239.80 | 0.6503 | -562.7 | -375.4 | |
| 0.62 | -60.00 | 0.40 | -60.00 | -11.84 | 236.11 | 34.87 | 241.90 | 0.6366 | -864.0 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.55 | -13.80 | 236.34 | 35.11 | 239.37 | 0.6514 | -333.0 | -357.7 | |
| 0.00 | 1.59 | 0.00 | 1.03 | -13.56 | 236.19 | 34.95 | 239.58 | 0.6481 | -394.0 | -544.5 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -15.84 | 236.53 | 35.30 | 236.80 | 0.6666 | -731.0 | -633.9 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -12.52 | 235.87 | 34.63 | 240.79 | 0.6380 | -599.0 | -516.4 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -12.04 | 235.76 | 34.53 | 241.39 | 0.6337 | -911.0 | -747.9 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -13.55 | 236.00 | 34.76 | 239.46 | 0.6459 | -633.0 | -527.4 | |
| 0.00 | 1.85 | 0.00 | 1.21 | -14.48 | 236.08 | 34.85 | 238.26 | 0.6528 | -786.0 | -634.9 | |
| 2.47 | 9.96 | 1.59 | 6.42 | -13.12 | 235.81 | 34.58 | 239.92 | 0.6411 | -831.9 | -570.8 | |
| 0.00 | 1.94 | 0.00 | 1.24 | -12.44 | 235.56 | 34.32 | 240.69 | 0.6338 | -671.0 | -557.4 | |
| 0.00 | 2.73 | 0.00 | 1.74 | -12.08 | 235.39 | 34.16 | 241.07 | 0.6296 | -741.0 | -747.3 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -13.13 | 235.40 | 34.17 | 239.61 | 0.6363 | -708.0 | -663.8 | |
| 0.62 | 2.64 | 0.39 | 1.68 | -12.44 | 235.19 | 33.95 | 240.41 | 0.6294 | -765.4 | -631.5 | |
| 0.00 | 3.61 | 0.00 | 2.32 | -13.41 | 235.33 | 34.10 | 239.17 | 0.6374 | -555.0 | -470.7 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.17 | 234.97 | 33.74 | 242.08 | 0.6189 | 146.0 | 120.6 | |
| 31.64 | 285.43 | 19.74 | 177.73 | -10.24 | 234.74 | 33.51 | 243.28 | 0.6105 | -1157.0 | -443.3 | |
| 0.00 | 3.52 | 0.00 | 2.23 | -12.45 | 234.89 | 33.66 | 240.18 | 0.6260 | -751.0 | -629.4 | |
| 6.61 | 25.91 | 4.15 | 16.28 | -11.83 | 234.54 | 33.31 | 240.81 | 0.6179 | -841.1 | -467.0 | |
| 0.88 | -79.00 | 0.55 | -79.00 | -10.39 | 234.21 | 32.98 | 242.68 | 0.6049 | -1200.4 | 999999 | |
| 5.99 | -79.00 | 3.73 | -79.00 | -10.64 | 234.21 | 32.97 | 242.30 | 0.6064 | -1001.5 | 999999 | |
| 14.98 | -79.00 | 9.31 | -79.00 | -10.97 | 233.99 | 32.76 | 241.65 | 0.6058 | -1062.2 | 999999 | |
| 4.49 | -79.00 | 2.80 | -79.00 | -11.54 | 233.92 | 32.68 | 240.77 | 0.6085 | -898.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -11.79 | 233.95 | 32.72 | 240.43 | 0.6106 | -361.0 | -434.7 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -11.88 | 233.85 | 32.62 | 240.23 | 0.6100 | -273.0 | -287.7 | |
| 1.15 | -79.00 | 0.71 | -79.00 | -11.30 | 233.63 | 32.40 | 240.91 | 0.6035 | -912.5 | 999999 | |
| 0.79 | 4.58 | 0.49 | 2.81 | -9.61 | 233.33 | 32.09 | 243.21 | 0.5891 | -902.9 | -783.5 | |
| 0.00 | 1.59 | 0.00 | 0.98 | -11.68 | 233.32 | 32.08 | 240.10 | 0.6023 | -277.0 | -277.6 | |
| 0.00 | 2.20 | 0.00 | 1.35 | -10.82 | 233.14 | 31.91 | 241.23 | 0.5944 | -438.0 | -520.5 | |
| 0.00 | 2.56 | 0.00 | 1.56 | -10.28 | 233.01 | 31.77 | 241.95 | 0.5893 | -891.0 | -720.2 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -8.89 | 232.68 | 31.45 | 243.86 | 0.5764 | 529.0 | 406.6 | |
| 0.00 | 1.41 | 0.00 | 0.86 | -9.98 | 232.76 | 31.52 | 242.21 | 0.5842 | -617.0 | -566.2 | |
| 0.00 | 1.76 | 0.00 | 1.06 | -8.12 | 232.44 | 31.20 | 244.88 | 0.5686 | -748.0 | -583.5 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -9.85 | 232.60 | 31.37 | 242.30 | 0.5814 | -665.0 | -454.5 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.28 | 233.15 | 31.91 | 236.26 | 0.6183 | -598.0 | -547.3 | |
| 0.00 | 5.20 | 0.00 | 3.22 | -12.82 | 232.78 | 31.55 | 238.02 | 0.6037 | -858.0 | -723.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -8.93 | 232.33 | 31.10 | 243.53 | 0.5721 | 536.0 | 482.4 | |
| 0.00 | 3.00 | 0.00 | 1.81 | -9.71 | 232.37 | 31.14 | 242.34 | 0.5776 | -784.0 | -686.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -9.44 | 232.13 | 30.90 | 242.57 | 0.5729 | -780.0 | -736.3 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -7.79 | 231.56 | 30.33 | 244.78 | 0.5551 | -806.0 | -617.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -5.19 | 229.35 | 28.12 | 247.58 | 0.5097 | -87.0 | -122.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
