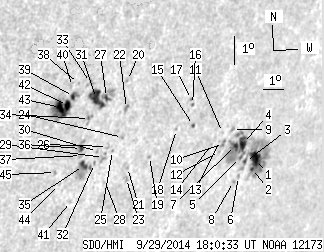

SDO HMI 2014-09-29 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.06 | 248.75 | 49.35 | 213.29 | -16.78 | 251.04 | 49.81 | 243.72 | 0.8151 | -81.3 | -51.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-29 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.78 | 106.45 | 12.30 | 101.10 | -17.86 | 255.57 | 54.33 | 244.42 | 0.8593 | 488.2 | 213.8 | |
| 1.41 | -1.00 | 1.36 | -1.00 | -18.15 | 255.54 | 54.30 | 244.09 | 0.8600 | 436.6 | 999999 | |
| 1.23 | -1.00 | 1.17 | -1.00 | -17.88 | 255.03 | 53.80 | 244.20 | 0.8551 | 534.6 | 999999 | |
| 7.75 | -1.00 | 7.24 | -1.00 | -17.25 | 254.60 | 53.37 | 244.73 | 0.8496 | 690.7 | 999999 | |
| 0.70 | -1.00 | 0.66 | -1.00 | -17.71 | 254.69 | 53.46 | 244.25 | 0.8518 | 496.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.34 | -18.35 | 254.87 | 53.63 | 243.62 | 0.8552 | 548.0 | 417.0 | |
| 2.03 | -1.00 | 1.88 | -1.00 | -17.28 | 254.24 | 53.01 | 244.56 | 0.8467 | 837.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.08 | -18.49 | 254.66 | 53.43 | 243.38 | 0.8540 | 508.0 | 444.9 | |
| 0.00 | 1.85 | 0.00 | 1.69 | -16.72 | 253.86 | 52.63 | 245.03 | 0.8417 | 771.0 | 661.0 | |
| 0.00 | 2.73 | 0.00 | 2.48 | -17.14 | 253.56 | 52.33 | 244.44 | 0.8405 | 690.0 | 628.7 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -16.77 | 253.36 | 52.13 | 244.78 | 0.8376 | 568.0 | 639.7 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -17.39 | 253.46 | 52.22 | 244.12 | 0.8405 | 451.0 | 449.7 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -17.06 | 253.32 | 52.09 | 244.44 | 0.8382 | 634.0 | 569.5 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -17.12 | 252.94 | 51.70 | 244.22 | 0.8351 | 677.0 | 551.4 | |
| 0.62 | 1.67 | 0.53 | 1.45 | -16.39 | 251.76 | 50.52 | 244.56 | 0.8222 | 552.7 | 514.4 | |
| 0.00 | 1.23 | 0.00 | 1.05 | -15.68 | 251.46 | 50.23 | 245.25 | 0.8171 | 518.0 | 468.4 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -15.51 | 251.36 | 50.12 | 245.40 | 0.8155 | 619.0 | 612.5 | |
| 0.00 | 0.79 | 0.00 | 0.67 | -16.44 | 250.94 | 49.71 | 244.16 | 0.8150 | -367.0 | -266.2 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -17.22 | 249.91 | 48.68 | 242.82 | 0.8086 | -435.0 | -285.1 | |
| 0.00 | 1.15 | 0.00 | 0.90 | -14.60 | 248.06 | 46.83 | 245.04 | 0.7807 | 506.0 | 415.7 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -17.48 | 248.96 | 47.73 | 242.07 | 0.8011 | -245.0 | -232.1 | |
| 0.00 | 3.17 | 0.00 | 2.53 | -15.51 | 248.28 | 47.04 | 244.05 | 0.7865 | -624.0 | -418.9 | |
| 0.00 | 2.64 | 0.00 | 2.19 | -17.85 | 249.04 | 47.81 | 241.69 | 0.8033 | -413.0 | -378.2 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -16.46 | 248.39 | 47.15 | 242.99 | 0.7915 | -282.0 | -312.0 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -16.85 | 248.05 | 46.82 | 242.38 | 0.7899 | -248.0 | -291.6 | |
| 0.00 | 2.47 | 0.00 | 1.97 | -16.69 | 247.77 | 46.54 | 242.42 | 0.7866 | -406.0 | -458.6 | |
| 0.88 | 28.55 | 0.69 | 22.15 | -15.07 | 247.24 | 46.01 | 244.10 | 0.7746 | -460.7 | -210.0 | |
| 0.00 | 0.70 | 0.00 | 0.57 | -17.89 | 248.08 | 46.84 | 241.18 | 0.7946 | -262.0 | -221.1 | |
| 0.00 | 3.79 | 0.00 | 3.03 | -17.04 | 247.70 | 46.47 | 241.98 | 0.7874 | -478.0 | -351.0 | |
| 0.00 | 1.50 | 0.00 | 1.19 | -16.82 | 247.35 | 46.12 | 242.07 | 0.7832 | -565.0 | -461.2 | |
| 12.51 | -27.00 | 9.67 | -27.00 | -15.06 | 246.79 | 45.56 | 243.89 | 0.7701 | -679.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -17.21 | 247.34 | 46.11 | 241.61 | 0.7847 | -398.0 | -350.7 | |
| 0.00 | 3.61 | 0.00 | 2.76 | -14.51 | 246.38 | 45.14 | 244.35 | 0.7635 | -265.0 | -193.8 | |
| 0.00 | 4.05 | 0.00 | 3.14 | -15.69 | 246.66 | 45.42 | 243.07 | 0.7714 | -707.0 | -573.3 | |
| 3.26 | 17.89 | 2.57 | 14.12 | -17.23 | 246.85 | 45.62 | 241.34 | 0.7802 | -822.9 | -383.0 | |
| 2.03 | 6.17 | 1.58 | 4.81 | -16.65 | 246.58 | 45.35 | 241.89 | 0.7750 | -807.6 | -686.3 | |
| 0.00 | 2.11 | 0.00 | 1.66 | -16.88 | 246.65 | 45.42 | 241.65 | 0.7767 | -624.0 | -522.6 | |
| 0.00 | 1.15 | 0.00 | 0.87 | -14.49 | 245.85 | 44.61 | 244.11 | 0.7581 | -479.0 | -425.4 | |
| 2.03 | 39.13 | 1.53 | 29.50 | -14.90 | 245.73 | 44.50 | 243.56 | 0.7587 | -636.9 | -578.0 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -14.57 | 245.60 | 44.37 | 243.90 | 0.7559 | -652.0 | -656.0 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -18.38 | 246.64 | 45.41 | 239.89 | 0.7835 | -376.0 | -299.7 | |
| 4.93 | -39.00 | 3.73 | -39.00 | -15.17 | 245.54 | 44.31 | 243.13 | 0.7580 | -742.9 | 999999 | |
| 5.90 | -39.00 | 4.44 | -39.00 | -15.21 | 245.25 | 44.01 | 242.94 | 0.7552 | -1019.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -17.77 | 245.95 | 44.71 | 240.25 | 0.7740 | -321.0 | -383.3 | |
| 0.00 | 1.67 | 0.00 | 1.29 | -17.35 | 245.64 | 44.40 | 240.58 | 0.7690 | -744.0 | -612.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
