SDO HMI 2014-09-29 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.55 | 29.78 | 3.85 | 20.18 | -13.94 | 162.98 | -37.15 | 119.71 | 0.6812 | 278.9 | 169.2 | |
|
previous
or next observation for the same group /

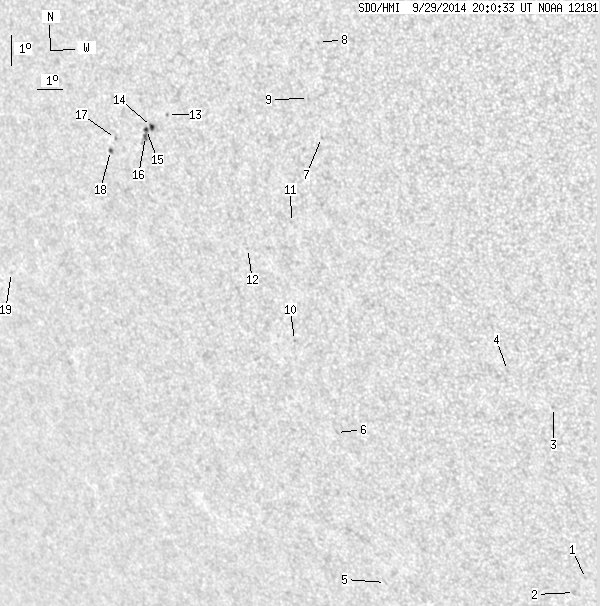

back to the solar disc SDO HMI 2014-09-29 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.75 | -24.19 | 173.23 | -26.90 | 140.63 | 0.6530 | 727.0 | 505.6 | |
| 0.00 | 1.94 | 0.00 | 1.28 | -24.71 | 172.69 | -27.44 | 140.65 | 0.6624 | 706.0 | 608.0 | |
| 0.00 | 1.59 | 0.00 | 0.98 | -18.39 | 173.23 | -26.90 | 133.91 | 0.5982 | 582.0 | 428.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -17.25 | 171.78 | -28.35 | 130.98 | 0.6029 | 524.0 | 497.6 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -24.84 | 165.34 | -34.79 | 134.29 | 0.7257 | 541.0 | 393.8 | |
| 0.00 | 1.41 | 0.00 | 0.97 | -19.75 | 164.87 | -35.26 | 128.13 | 0.6930 | 566.0 | 492.3 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -10.16 | 166.10 | -34.03 | 116.25 | 0.6164 | 624.0 | 502.5 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -7.20 | 166.30 | -33.83 | 111.88 | 0.5974 | 532.0 | 445.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -8.97 | 165.76 | -34.37 | 114.25 | 0.6138 | 597.0 | 521.7 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -16.79 | 163.94 | -36.19 | 123.78 | 0.6824 | 726.0 | 564.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -12.95 | 164.58 | -35.55 | 119.16 | 0.6512 | 489.0 | 448.9 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -13.91 | 162.71 | -37.42 | 119.22 | 0.6781 | 504.0 | 486.4 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -9.87 | 160.25 | -39.88 | 112.34 | 0.6853 | -608.0 | -518.2 | |
| 1.76 | 10.40 | 1.21 | 7.18 | -10.30 | 159.54 | -40.59 | 112.55 | 0.6955 | -652.7 | -478.5 | |
| 1.32 | -14.00 | 0.91 | -14.00 | -10.41 | 159.32 | -40.81 | 112.59 | 0.6985 | -586.5 | 999999 | |
| 1.32 | -14.00 | 0.91 | -14.00 | -10.63 | 159.24 | -40.89 | 112.85 | 0.7004 | -706.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.87 | -10.80 | 157.99 | -42.14 | 112.44 | 0.7154 | 794.0 | 659.8 | |
| 1.15 | 2.29 | 0.82 | 1.63 | -11.20 | 157.71 | -42.42 | 112.82 | 0.7203 | 627.8 | 479.0 | |
| 0.00 | 0.70 | 0.00 | 0.57 | -15.54 | 152.30 | -47.83 | 115.63 | 0.7942 | -594.0 | -526.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
