SDO HMI 2014-09-29 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.36 | 0.00 | 6.42 | -19.23 | 202.59 | 4.12 | 186.17 | 0.4618 | 138.8 | 94.1 | |
|
previous
or next observation for the same group /

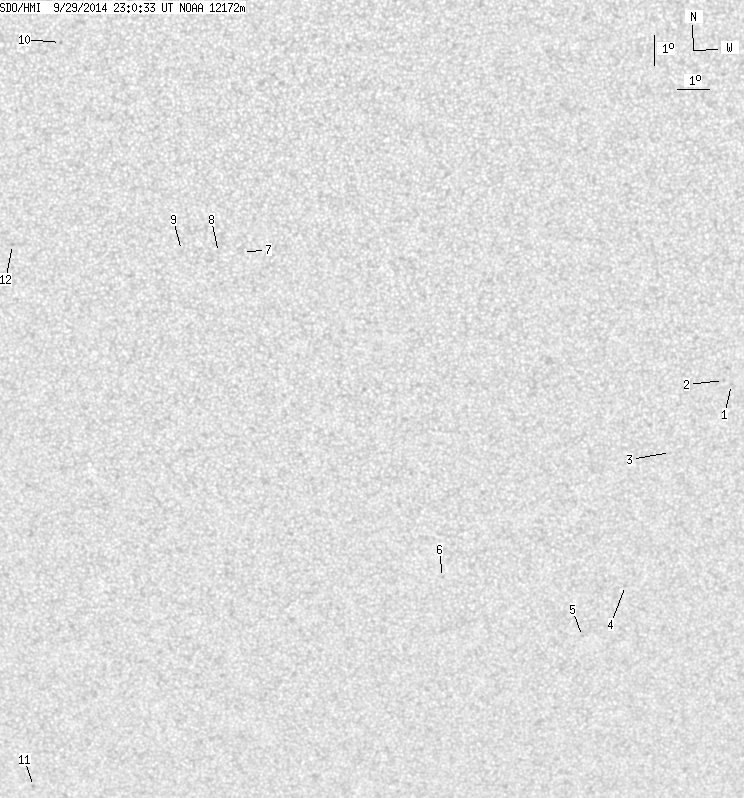

back to the solar disc SDO HMI 2014-09-29 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.45 | -18.16 | 214.12 | 15.64 | 211.52 | 0.4920 | 713.0 | 574.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -18.02 | 213.84 | 15.37 | 211.23 | 0.4880 | 712.0 | 552.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -20.38 | 212.31 | 13.84 | 206.32 | 0.5078 | 562.0 | 446.8 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -24.93 | 211.25 | 12.78 | 200.98 | 0.5624 | 619.0 | 487.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -26.71 | 209.97 | 11.49 | 197.94 | 0.5801 | 564.0 | 474.8 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -24.51 | 205.08 | 6.60 | 191.40 | 0.5313 | 744.0 | 561.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.58 | 198.47 | 0.00 | 180.00 | 0.3496 | -18.0 | -2.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.58 | 197.73 | -0.74 | 177.93 | 0.3498 | -5.0 | -2.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.52 | 196.59 | -1.88 | 174.74 | 0.3500 | -16.0 | -7.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -7.01 | 192.97 | -5.50 | 158.20 | 0.2574 | -742.0 | -631.7 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -32.19 | 191.01 | -7.46 | 170.08 | 0.6401 | -651.0 | -531.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.37 | 191.36 | -7.11 | 160.69 | 0.3659 | -816.0 | -615.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
