SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.36 | 711.45 | 141.21 | 759.74 | 15.24 | 260.93 | 63.01 | 283.74 | 0.8857 | -20.5 | -92.5 | |
|
previous
or next observation for the same group /

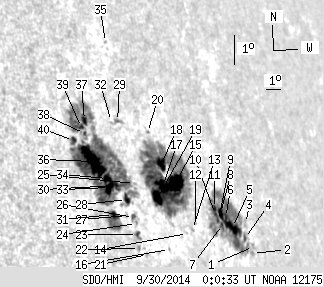

back to the solar disc SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 2.94 | 12.70 | 267.07 | 69.15 | 281.01 | 0.9303 | 286.0 | 266.2 | |
| 0.00 | 1.76 | 0.00 | 2.34 | 12.51 | 266.87 | 68.95 | 280.79 | 0.9291 | 149.0 | 135.9 | |
| 0.00 | 3.35 | 0.00 | 4.42 | 13.44 | 266.82 | 68.90 | 281.79 | 0.9286 | 180.0 | 204.1 | |
| 1.06 | 132.84 | 1.38 | 165.84 | 13.01 | 266.48 | 68.56 | 281.32 | 0.9265 | -167.1 | -243.4 | |
| 12.16 | -4.00 | 15.35 | -4.00 | 13.44 | 265.72 | 67.80 | 281.75 | 0.9215 | -454.2 | 999999 | |
| 1.06 | -4.00 | 1.32 | -4.00 | 13.78 | 265.35 | 67.43 | 282.12 | 0.9190 | -244.7 | 999999 | |
| 0.26 | -4.00 | 0.32 | -4.00 | 13.61 | 265.00 | 67.08 | 281.91 | 0.9166 | -651.0 | 999999 | |
| 3.97 | -4.00 | 4.88 | -4.00 | 13.94 | 265.04 | 67.12 | 282.28 | 0.9168 | -509.0 | 999999 | |
| 0.26 | -4.00 | 0.32 | -4.00 | 13.75 | 264.77 | 66.85 | 282.07 | 0.9150 | -746.0 | 999999 | |
| 1.76 | -4.00 | 2.14 | -4.00 | 13.95 | 264.65 | 66.73 | 282.28 | 0.9141 | -726.8 | 999999 | |
| 1.41 | -4.00 | 1.71 | -4.00 | 14.13 | 264.68 | 66.76 | 282.48 | 0.9143 | -723.3 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.30 | 13.85 | 263.05 | 65.13 | 282.13 | 0.9029 | -484.0 | -492.7 | |
| 0.00 | 1.67 | 0.00 | 1.89 | 13.69 | 262.75 | 64.83 | 281.96 | 0.9007 | -509.0 | -424.2 | |
| 0.00 | 0.71 | 0.00 | 0.79 | 13.61 | 262.34 | 64.42 | 281.86 | 0.8976 | -439.0 | -389.8 | |
| 19.92 | 236.33 | 22.20 | 258.24 | 15.16 | 262.31 | 64.39 | 283.59 | 0.8973 | -601.1 | -392.0 | |
| 0.00 | 0.79 | 0.00 | 0.84 | 13.27 | 260.91 | 62.99 | 281.45 | 0.8867 | 276.0 | 246.2 | |
| 10.75 | -15.00 | 11.61 | -15.00 | 15.16 | 261.39 | 63.47 | 283.59 | 0.8903 | -1004.2 | 999999 | |
| 8.81 | -15.00 | 9.61 | -15.00 | 15.84 | 261.70 | 63.78 | 284.36 | 0.8927 | -615.2 | 999999 | |
| 9.61 | -15.00 | 10.19 | -15.00 | 14.88 | 260.88 | 62.96 | 283.27 | 0.8864 | 187.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.33 | 16.85 | 261.31 | 63.39 | 285.49 | 0.8898 | -627.0 | -555.0 | |
| 0.00 | 1.59 | 0.00 | 1.61 | 13.27 | 259.44 | 61.52 | 281.44 | 0.8748 | -122.0 | -94.7 | |
| 0.00 | 2.12 | 0.00 | 2.12 | 13.50 | 259.02 | 61.10 | 281.70 | 0.8713 | 412.0 | 319.1 | |
| 1.06 | 3.97 | 1.06 | 3.98 | 13.92 | 259.08 | 61.16 | 282.18 | 0.8718 | 565.6 | 458.5 | |
| 0.00 | 1.06 | 0.00 | 1.07 | 14.25 | 259.17 | 61.25 | 282.56 | 0.8725 | 405.0 | 378.6 | |
| 0.00 | 1.50 | 0.00 | 1.53 | 15.44 | 259.62 | 61.70 | 283.92 | 0.8764 | -275.0 | -263.2 | |
| 0.00 | 2.82 | 0.00 | 2.83 | 14.45 | 259.06 | 61.14 | 282.79 | 0.8717 | 637.0 | 461.3 | |
| 0.00 | 0.79 | 0.00 | 0.79 | 14.54 | 258.72 | 60.80 | 282.90 | 0.8688 | 510.0 | 446.4 | |
| 3.53 | 226.55 | 3.52 | 220.25 | 15.02 | 258.89 | 60.97 | 283.45 | 0.8703 | 400.7 | 178.7 | |
| 0.00 | 3.00 | 0.00 | 3.06 | 17.37 | 259.56 | 61.64 | 286.13 | 0.8762 | 142.0 | 4.8 | |
| 1.85 | -28.00 | 1.83 | -28.00 | 15.50 | 258.48 | 60.56 | 284.00 | 0.8669 | 274.9 | 999999 | |
| 3.17 | 21.24 | 3.08 | 20.59 | 14.66 | 257.89 | 59.97 | 283.05 | 0.8618 | 791.0 | 458.8 | |
| 0.00 | 0.97 | 0.00 | 0.98 | 17.41 | 259.18 | 61.26 | 286.19 | 0.8732 | 231.0 | 194.0 | |
| 6.61 | -28.00 | 6.44 | -28.00 | 15.48 | 258.03 | 60.10 | 284.00 | 0.8631 | 717.8 | 999999 | |
| 5.29 | -28.00 | 5.15 | -28.00 | 15.76 | 258.04 | 60.11 | 284.32 | 0.8632 | 550.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.29 | 19.78 | 260.28 | 62.36 | 288.84 | 0.8827 | 317.0 | 234.9 | |
| 33.06 | -28.00 | 31.69 | -28.00 | 16.34 | 257.45 | 59.53 | 285.02 | 0.8584 | 721.4 | 999999 | |
| 3.26 | 58.71 | 3.14 | 56.25 | 17.61 | 257.56 | 59.63 | 286.49 | 0.8597 | 389.0 | 238.9 | |
| 0.71 | -37.00 | 0.68 | -37.00 | 17.22 | 257.35 | 59.43 | 286.05 | 0.8578 | 485.1 | 999999 | |
| 1.85 | -37.00 | 1.77 | -37.00 | 17.42 | 257.26 | 59.34 | 286.28 | 0.8571 | 653.8 | 999999 | |
| 1.94 | 4.76 | 1.82 | 4.46 | 17.08 | 256.60 | 58.67 | 285.92 | 0.8512 | 711.6 | 628.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
