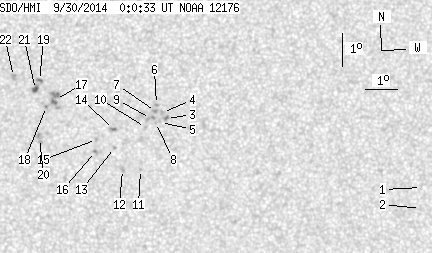

SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 48.56 | 0.84 | 24.47 | 7.66 | 208.10 | 10.17 | 276.14 | 0.1773 | -342.3 | 35.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | 5.16 | 218.36 | 20.44 | 266.54 | 0.3500 | -11.0 | -6.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 4.53 | 218.31 | 20.39 | 264.73 | 0.3503 | 6.0 | -5.0 | |
| 0.00 | 2.20 | 0.00 | 1.12 | 7.50 | 210.40 | 12.48 | 274.07 | 0.2157 | -1035.0 | -820.5 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 7.69 | 210.28 | 12.36 | 274.96 | 0.2139 | -797.0 | -695.7 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 7.39 | 210.21 | 12.29 | 273.57 | 0.2125 | -693.0 | -535.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 7.93 | 210.10 | 12.18 | 276.17 | 0.2112 | -819.0 | -636.1 | |
| 0.00 | 2.20 | 0.00 | 1.12 | 7.72 | 210.07 | 12.14 | 275.19 | 0.2103 | -1007.0 | -854.6 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 7.39 | 210.06 | 12.13 | 273.61 | 0.2098 | -926.0 | -730.5 | |
| 0.00 | 3.70 | 0.00 | 1.87 | 7.52 | 209.90 | 11.98 | 274.24 | 0.2074 | -940.0 | -841.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 7.25 | 209.74 | 11.82 | 272.97 | 0.2044 | -954.0 | -675.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 5.99 | 209.56 | 11.63 | 266.73 | 0.2018 | -792.0 | -619.1 | |
| 0.00 | 1.67 | 0.00 | 0.85 | 6.01 | 209.00 | 11.08 | 266.58 | 0.1924 | -588.0 | -453.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 6.67 | 208.77 | 10.85 | 270.03 | 0.1878 | -868.0 | -686.2 | |
| 0.00 | 2.56 | 0.00 | 1.29 | 7.21 | 208.75 | 10.83 | 272.93 | 0.1875 | -970.0 | -792.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 6.93 | 208.22 | 10.30 | 271.39 | 0.1784 | -907.0 | -732.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 6.57 | 208.19 | 10.26 | 269.36 | 0.1778 | -1213.0 | -913.8 | |
| 0.00 | 9.34 | 0.00 | 4.69 | 8.15 | 206.99 | 9.07 | 279.20 | 0.1588 | 548.0 | 847.5 | |
| 0.00 | 1.85 | 0.00 | 0.93 | 7.95 | 206.71 | 8.79 | 278.13 | 0.1536 | 1005.0 | 844.4 | |
| 0.00 | 2.29 | 0.00 | 1.15 | 8.73 | 206.52 | 8.59 | 283.42 | 0.1526 | 944.0 | 811.5 | |
| 0.00 | 4.76 | 0.00 | 2.38 | 6.99 | 206.48 | 8.56 | 271.89 | 0.1484 | 670.0 | 685.8 | |
| 1.67 | 3.44 | 0.84 | 1.72 | 8.46 | 206.39 | 8.47 | 281.84 | 0.1495 | 1176.4 | 881.4 | |
| 0.00 | 3.70 | 0.00 | 1.85 | 8.87 | 205.72 | 7.80 | 285.57 | 0.1398 | 884.0 | 700.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
