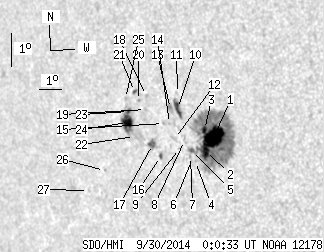

SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.25 | 250.88 | 49.38 | 179.83 | -1.32 | 152.18 | -45.74 | 98.38 | 0.7259 | 431.6 | 315.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.00 | 187.58 | 22.64 | 132.76 | -1.31 | 152.98 | -44.94 | 98.56 | 0.7165 | 1153.1 | 405.6 | |
| 7.23 | -1.00 | 5.16 | -1.00 | -1.76 | 152.62 | -45.30 | 99.09 | 0.7218 | 776.3 | 999999 | |
| 3.09 | -1.00 | 2.20 | -1.00 | -1.10 | 152.60 | -45.32 | 98.18 | 0.7206 | 659.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -2.11 | 152.18 | -45.74 | 99.43 | 0.7278 | 318.0 | 248.6 | |
| 1.15 | -1.00 | 0.83 | -1.00 | -1.79 | 152.02 | -45.90 | 98.96 | 0.7290 | 542.1 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.08 | -2.09 | 152.01 | -45.91 | 99.37 | 0.7298 | 226.0 | 246.8 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -1.97 | 151.97 | -45.95 | 99.20 | 0.7300 | 332.0 | 339.1 | |
| 0.00 | 2.12 | 0.00 | 1.53 | -1.51 | 151.72 | -46.20 | 98.51 | 0.7318 | 302.0 | 293.5 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -1.77 | 151.50 | -46.42 | 98.80 | 0.7351 | 395.0 | 361.3 | |
| 5.38 | 9.34 | 3.90 | 6.78 | -0.56 | 151.44 | -46.48 | 97.16 | 0.7331 | 592.6 | 333.9 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -0.11 | 151.44 | -46.48 | 96.55 | 0.7322 | 490.0 | 366.8 | |
| 0.00 | 3.00 | 0.00 | 2.19 | -1.48 | 151.29 | -46.63 | 98.36 | 0.7369 | 42.0 | 164.9 | |
| 0.00 | 4.67 | 0.00 | 3.41 | -0.59 | 151.13 | -46.79 | 97.13 | 0.7368 | -77.0 | -71.2 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -1.05 | 151.08 | -46.84 | 97.73 | 0.7384 | -444.0 | -389.3 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -1.07 | 150.81 | -47.11 | 97.69 | 0.7415 | 334.0 | 295.2 | |
| 1.06 | 2.12 | 0.78 | 1.57 | -2.09 | 150.65 | -47.27 | 99.00 | 0.7456 | 396.4 | 238.0 | |
| 3.00 | 6.70 | 2.23 | 4.99 | -1.75 | 150.30 | -47.62 | 98.47 | 0.7488 | 588.2 | 185.7 | |
| 0.00 | 1.41 | 0.00 | 1.05 | -0.29 | 150.07 | -47.85 | 96.48 | 0.7485 | -222.0 | -194.6 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -0.72 | 150.02 | -47.91 | 97.04 | 0.7499 | -213.0 | -184.7 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -0.47 | 149.70 | -48.22 | 96.65 | 0.7530 | -729.0 | -597.6 | |
| 0.88 | 2.12 | 0.66 | 1.59 | -0.21 | 149.52 | -48.40 | 96.27 | 0.7546 | -537.5 | -514.4 | |
| 0.00 | 1.50 | 0.00 | 1.13 | -1.58 | 149.50 | -48.42 | 98.05 | 0.7575 | -241.0 | -227.1 | |
| 1.50 | 20.01 | 1.14 | 15.19 | -0.84 | 149.24 | -48.68 | 97.03 | 0.7589 | -806.1 | -455.0 | |
| 12.96 | -23.00 | 9.84 | -23.00 | -1.18 | 149.19 | -48.73 | 97.46 | 0.7602 | -726.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.00 | -0.46 | 149.11 | -48.81 | 96.51 | 0.7597 | -481.0 | -356.3 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -2.74 | 148.06 | -49.86 | 99.20 | 0.7759 | 626.0 | 470.0 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -3.43 | 147.26 | -50.67 | 99.85 | 0.7859 | 468.0 | 410.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
