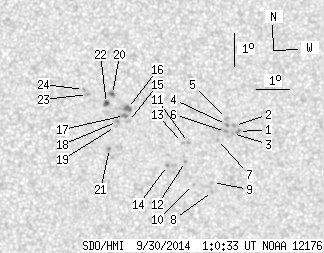

SDO HMI 2014-09-30 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.03 | 39.22 | 1.02 | 19.79 | 7.71 | 208.14 | 10.77 | 276.08 | 0.1874 | -95.0 | 26.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.17 | 7.51 | 210.44 | 13.07 | 274.01 | 0.2257 | -1002.0 | -780.1 | |
| 0.00 | 1.85 | 0.00 | 0.94 | 7.70 | 210.32 | 12.95 | 274.86 | 0.2239 | -803.0 | -686.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 7.46 | 210.25 | 12.88 | 273.80 | 0.2225 | -854.0 | -736.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 7.73 | 210.07 | 12.70 | 275.09 | 0.2197 | -995.0 | -892.4 | |
| 0.00 | 2.29 | 0.00 | 1.16 | 7.91 | 210.08 | 12.71 | 275.91 | 0.2200 | -783.0 | -569.9 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 7.52 | 210.03 | 12.66 | 274.14 | 0.2189 | -1015.0 | -840.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 7.29 | 209.78 | 12.41 | 273.10 | 0.2144 | -752.0 | -657.4 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 5.73 | 209.58 | 12.21 | 265.74 | 0.2120 | -688.0 | -598.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 6.00 | 209.59 | 12.22 | 267.02 | 0.2117 | -758.0 | -533.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 5.96 | 209.00 | 11.63 | 266.57 | 0.2018 | -775.0 | -610.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.22 | 208.88 | 11.51 | 272.89 | 0.1991 | -929.0 | -776.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 6.65 | 208.77 | 11.40 | 270.01 | 0.1973 | -800.0 | -706.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.23 | 208.70 | 11.32 | 272.94 | 0.1959 | -727.0 | -534.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 6.55 | 208.22 | 10.84 | 269.38 | 0.1878 | -1079.0 | -932.2 | |
| 0.00 | 1.85 | 0.00 | 0.93 | 7.89 | 207.05 | 9.68 | 277.20 | 0.1686 | 827.0 | 633.6 | |
| 0.00 | 4.23 | 0.00 | 2.13 | 8.29 | 207.03 | 9.66 | 279.52 | 0.1691 | 968.0 | 890.8 | |
| 0.00 | 2.29 | 0.00 | 1.15 | 8.08 | 206.93 | 9.56 | 278.37 | 0.1670 | 1149.0 | 977.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 7.90 | 206.71 | 9.34 | 277.46 | 0.1629 | 1106.0 | 875.1 | |
| 0.00 | 0.71 | 0.00 | 0.35 | 7.75 | 206.65 | 9.28 | 276.58 | 0.1615 | 819.0 | 637.1 | |
| 0.62 | 2.03 | 0.31 | 1.02 | 8.72 | 206.58 | 9.21 | 282.54 | 0.1628 | 967.7 | 822.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 7.10 | 206.45 | 9.08 | 272.53 | 0.1574 | 1066.0 | 860.9 | |
| 1.41 | 3.00 | 0.71 | 1.50 | 8.45 | 206.39 | 9.02 | 281.12 | 0.1587 | 1104.8 | 842.1 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 8.73 | 205.81 | 8.44 | 283.64 | 0.1500 | 852.0 | 613.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 8.88 | 205.69 | 8.32 | 284.82 | 0.1486 | 840.0 | 729.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
