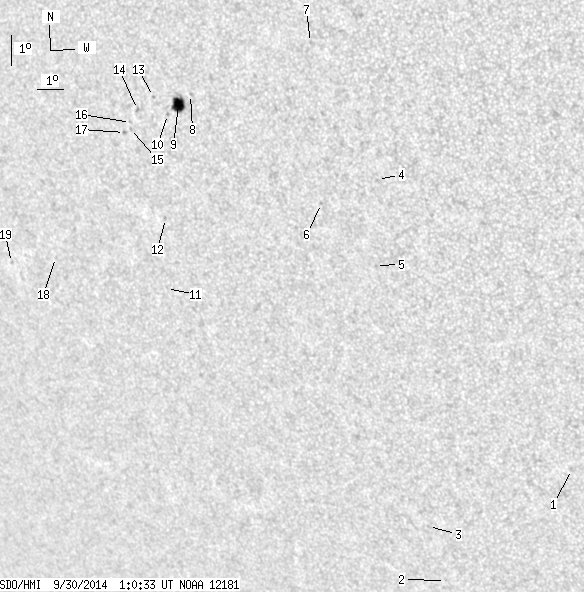

SDO HMI 2014-09-30 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.05 | 37.05 | 8.57 | 24.48 | -12.05 | 160.54 | -36.83 | 117.21 | 0.6633 | -73.2 | 145.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.21 | -21.24 | 172.41 | -24.96 | 139.44 | 0.6072 | 555.0 | 432.3 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -25.41 | 166.78 | -30.59 | 138.41 | 0.6948 | 573.0 | 481.0 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -23.53 | 166.64 | -30.73 | 136.26 | 0.6799 | 530.0 | 446.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -12.08 | 166.97 | -30.40 | 121.85 | 0.5848 | 499.0 | 483.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -14.85 | 166.50 | -30.87 | 125.40 | 0.6108 | 709.0 | 506.2 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -12.97 | 164.82 | -32.55 | 121.39 | 0.6165 | 679.0 | 569.3 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -7.91 | 165.03 | -32.34 | 113.96 | 0.5821 | 590.0 | 460.5 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -9.85 | 160.37 | -37.00 | 113.90 | 0.6509 | -825.0 | -486.9 | |
| 13.05 | 18.16 | 8.57 | 11.93 | -10.20 | 159.86 | -37.51 | 114.09 | 0.6588 | -762.9 | -167.3 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -10.54 | 159.38 | -37.99 | 114.30 | 0.6663 | -672.0 | -526.2 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -16.17 | 158.26 | -39.11 | 121.04 | 0.7094 | 483.0 | 411.4 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -13.88 | 158.72 | -38.65 | 118.40 | 0.6916 | -677.0 | -591.8 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -10.02 | 158.91 | -38.46 | 113.30 | 0.6692 | 675.0 | 624.4 | |
| 0.00 | 1.68 | 0.00 | 1.13 | -10.48 | 158.22 | -39.15 | 113.55 | 0.6796 | 773.0 | 621.3 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -11.10 | 157.84 | -39.53 | 114.19 | 0.6870 | 557.0 | 448.2 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -10.91 | 157.87 | -39.50 | 113.95 | 0.6858 | 577.0 | 430.9 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -11.25 | 157.58 | -39.79 | 114.24 | 0.6908 | 642.0 | 460.3 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -15.53 | 153.79 | -43.58 | 117.67 | 0.7523 | -607.0 | -533.2 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -15.87 | 151.76 | -45.61 | 117.05 | 0.7741 | -467.0 | -344.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
